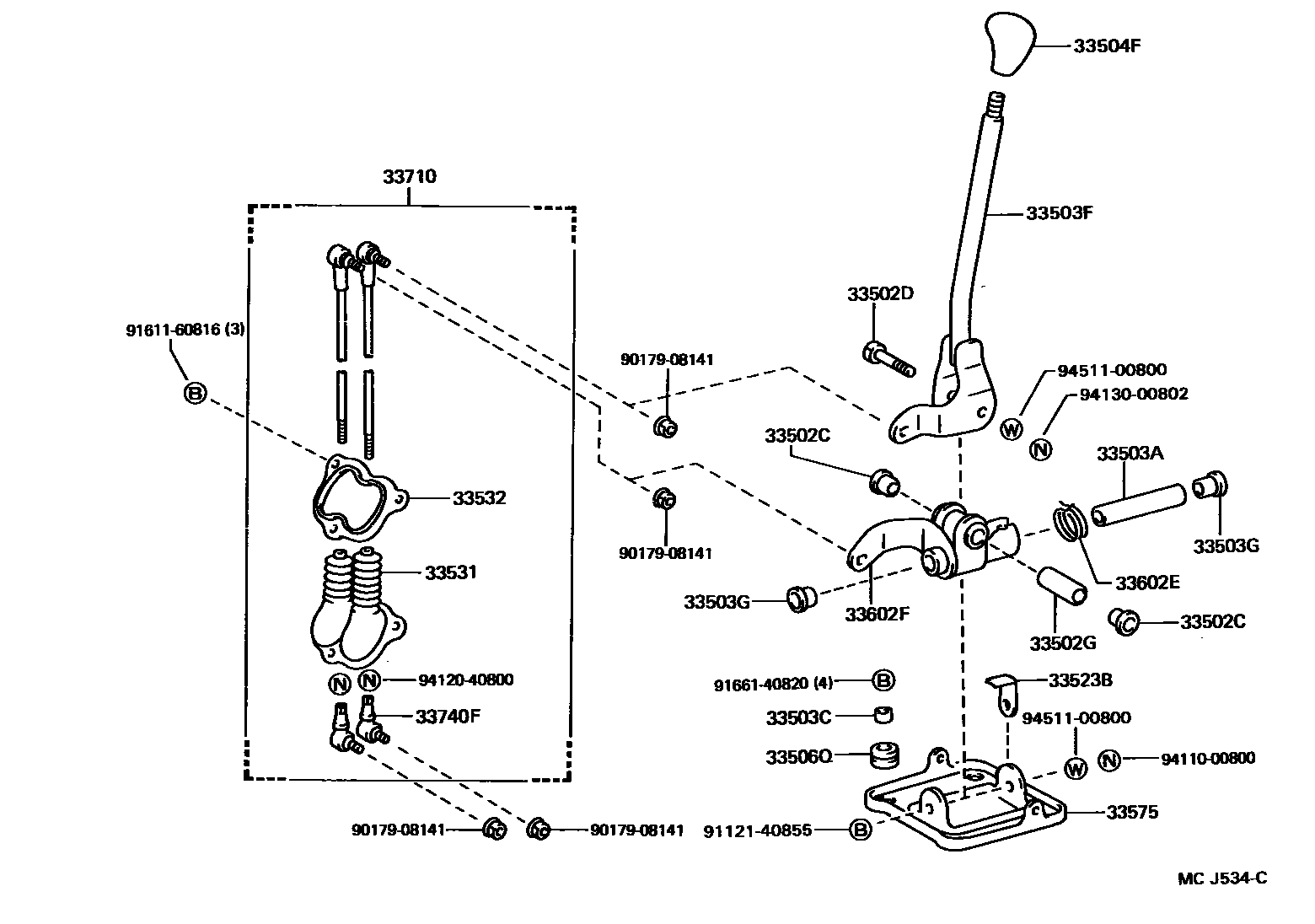

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-26060iLH112,RZH112,113..4FC198908-199008

sub33502-26061

sub90189-05126

main33502-26061iLH112,RZH112,113..4FC199008-199508

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13007iLH10#,11#,RZH10#,11#..5F198908-199508

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08140iLH10#,11#,RZH10#,11#..5F198908-199508

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iLH10#,11#,RZH10#,11#..5F198908-199508

main90387-08102iLH112,RZH112,113..4FC198908-199508

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iLH10#,11#,RZH10#,11#..5F198908-199508

33503CCOLLAR(FOR SHIFT LEVER SUB-ASSY)

main90387-09039iLH10#,11#,RZH10#,11#..5F198908-199508

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-26010iLH10#,11#,RZH10#,11#..5F198908-199508

main33055-26030iLH112,RZH112,113..4FC198908-199508

main33055-26040iRZH103..DX;LH102,11#,RZH113,119..5D..03S..5F198908-199108

NORWAY SPEC

33503GBUSH(FOR SHIFT LEVER)

main90386-13007iLH10#,11#,RZH10#,11#..5F198908-199508

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14050-53iLH10#,11#,RZH10#,11#..5F198908-199308

GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14070-B1iLH10#,11#,RZH10#,11#..5F199308-199508

GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-24010-48iRZH103..DX198908-199308

HIGH GRADE PACKAGE,GRAY,TRIM1#

sub33504-24010

main33542-32050-23iLH112,RZH112,113..4FC198908-199508

GRAY,TRIM1#

sub33542-32050

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90480-13014iLH10#,11#,RZH10#,11#..5F198908-199508

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main33523-26050iLH10#,11#,RZH10#,11#..5F198908-199508

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-26020iLH10#,11#,RZH10#,11#..5F198908-199508

main33531-26030iLH112,RZH112,113..4FC198908-199508

33532PLATE, DUST BOOT

main33532-26030iLH10#,11#,RZH10#,11#198908-199508

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-26090iLH10#,11#,RZH10#,11#..5F198908-199508

33602ESPRING, TORSION (FOR SELECT LEVER)

main90508-32033iLH10#,11#,RZH10#,11#..5F198908-199508

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-26090iLH10#,11#,RZH10#,11#..5F198908-199508

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-26190iLH10#,11#,RZH10#,11#..5F198908-199508

main33710-26200iLH112,RZH112,113..4FC198908-199508

33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

main33740-26020iLH112,RZH112,113..4FC198908-199508

9017908141

main90179-08141

9112140855

main91121-40855

9161160816

main91611-60816

9166140820

main91661-40820

9411000800

main94110-00800

9412040800

main94120-40800

9413000802

main94130-00802

9451100800

main94511-00800

26 parts on this diagram · 4 diagrams in section
