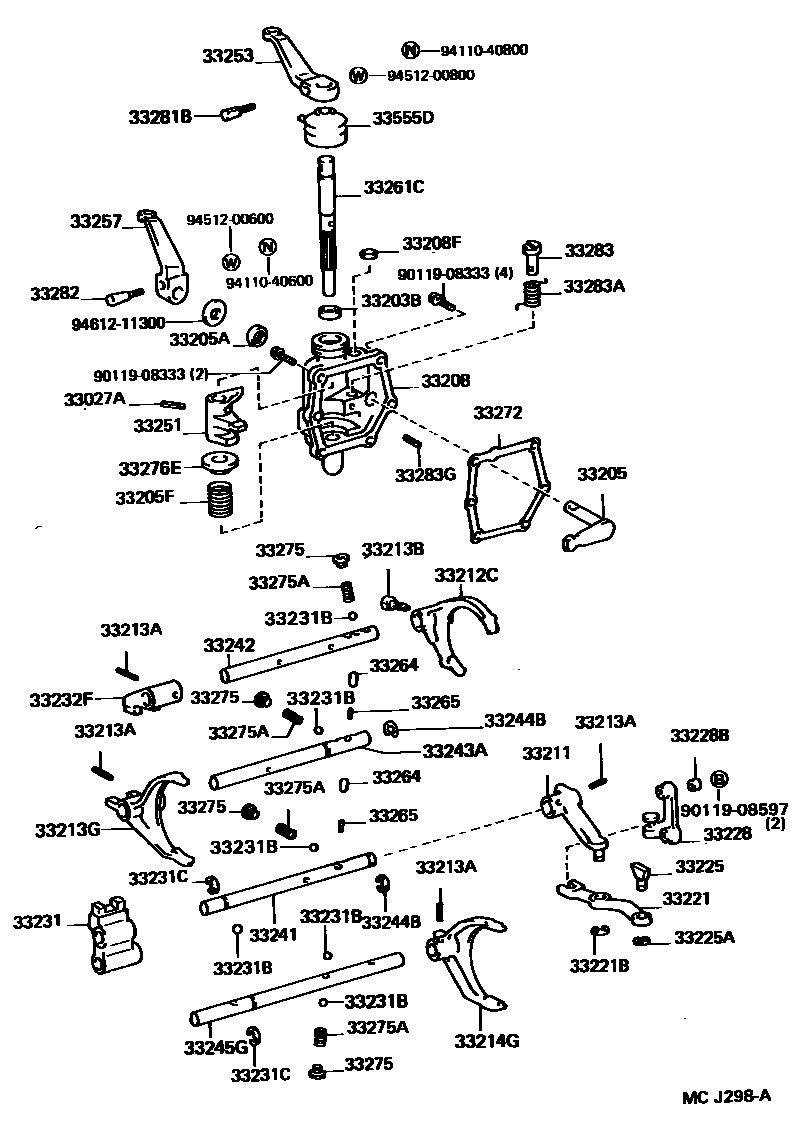

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)
33211FORK, REVERSE SHIFT
33212CFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231BBALL, REVERSE SHIFT RESTRICT
33231CRING(FOR REVERSE SHIFT HEAD)
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33253LEVER, SHIFT OUTER, NO.1
33257LEVER, SELECT OUTER
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=21.6,PIN,L=21.6,PIN
L=13.6,OD=9.5,L=13.6,PIN
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
33272GASKET, SHIFT LEVER SHAFT HOUSING
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18,PORTUGAL SPEC
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.2,L=20.2
L=31,L=31
33276ESEAT, SELECT SPRING, NO.1
33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33282PIN, LEVER LOCK, NO.2
33283PIN, REVERSE RESTRICT, NO.1
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33555DBOOT, SHIFT LEVER
9011908333
main90119-08333
9011908597
main90119-08597
9411040600
main94110-40600
9411040800
main94110-40800
9451200600
main94512-00600
9451200800
main94512-00800
9461211300
main94612-11300
51 parts on this diagram · 2 diagrams in section
