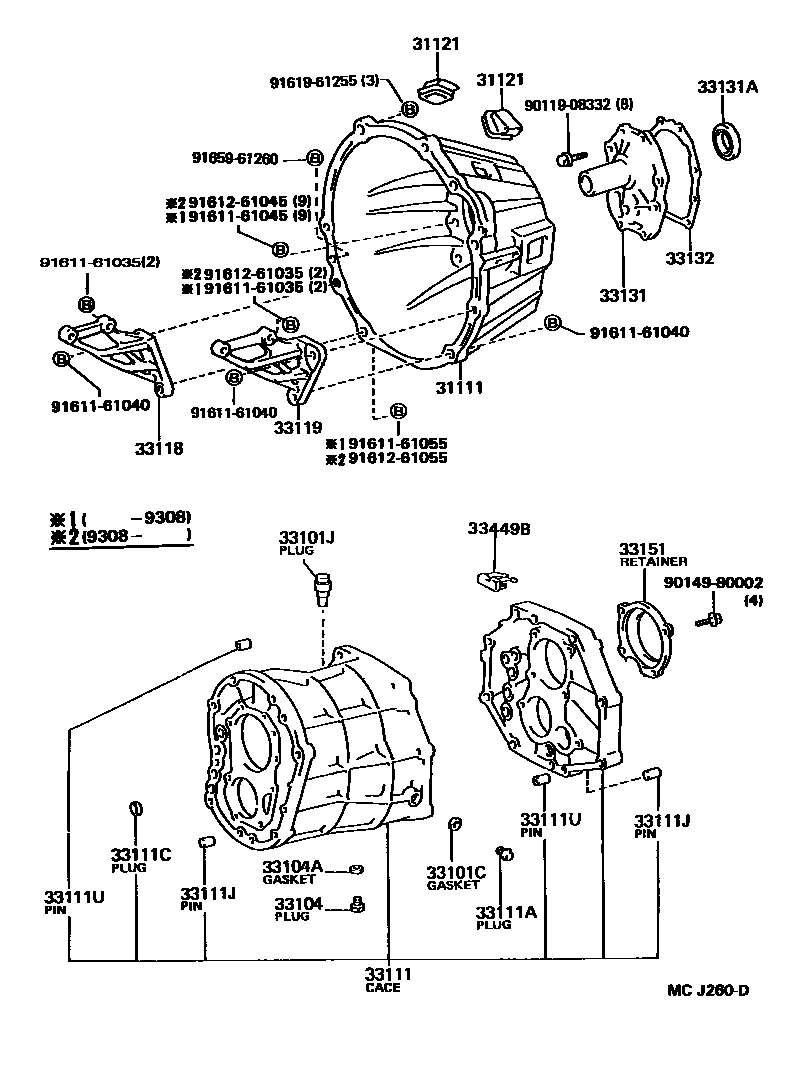

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G5# 0002 1G5#

31111HOUSING, CLUTCH

main31111-26030iRZH10#,11#..5F198908-199508

sub31111-26031

main31111-26040iLH10#,11#..5F198908-199508

31121COVER, CLUTCH HOUSING, NO.1

main31121-26020iRZH10#,11#..5F198908-199508

LH

main31121-30040iRZH10#,11#..5F198908-199309

RH

sub31121-35020

main31121-35020iRZH10#,11#..5F199309-199508

RH

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLH10#,11#,RZH10#,11#..5F198908-199508

33101JPLUG, BREATHER

main90930-03085iLH10#,11#,RZH10#,11#..5F198908-199508

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLH10#,11#,RZH10#,11#..5F199503-199508

main90341-18057iLH10#,11#,RZH10#,11#..5F198908-199503

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLH10#,11#,RZH10#,11#..5F198908-199508

33111CASE, MANUAL TRANSMISSION

main33101-28020iLH10#,11#,RZH10#,11#..5F198908-199508

sub33101-35060

sub90341-18032

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iLH10#,11#,RZH10#,11#..5F198908-199508

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLH10#,11#,RZH10#,11#..5F198908-199508

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLH10#,11#,RZH10#,11#..5F198908-199508

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLH10#,11#,RZH10#,11#..5F198908-199508

L=11,OD=11

main90253-15001iLH10#,11#,RZH10#,11#..5F198908-199508

L=14,OD=15

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLH10#,11#..5F198908-199508

main33118-26010iRZH10#,11#..5F198908-199508

sub33118-26011

33119PLATE, STIFFENER, LH(MTM)

main33119-26010iLH10#,11#..5F198908-199508

sub33119-25060

main33119-26020iRZH10#,11#..5F198908-199505

sub33119-26021

main33119-26021iRZH10#,11#..5F199505-199508

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLH10#,11#,RZH10#,11#..5F198908-199508

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLH10#,11#,RZH10#,11#..5F198908-199007

sub90311-30014

main90311-30014iLH10#,11#,RZH10#,11#..5F199007-199508

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLH10#,11#,RZH10#,11#..5F198908-199508

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iLH10#,11#,RZH10#,11#..5F198908-199508

33449BMAGNET, TRANSMISSION

main33449-26010iLH10#,11#,RZH10#,11#..5F198908-199508

9011908332

main90119-08332

9014980002

main90149-80002

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9161161055

main91611-61055

9161261035

main91612-61035

9161261045

main91612-61045

9161261055

main91612-61055

9161961255

main91619-61255

9165961260

main91659-61260

29 parts on this diagram · 2 diagrams in section
