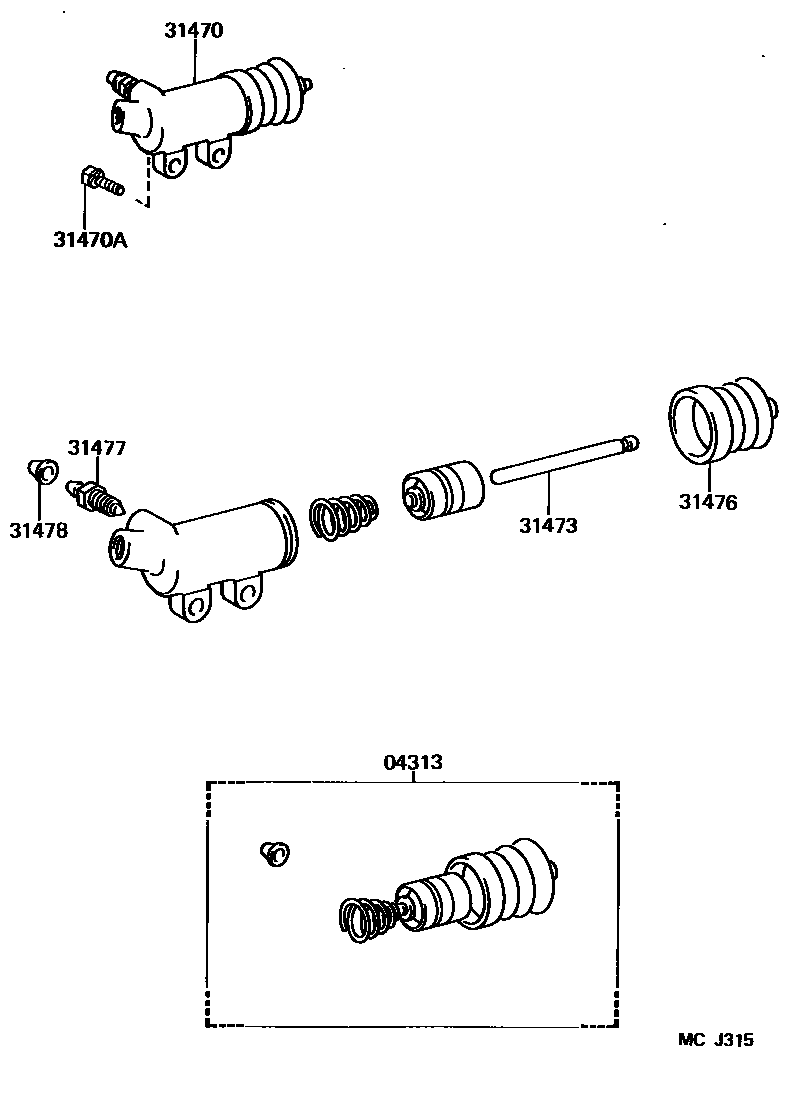

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iLH10#,11#,RZH10#,11#..5F198908-199410

main04313-17010iLH10#,11#..5F199410-199508

main04313-22020iRZH10#,11#..5F198908-199006

sub04313-12030

main04313-22030iRZH10#,11#..5F199410-199508

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-26060iLH10#,11#..5F198908-199508

sub31470-26061

main31470-26090iRZH10#,11#..5F199410-199504

sub31470-26110

main31470-26110iRZH10#,11#..5F199504-199508

main31470-28040iRZH10#,11#..5F198908-199410

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iLH10#,11#,RZH10#,11#..5F198908-199508

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLH10#,11#..5F198908-199508

main31473-32010iLH10#,11#..5F198908-199508

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLH10#,11#,RZH10#,11#..5F198908-199508

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLH10#,11#,RZH10#,11#..5F198908-199508

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLH10#,11#,RZH10#,11#..5F198908-199508

7 parts on this diagram · 1 diagram in section
