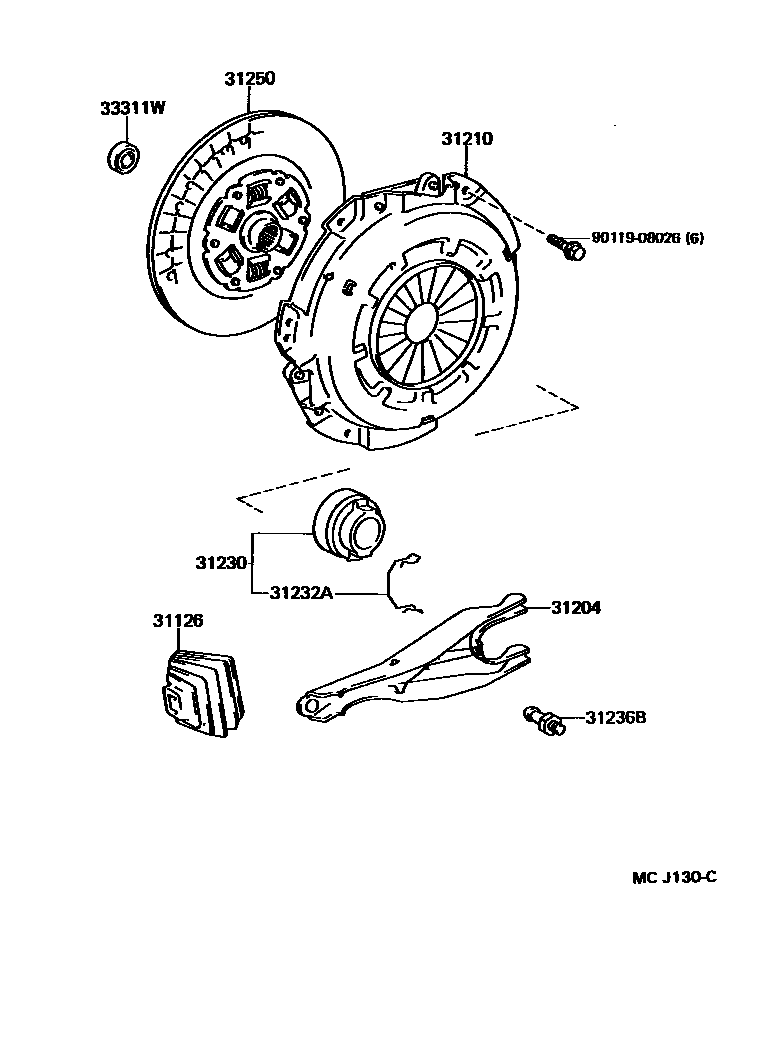

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLH10#,11#..5F198908-199508

main31126-26020iRZH10#,11#..5F198908-199508

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iLH10#,11#,RZH10#,11#..5F198908-199508

31210COVER ASSY, CLUTCH

main31210-26140iRZH102,103,112,113,115..5F198908-199508

sub31210-22161

main31210-26150iRZH109,119198908-199508

sub31210-26110

main31210-35090iLH10#,11#..5F198908-199108

sub31210-22100

main31210-35100iLH10#,11#..5F199108-199508

sub31210-35101

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLH10#,11#..5F198908-199508

sub31230-35071

main31230-35090iRZH10#,11#..5F198908-199508

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLH10#,11#,RZH10#,11#..5F198908-199508

TYPE A

main31232-35030iLH10#,11#..5F198908-199508

TYPE B

main31232-35040iRZH10#,11#..5F198911-199508

TYPE C

31236BSUPPORT, RELEASE FORK

main31236-30060iLH10#,11#,RZH10#,11#..5F198908-199508

31250DISC ASSY, CLUTCH

main31250-22280iRZH102,103,112,113,115..5F198908-199508

sub31250-28160

main31250-26052iLH102,112..5F198908-199108

sub31250-26053

main31250-26160iRZH109,119198908-199508

sub31250-35380

main31250-35220iLH10#,11#..5F198908-199505

sub31250-35221

main31250-35221iLH10#,11#..5F199505-199508

sub31250-35222

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLH10#,11#,RZH10#,11#..5F198908-199508

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section
