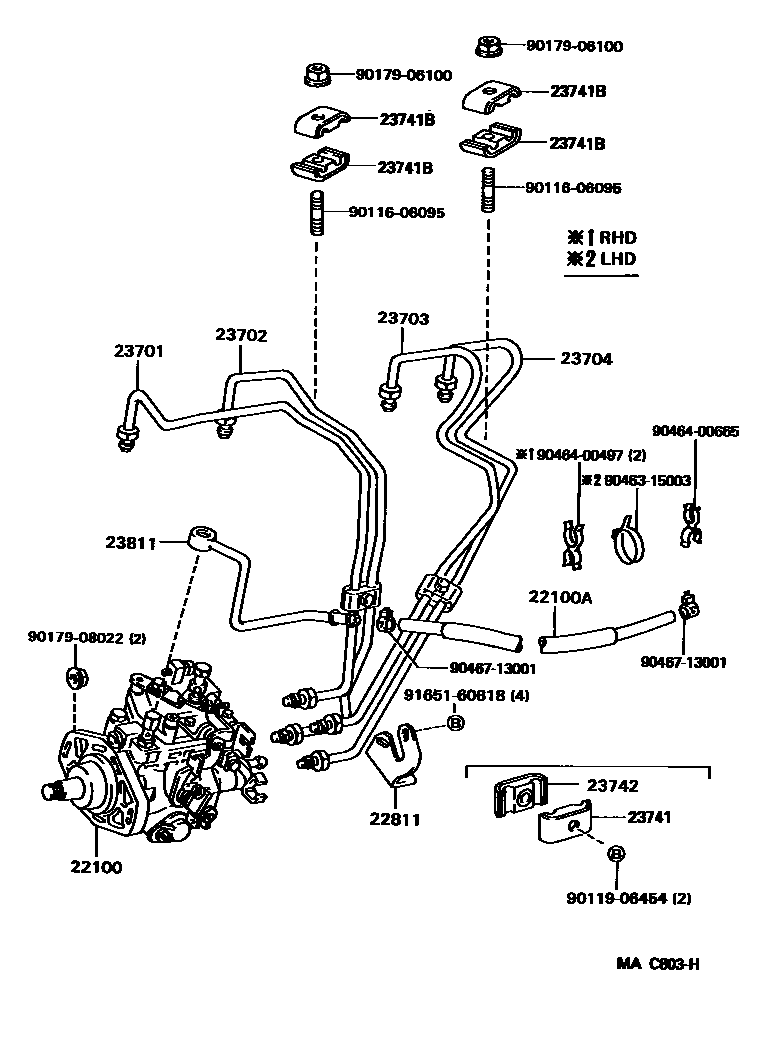

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B110i2L..LH112..4FC198908-199308

main22100-5B170i2L..LH10#,11#..5F198908-199308

main22100-5B320i2L..LH102..DX199209-199308

NORWAY SPEC

sub22100-5B360

main22100-5B320i2L..LH102..DX199209-199308

DENMARK SPEC

sub22100-5B360

main22100-5B320i2L..LH102..DX199209-199308

FINLAND OR NORWAY SPEC

sub22100-5B360

main22100-5B320i2L..LH102..DX199209-199308

DENMARK OR FINLAND SPEC

sub22100-5B360

main22100-5B320i2L..LH102..DX199209-199308

DENMARK OR FINLAND OR NORWAY SPEC

sub22100-5B360

main22100-5B320i2L..LH102..DX;2L..LH10#,118..LHD..SP;2L..LH112..LHD..(03S,09S)..5F199108-199209

EMISSION CONTROL (US'90)

sub22100-5B360

main22100-5B320i2L..LH10#,11#..5F199308-199508

sub22100-5B360

main22100-5B330i2L..LH112..4FC199108-199209

EMISSION CONTROL (US'90)

main22100-5B330i2L..LH112..4FC199308-199508

main22100-5B330i2L..LH112..4FC199209-199308

DENMARK OR FINLAND OR NORWAY SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-54040i2L..LH10#,11#199101-199508

main90447-14072i2L..LH10#,11#199001-199101

sub23271-54040

main95333-08040i2L..LH10#,11#198908-199001

L=400

sub95337-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54041i2L..LH108;2L..LH102,112..LHD..4D..SP199209-199308

FINLAND OR NORWAY SPEC

sub22811-54042

main22811-54041i2L..LH102..DX;2L..LH10#,118..LHD..SP;2L..LH112..LHD..(03S,09S)..5F199108-199209

EMISSION CONTROL(US'90)

sub22811-54042

main22811-54041i2L..LH102..DX199209-199308

NORWAY SPEC

sub22811-54042

main22811-54041i2L..LH102..DX199209-199308

DENMARK SPEC

sub22811-54042

main22811-54041i2L..LH102..DX199209-199308

DENMARK OR FINLAND SPEC

sub22811-54042

main22811-54041i2L..LH102..DX199209-199308

DENMARK OR FINLAND OR NORWAY SPEC

sub22811-54042

main22811-54041i2L..LH10#,11#198908-199508

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i2L..LH10#,11#198908-199508

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i2L..LH10#,11#198908-199508

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i2L..LH10#,11#198908-199508

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i2L..LH10#,11#198908-199508

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L..LH10#,11#198908-199508

23741BCLAMP, INJECTION PIPE

main23741-56010i2L..LH10#,11#198908-199508

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2L..LH10#,11#198908-199508

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54170i2L..LH10#,11#198908-199002

sub23811-54171

main23811-54171i2L..LH10#,11#199002-199108

sub23811-54172

main23811-54172i2L..LH10#,11#199108-199508

9011606095

main90116-06095

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9046315003

main90463-15003

9046400497

main90464-00497

9046400665

main90464-00665

9046713001

main90467-13001

9165160818

main91651-60818

20 parts on this diagram · 1 diagram in section
