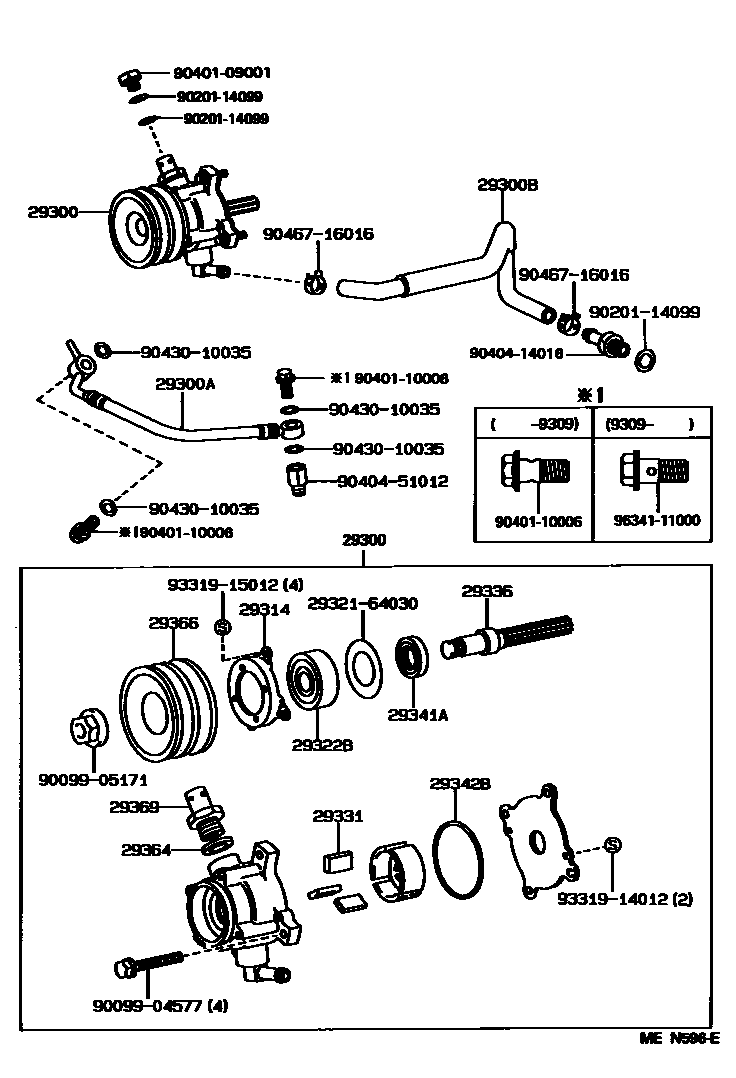

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54100i2L..LH102..RHD198908-199108

sub29300-54130

main29300-54110i2L..LH112;2L..LH10#,118..LHD198908-199108

sub29300-54140

main29300-54120i2L..LH10#,11#199302-199508

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02110i2L..LH10#,11#198908-199301

main90923-02118i2L..LH10#,11#199301-199508

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54050i2L..LH10#,11#198908-199508

29314RING, STOP

main29314-64030i2L..LH10#,11#198908-199508

29322BBEARING, VACUUM PUMP

main90099-10166i2L..LH10#,11#198908-199508

29331BLADE, VACUUM PUMP, A

main29331-64030×3i2L..LH10#,11#198908-199508

29336SHAFT, VACUUM PUMP

main29336-64030i2L..LH10#,11#198908-199008

main29336-64031i2L..LH10#,11#199008-199508

29341ASEAL, OIL

main29341-64030i2L..LH10#,11#198908-199508

29342BRING, O

main29342-64030i2L..LH10#,11#198908-199508

29364WASHER, VACUUM PUMP

main29364-66010i2L..LH10#,11#198908-199508

29366PULLEY, VACUUM PUMP

main29366-54080i2L..LH102..RHD198908-199108

main29366-54110i2L..LH112;2L..LH10#,118..LHD198908-199108

29369VALVE SUB-ASSY, CHECK

main29369-64030i2L..LH10#,11#198908-199508

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

9331914012

main93319-14012

9331915012

main93319-15012

9634111000

main96341-11000

25 parts on this diagram · 1 diagram in section
