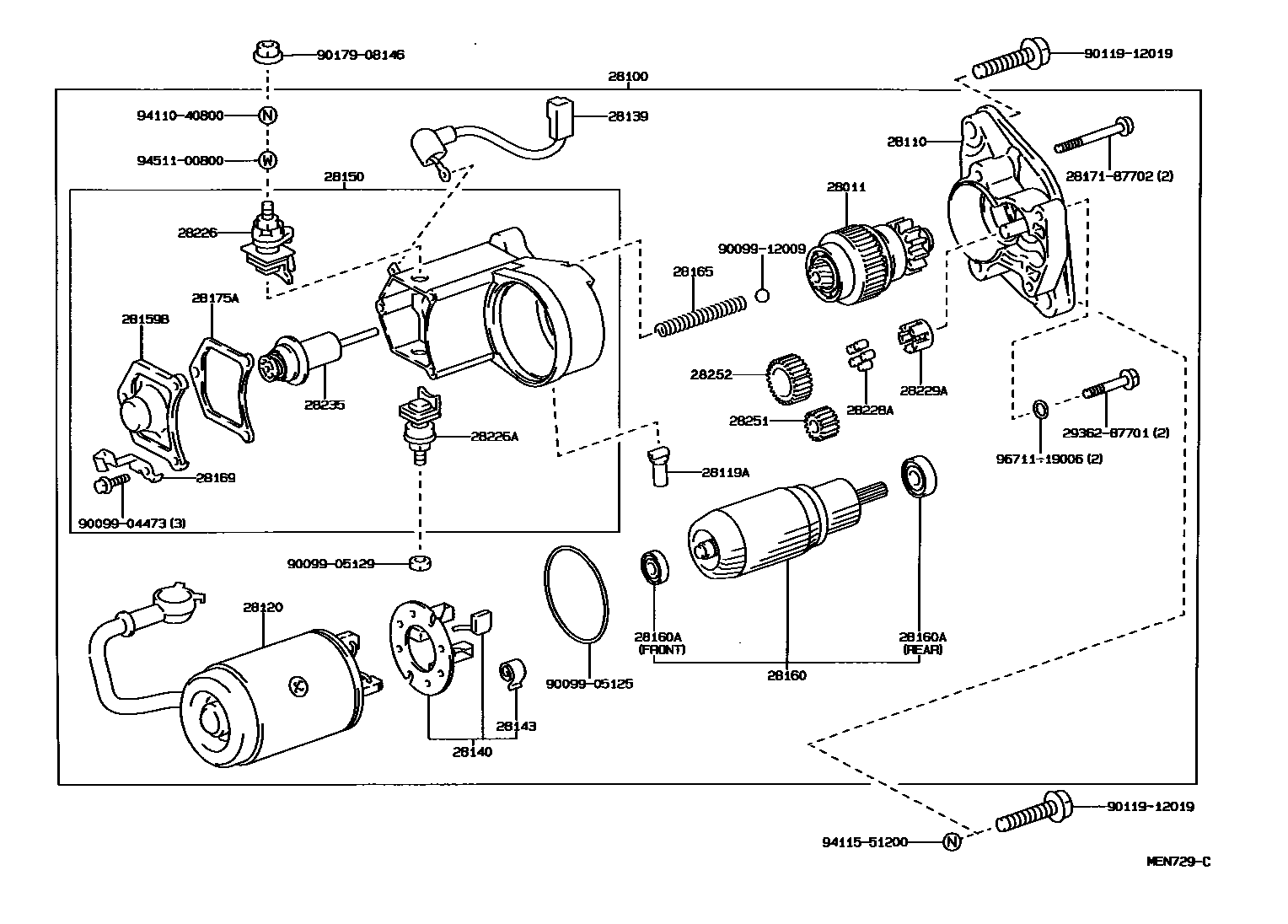

STARTER

0001 112V 2.0KW 0003 112V 2.0KW 0004 112V 2.0KW 0005 112V 2.7KW 0006 112V 1.0KW 0008 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

main28011-54010i2L..LH10#,11#..5F..(DX,STD)198908-199508

COLD SPEC

main28011-54070i2L..LH10#,11#..5F198908-199308

main28011-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28011-76070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28011-76070i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

28100STARTER ASSY

main28100-54070i2L..LH10#,11#..5F198908-199205

12V 2.0KW

sub28100-54180

main28100-54170i2L..LH102,112..5F199205-199308

12V 2.0KW

sub28100-54290

main28100-54220i2L..LH10#,11#..5F198908-199205

12V 2.7KW

sub28100-54210

main28100-54220i2L..LH10#,11#..5F198908-199205

12V 2.7KW,COLD SPEC

sub28100-54210

main28100-54230i2L..LH108,118198909-199205

12V 2.0KW

main28100-54250i2L..LH10#,11#..5F199205-199308

12V 2.7KW

sub28100-54300

main28100-54250i2L..LH10#,11#..5F199205-199308

12V 2.7KW,COLD SPEC

sub28100-54300

main28100-54320i2L..LH10#,11#..5F..(DX,STD)199308-199508

12V 2.7KW,COLD SPEC

main28100-54320i2L..LH10#,11#..5F..(DX,STD)199308-199508

12V 2.7KW

main28100-54350i2L..LH108,118199205-199308

12V 2.0KW

sub28100-54410

main28100-54380i2L..LH102,112..5F..(DX,STD)199308-199508

12V 2.0KW

main28100-54410i2L..LH108,118199308-199508

12V 2.0KW

main28100-75010i1RZ,2RZE..RZH10#,11#198908-199308

12V 1.0KW

sub28100-75050

main28100-75030i1RZ,2RZE..RZH10#,11#198908-199205

12V 1.4KW,COLD SPEC

sub28100-75050

main28100-75050i1RZ,2RZE..RZH10#,11#199205-199308

12V 1.4KW,COLD SPEC

sub28100-75060

main28100-75070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199308-199508

12V 1.0KW

main28100-75090i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

12V 1.4KW

sub28100-75091

main28100-75090i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

12V 1.4KW,COLD SPEC

sub28100-75091

28110HOUSING ASSY, STARTER DRIVE

main28110-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28110-75010i1RZ,2RZE..RZH10#,11#198908-199308

main28110-75030i1RZ,2RZE..RZH10#,11#198908-199205

COLD SPEC

main28110-75050i1RZ,2RZE..RZH10#,11#199205-199308

COLD SPEC

main28110-75070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199308-199508

main28110-75090i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199308-199508

COLD SPEC

main28115-54011i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC

main28115-54070i2L..LH10#,11#..5F198908-199308

28119COVER, STARTER END FRAME

main28119-47070i2L..LH112..4FC198908-199008

COLD SPEC

main28199-54190i2L..LH102..GL;2L..LH112..4FC199008-199508

COLD SPEC

28119ACOVER, STARTER END FRAME

main28119-46080i2L..LH108,118199205-199308

sub28199-46080

main28199-46080i2L..LH10#,11#..5F..(DX,STD)199008-199508

COLD SPEC

main28199-74110i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28199-77090i2L..LH10#,11#198908-199308

28120YOKE ASSY, STARTER

main28120-15090i1RZ,2RZE..RZH10#,11#198908-199205

COLD SPEC

main28120-26071i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

main28120-54070i2L..LH102,112..5F198908-199308

main28120-54230i2L..LH108,118198909-199308

main28120-54380i2L..LH102,112..5F..(DX,STD)199308-199508

main28120-54410i2L..LH108,118199308-199508

main28120-56081i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC

main28120-66040i2RZE..RZH103..GL;2RZE..RZH113..SDN199402-199508

COLD SPEC

main28120-74070i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199402

main28120-74070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199402

COLD SPEC

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54070i2L..LH102,112..5F198908-199308

main28139-54171i2L..LH108,118199205-199308

main28139-54250i2L..LH102..GL;2L..LH112..4FC199308-199411

COLD SPEC

sub28139-54251

main28139-54251i2L..LH102..GL;2L..LH112..4FC199411-199508

COLD SPEC

sub28139-56290

main28139-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28139-77110i2L..LH112..4FC198908-199308

COLD SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i1RZ,2RZE..RZH10#,11#198908-199205

COLD SPEC

main28140-26070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

main28140-54070i2L..LH10#,11#..5F198908-199308

main28140-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28140-76070i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

main28140-76070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28140-77090i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC

28143SPRING, STARTER BRUSH

main28143-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28143-76060i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199308-199508

COLD SPEC

main90099-17112i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

main90099-17115i2L..LH10#,11#..5F198908-199308

28150SWITCH ASSY, MAGNET STARTER

main28150-41060i1RZ,2RZE..RZH10#,11#198908-199308

main28150-45050i1RZ,2RZE..RZH10#,11#198908-199205

COLD SPEC

main28150-54070i2L..LH10#,11#..5F198908-199308

sub28150-54110

main28150-54181i2L..LH108,118199205-199308

main28150-54220i2L..LH112..4FC198908-199308

COLD SPEC

sub28150-54221

main28150-54320i2L..LH10#,11#..5F..(DX,STD)199308-199508

COLD SPEC

main28150-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28150-75050i1RZ,2RZE..RZH10#,11#199205-199308

COLD SPEC

main28150-75070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199308-199508

main28150-75090i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199402

COLD SPEC

main28150-75130i2RZE..RZH103..GL;2RZE..RZH113..SDN199402-199508

COLD SPEC

28159BCOVER, MAGNET SWITCH

main28159-10040i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199010-199508

main28159-54170i2L..LH10#,11#..5F199010-199308

main28159-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28159-55050i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28159-55050i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

main28159-56310i2L..LH10#,11#..5F..(DX,STD)199010-199508

COLD SPEC

28160ARMATURE ASSY, STARTER

main28160-15091i1RZ,2RZE..RZH10#,11#198908-199205

COLD SPEC

main28160-26071i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

main28160-54071i2L..LH10#,11#..5F198908-199308

main28160-54140i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC

main28160-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28160-74070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28160-74070i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

28160ABEARING, STARTER ARMATURE

main28253-45020i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

FRONT

main28253-54070i2L..LH10#,11#..5F198908-199308

FRONT

main90099-10107i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC,FRONT

main90099-10107i2L..LH10#,11#..5F..(DX,STD)198908-199508

FRONT

main90099-10113i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

REAR

main90099-10119i2L..LH102..GL;2L..LH112..4FC198908-199508

REAR

main90099-10119i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC,REAR

main90099-10131i2L..LH10#,11#..5F198908-199308

REAR

main90099-10143i1RZ,2RZE..RZH10#,11#198908-199205

COLD SPEC,FRONT

main90099-10144i1RZ,2RZE..RZH10#,11#198908-199205

COLD SPEC,REAR

main90099-10196i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

FRONT

main90099-10196i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC,FRONT

main90099-10197i2RZE..RZH103..GL;2RZE..RZH113..SDN;2L..LH10#,11#..5F..(DX,STD)199308-199508

REAR

main90099-10197i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC,REAR

main90099-10208i2L..LH10#,11#..5F..(DX,STD)199308-199508

FRONT

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1RZ,2RZE..RZH112,113;2L,1RZ,2RZE..LH10#,11#,RZH10#,115,119..5F198908-199508

main28165-76070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28165-76070i2RZE..RZH103..GL;2RZE..RZH113..SDN;2L..LH10#,11#..5F..(DX,STD)199308-199508

main28165-77090i2L..LH10#,11#..5F..(DX,STD)198908-199508

COLD SPEC

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199010-199508

main28169-54070i2L..LH10#,11#..5F199010-199308

main28169-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28169-55050i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

main28169-55050i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i1RZ,2RZE..RZH112,113;2L,1RZ,2RZE..LH10#,11#,RZH10#,115,119..5F199010-199508

main28175-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28175-55050i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

main28175-55050i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28175-56310i2L..LH10#,11#..5F..(DX,STD)199010-199508

COLD SPEC

28226STARTER KIT, BATTERY TERMINAL

main28226-54080i2L..LH10#,11#..5F198908-199101

main28226-54250i2L..LH112..4FC198908-199308

COLD SPEC

sub28226-54300

main28226-54320i2L..LH102..GL;2L..LH112..4FC199308-199508

COLD SPEC

main28226-54350i2L..LH10#,11#..5F199101-199308

main28226-54380i2L..LH108,118199308-199508

sub28226-54340

main28226-64200i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

COLD SPEC

sub28226-22050

main28226-70040i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199308-199508

main28226-72080i1RZ,2RZE..RZH10#,11#198908-199308

main28226-76070i1RZ,2RZE..RZH10#,11#199205-199308

COLD SPEC

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54100i2L..LH10#,11#..5F198909-199101

main28226-54220i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC

main28226-72010i1RZ,2RZE..RZH10#,11#198908-199508

main28226-74070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28226-74070i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

28228AROLLER, STARTER CLUTCH

main28228-26040i1RZ,2RZE..RZH103,112,113;2L,1RZ,2RZE..LH10#,11#,RZH102,109,115,119..5F..(DX,STD)198908-199508

main28228-56080i2L..LH10#,11#..5F..(DX,STD)198908-199508

COLD SPEC

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i1RZ,2RZE..RZH112,113;2L,1RZ,2RZE..LH10#,11#,RZH10#,115,119..5F198908-199508

main28229-56080i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC

main28229-74070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28229-74070i2RZE..RZH103..GL;2RZE..RZH113..SDN;2L..LH10#,11#..5F..(DX,STD)199308-199508

28235PLUNGER, MAGNET SWITCH

main28235-17030i2L..LH102..GL;2L..LH112..4FC199010-199508

COLD SPEC

main28235-35080i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

main28235-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28235-55050i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199205-199508

COLD SPEC

main28235-55050i2RZE..RZH103..GL;2RZE..RZH113..SDN199308-199508

28251PINION, STARTER DRIVE

main28251-15090i1RZ,2RZE..RZH10#,11#198908-199205

main28251-54070i2L..LH10#,11#..5F198908-199308

main28254-54380i2L..LH10#,11#..5F..(DX,STD)199308-199508

28252GEAR, STARTER IDLE

main28254-45020i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

main28254-54070i2L..LH10#,11#..5F198908-199308

main28254-64130i2L..LH10#,11#..5F..(DX,STD)199308-199508

main28254-74070i1RZ,2RZE..RZH10#,11#..(DX,STD)..(EUR,FRG)199308-199508

COLD SPEC

main28254-77090i2L..LH102..GL;2L..LH112..4FC198908-199508

COLD SPEC

2817187702BOLT, STARTER

main28171-87702

2936287701

main29362-87701

9009904473

main90099-04473

9009905125

main90099-05125

9009905129

main90099-05129

9009912009

main90099-12009

9011912019

main90119-12019

9017908146

main90179-08146

9411040800

main94110-40800

9411551200

main94115-51200

9451100800

main94511-00800

9671119006

main96711-19006

35 parts on this diagram · 6 diagrams in section
