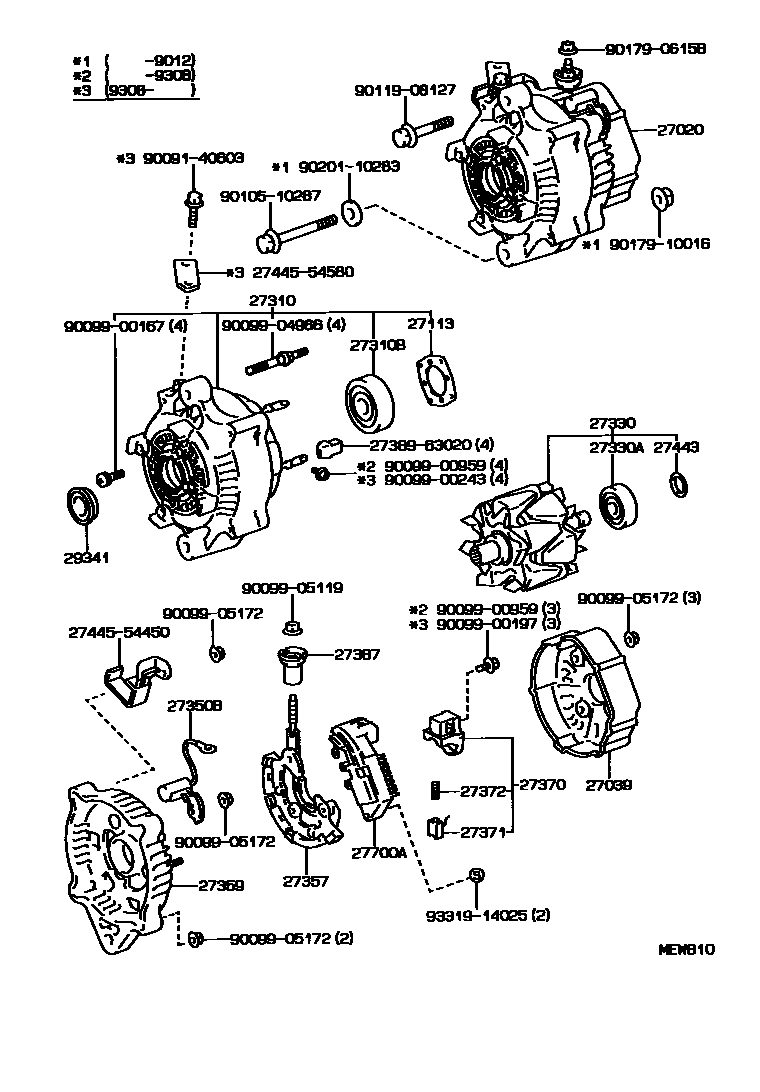

ALTERNATOR

0001 112V 55A,70A 0002 112V 50A 0003 112V 55A,60A 0004 112V 55A,60A

27020ALTERNATOR ASSY

main27060-54030i2L..LH102..RHD198908-199108

12V 55A

main27060-54080i2L..LH10#,11#198908-199308

12V 70A

sub27060-54110

main27060-54210i2L..LH10#,11#199308-199508

12V 70A

sub27060-54150

main27060-72140i1RZ..RZH102,112198908-199205

12V 50A

main27060-75030i2RZE..RZH103,109,11#199308-199508

12V 55A

main27060-75040i1RZ..RZH102199308-199508

12V 60A

main27060-75080i1RZ..RZH112..4FC;2RZE..RZH103,109,113,115,119198908-199308

12V 55A

main27060-75080i2RZE..RZH103,109,113,115,119198908-199105

12V 55A,NORWAY SPEC

main27060-75090i1RZ..RZH102,112199205-199308

12V 60A

27039COVER, ALTERNATOR REAR END

main27039-15170i2L..LH10#,11#199108-199308

sub27039-15171

main27039-72010i2L,2RZE..LH10#,11#,RZH103,109,113,115,119198908-199105

NORWAY SPEC

sub27039-15170

main27039-72010i1RZ..RZH112..4FC;2L,2RZE..LH10#,11#,RZH103,109,113,115,119199010-199308

sub27039-15170

main27039-72150i1RZ..RZH102,112198908-199205

main27039-73020i2L,1RZ,2RZE..LH10#,11#,RZH10#,11#199308-199508

sub27039-16380

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-64130i2L..LH10#,11#198908-199508

main27312-70200i1RZ..RZH112..4FC;2RZE..RZH103,109,113,115,119199010-199508

main27312-70200i2RZE..RZH103,109,113,115,119198908-199105

NORWAY SPEC

main27312-72120i1RZ..RZH102,112198908-199205

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43060i1RZ..RZH102..DX;1RZ..RZH102,112..5D198908-199105

NORWAY SPEC

sub27310-75040

main27310-43060i1RZ..RZH112..4FC;2RZE..RZH103,109,113,115,119199010-199411

sub27310-75040

main27310-54450i2L..LH102..RHD198908-199108

main27310-54500i2L..LH112;2L..LH10#,118..LHD198908-199508

main27310-72170i1RZ..RZH102,112198908-198910

sub27310-72171

main27310-72171i1RZ..RZH102,112..5F198910-199205

main27310-75040i1RZ,2RZE..RZH10#,11#199411-199508

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i2L..LH10#,11#198908-199508

main90099-10170i1RZ..RZH102,112198908-198910

sub90099-10198

main90099-10178i2RZE..RZH103,109,113,115,119198908-199105

NORWAY SPEC

main90099-10178i1RZ..RZH112..4FC;2RZE..RZH103,109,113,115,119199010-199508

main90099-10198i1RZ..RZH102,112198910-199205

sub90099-10229

27330ROTOR ASSY, ALTERNATOR

main27330-64130i2L..LH10#,11#198908-199508

main27330-72101i1RZ..RZH102..DX;1RZ..RZH102,112..5D198908-199105

NORWAY SPEC

main27330-72101i1RZ..RZH112..4FC;2RZE..RZH103,109,113,115,119199010-199508

main27330-72150i1RZ..RZH102,112198908-199205

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1RZ..RZH102..DX;1RZ..RZH102,112..5D198908-199105

NORWAY SPEC

main90099-10140i1RZ..RZH112..4FC;2L,2RZE..LH10#,11#,RZH103,109,113,115,119199010-199508

main90099-10154i1RZ..RZH102,112198908-199205

27350BCONDENSER, ALTERNATOR

main90099-52106i1RZ..RZH102..DX;1RZ..RZH102,112..5D..5F198908-199105

NORWAY SPEC

main90099-52106i1RZ..RZH112..4FC;2RZE..RZH103,109,113,115,119199010-199308

main90099-52115i2L..LH10#,11#198908-199109

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i2L..LH112;2L..LH10#,118..LHD198908-199508

main27357-63060i2L..LH102..RHD;2RZE..RZH103,109,113,115,119198908-199105

NORWAY SPEC

main27357-63060i2RZE..RZH103,109,113,115,119199010-199508

main27357-72150i1RZ..RZH102,112..5F198908-199205

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i2L,2RZE..LH10#,11#,RZH103,109,113,115,119198908-199105

NORWAY SPEC

sub27359-16181

sub27384-16380

main27359-16180i2L,1RZ,2RZE..LH10#,11#,RZH10#,11#199010-199508

sub27359-16181

sub27384-16380

main27359-72150i1RZ..RZH102,112..5F198908-199205

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i2L..LH102..RHD198908-199108

sub27370-54450

main27370-35060i1RZ,2RZE..RZH10#,11#199308-199508

main27370-54450i2L..LH112;2L..LH10#,118..LHD198908-199508

sub27370-58320

main27370-63021i1RZ,2RZE..RZH10#,11#198908-199308

sub27370-70300

27371BRUSH, ALTERNATOR

main27371-63020i1RZ,2RZE..RZH10#,11#198908-199308

sub27371-70300

main27371-70300i2L..LH112;2L..LH10#,118..LHD198908-199508

27372SPRING, ALTERNATOR BRUSH

main27372-63020i2L,1RZ,2RZE..LH10#,11#,RZH10#,11#198908-199508

sub27372-87501

27387INSULATOR, TERMINAL

main27387-10080i1RZ..RZH102,112..5F198908-199205

main27387-70170i1RZ..RZH102..DX;1RZ..RZH102,112..5D198908-199105

NORWAY SPEC

main27387-70170i1RZ..RZH112..4FC;2L,2RZE..LH10#,11#,RZH103,109,113,115,119199010-199508

27443COVER, ALTERNATOR BEARING

main27443-63020i2L,1RZ,2RZE..LH10#,11#,RZH10#,11#198908-199508

27700AREGULATOR ASSY, GENERATOR

main27700-10061i2L..LH10#,11#198908-199201

sub27700-54050

main27700-10080i1RZ..RZH102,112198908-199205

sub27700-66010

main27700-35040i2RZE..RZH103,109,11#199308-199508

main27700-54050i2L..LH10#,11#199201-199308

sub27700-76020

main27700-65010i2L..LH10#,11#199308-199508

sub27700-35040

main27700-66020i1RZ,2RZE..RZH10#,11#199109-199308

main27700-66040i1RZ..RZH102199308-199508

sub27700-75020

main27700-70030i2RZE..RZH103,109,113,115,119198908-199105

NORWAY SPEC

main27700-70030i1RZ..RZH112..4FC;2RZE..RZH103,109,113,115,119199010-199109

29341SEAL, ALTERNATOR OIL

main29341-64130i2L..LH10#,11#198908-199508

2738963020INSULATOR, TERMINAL

main27389-63020

2744554450

main27445-54450

2744554580

main27445-54580

9009140603

main90091-40603

9009900167

main90099-00167

9009900197

main90099-00197

9009900243

main90099-00243

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905172

main90099-05172

9010510287

main90105-10287

9011908127

main90119-08127

9017906158

main90179-06158

9017910016

main90179-10016

9020110283

main90201-10283

9331914025

main93319-14025

34 parts on this diagram · 4 diagrams in section
