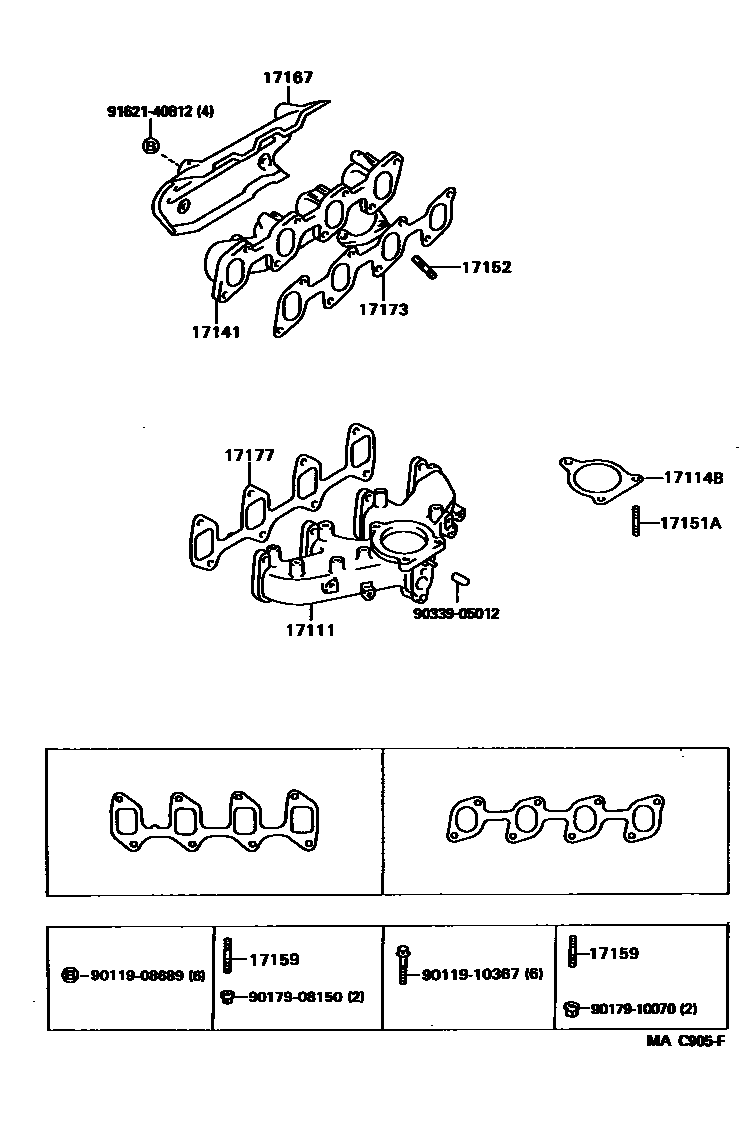

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-54101i2L..LH10#,11#198908-199508

main17101-75010i2RZE..RZH103,109,113,115,119198908-198911

main17101-75011i2RZE..RZH103,109,113,115,119198911-199508

main17111-75010i1RZ..RZH102,112198908-199508

17114BGASKET, INTAKE FLANGE

main17116-54021i2L..LH10#,11#198908-199508

sub17116-54030

17141MANIFOLD, EXHAUST

main17141-54110i2L..LH10#,11#198908-199508

main17141-75010i2RZE..RZH103,109,113,115,119198908-199508

main17141-75020i1RZ..RZH102,112198908-199508

17151ABOLT, STUD(FOR MANIFOLD TO VENTURI)

main90116-08293i2L..LH10#,11#198908-199508

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088i2L..LH10#,11#198908-199508

main90116-10149i1RZ,2RZE..RZH10#,11#198908-199508

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i2L..LH10#,11#198908-199308

INTAKE SIDE

main90116-08220i2L..LH10#,11#199308-199508

INTAKE MANIFOLD

main90116-10141i2L..LH10#,11#199308-199508

EXHAUST MANIFOLD

main90116-10141i2L..LH10#,11#198908-199308

EXHAUST SIDE

main90116-10163i1RZ,2RZE..RZH10#,11#198908-199508

main92132-60820i2L..LH10#,11#199204-199301

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-75010i2RZE..RZH103,109,113,115,119198908-199508

sub17167-75060

main17107-75020i1RZ..RZH102,112198908-199508

sub17167-75110

main17167-54070i2L..LH10#,11#198908-199505

main17167-54110i2L..LH10#,11#199505-199508

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i2L..LH10#,11#198908-199508

main17173-75010i1RZ,2RZE..RZH10#,11#198908-199508

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54020i2L..LH10#,11#198908-199507

sub17177-54021

main17177-54021i2L..LH10#,11#199507-199508

main17177-75010i1RZ,2RZE..RZH10#,11#198908-199506

sub17177-75011

main17177-75011i1RZ,2RZE..RZH10#,11#199506-199508

9011908689

main90119-08689

9011910367

main90119-10367

9017908150

main90179-08150

9017910070

main90179-10070

9033905012

main90339-05012

9162140812

main91621-40812

15 parts on this diagram · 3 diagrams in section
