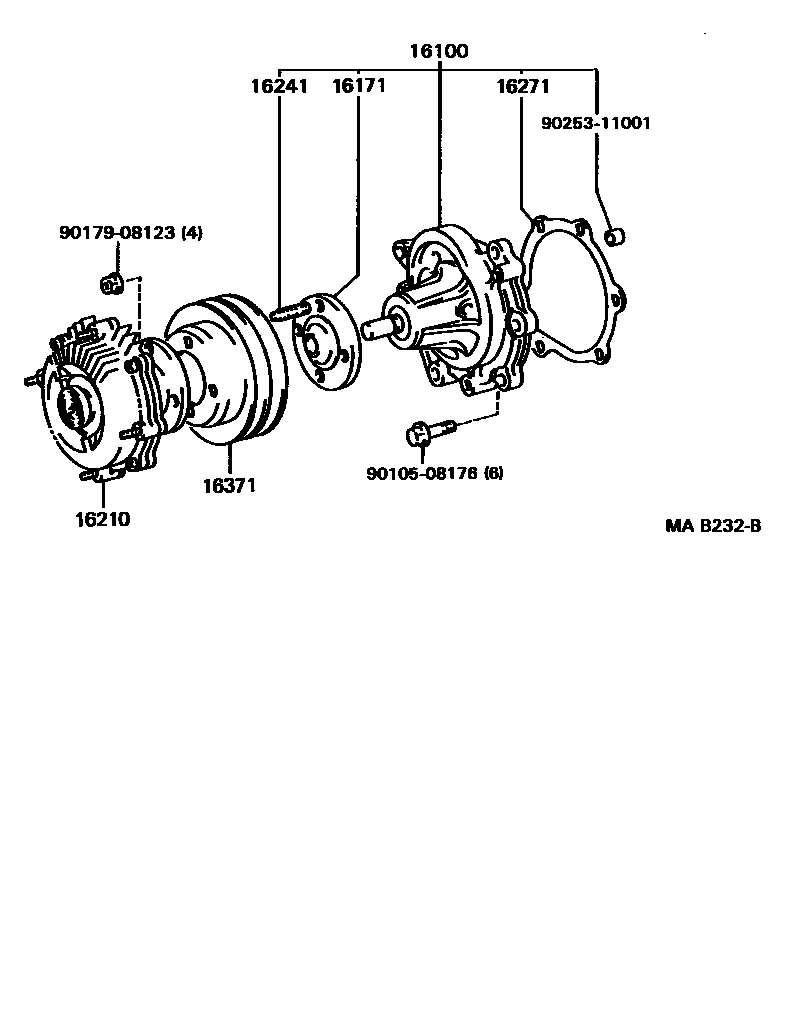

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59155i2L..LH10#,11#198908-199508

sub16100-59255

main16100-79155i1RZ,2RZE..RZH10#,11#198908-199508

sub16100-79455

16171SEAT, WATER PUMP PULLEY

main16171-41170i2L..LH10#,11#198908-199508

16210COUPLING ASSY, FLUID

main16210-54180i2L..LH10#,11#198908-199508

main16210-75020i1RZ,2RZE..RZH10#,11#198908-199508

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main92122-40816i2L..LH10#,11#198908-199508

16271GASKET, WATER PUMP

main16271-54020i2L..LH10#,11#198908-199508

sub16271-54030

16371PULLEY, FAN

main16371-54030i2L..LH10#,11#198908-199508

main16371-75010i1RZ,2RZE..RZH10#,11#198908-199508

sub16371-75020

9010508176

main90105-08176

9017908123

main90179-08123

9025311001

main90253-11001

9 parts on this diagram · 2 diagrams in section
