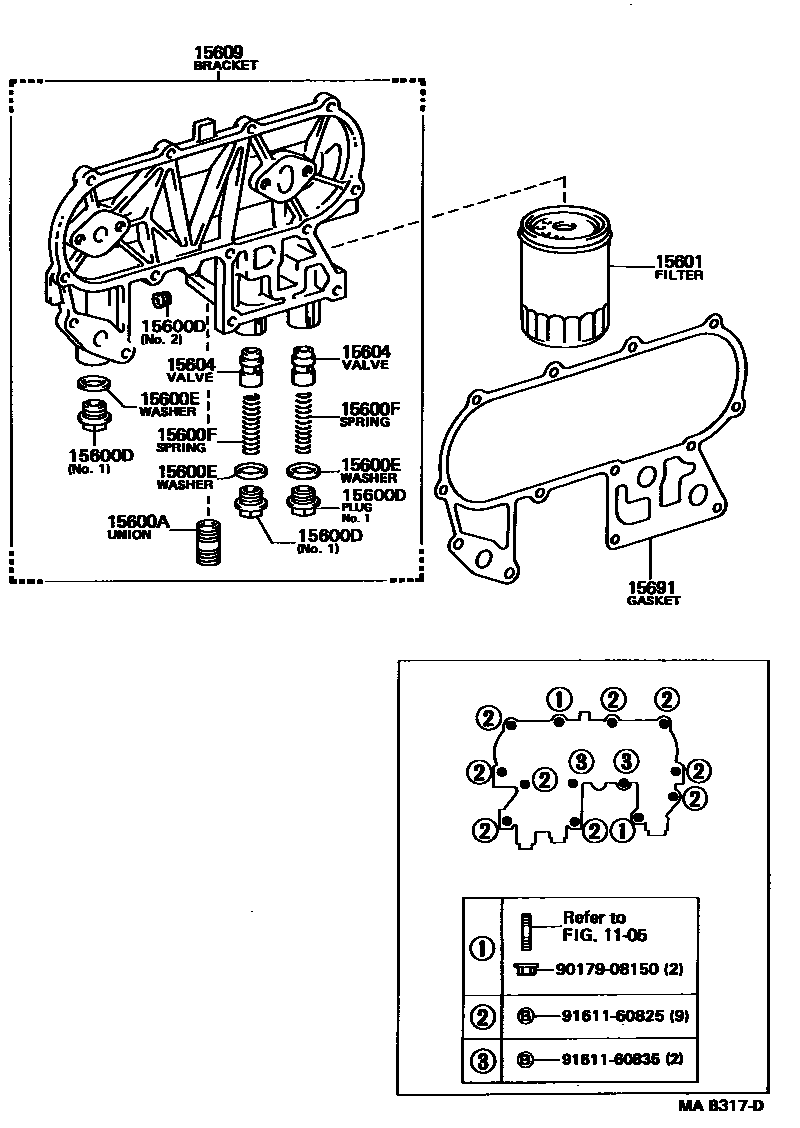

OIL FILTER

0001 1 0002 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54020i2L..LH10#,11#198908-199106

sub15116-54021

main15116-54021i2L..LH10#,11#199106-199508

15600DPLUG(FOR OIL FILTER)

main90072-34402i2L..LH10#,11#198908-199206

NO.2

sub90344-51005

main90341-18015i2L..LH10#,11#198908-199508

NO.1

main90344-51005i2L..LH10#,11#199206-199508

NO.2

15600EWASHER(FOR OIL FILTER)

main90430-18001i2L..LH10#,11#198908-199112

main90430-18021i2L..LH10#,11#199112-199310

main90430-18029i2L..LH10#,11#199310-199508

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026i2L..LH10#,11#198908-199508

15601FILTER SUB-ASSY, OIL

main15600-25010i1RZ,2RZE..RZH10#,11#198908-199408

sub90915-20003

main90915-03006i2L..LH10#,11#198908-199106

sub90915-30002

main90915-20001i1RZ,2RZE..RZH10#,11#199408-199508

sub90915-20003

main90915-30002i2L..LH10#,11#199106-199508

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010i2L..LH10#,11#198908-199508

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54071i2L..LH10#,11#198908-199508

main15609-75010i1RZ,2RZE..RZH10#,11#198908-199508

sub15609-75050

sub90404-19015

15691GASKET, OIL FILTER

main15692-54030i2L..LH10#,11#198908-199508

sub15692-54050

9017908150

main90179-08150

9161160825

main91611-60825

9161160835

main91611-60835

12 parts on this diagram · 2 diagrams in section
