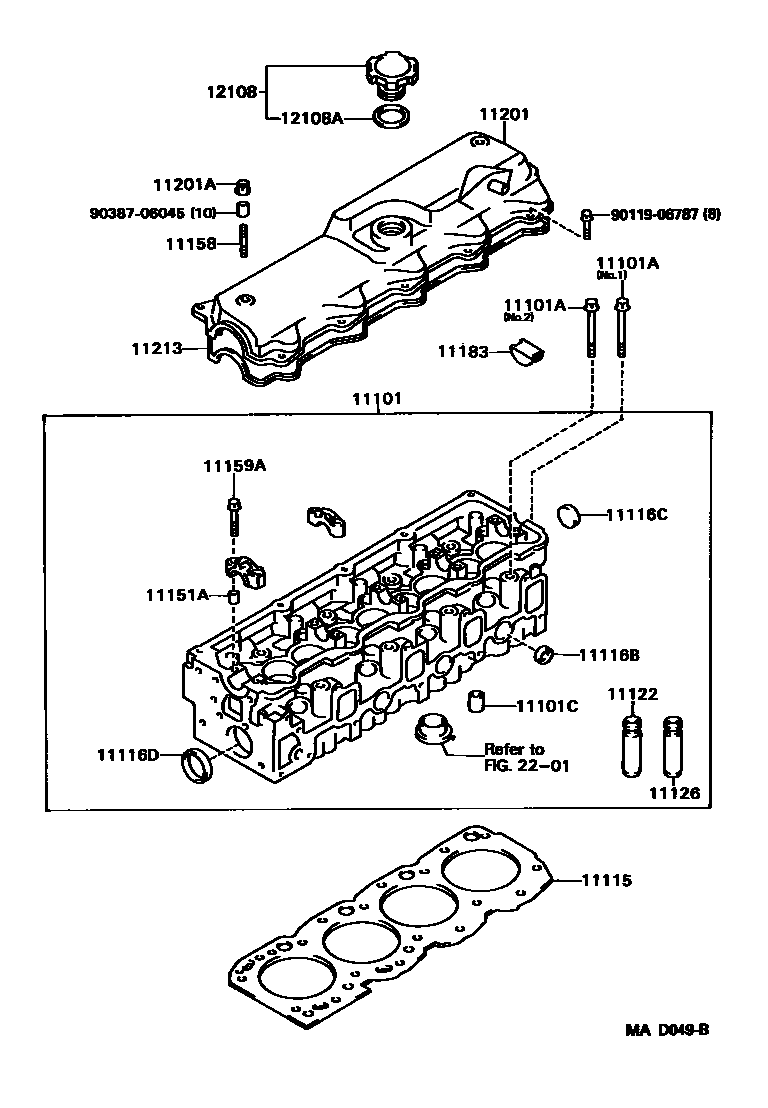

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-54110i2L..LH10#,11#198908-199206

sub11101-54111

main11101-54111i2L..LH10#,11#199206-199508

main11101-75010i1RZ..RZH102,112198908-199506

sub11101-75011

main11101-75011i1RZ..RZH102199506-199508

sub11101-75012

main11101-75020i2RZE..RZH103,109,113,115,119198908-199506

sub11101-75021

main11101-75021i2RZE..RZH103,109,11#199506-199508

sub11101-75022

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02080i2L..LH10#,11#198908-199508

NO.1

main90910-02081i2L..LH10#,11#198908-199508

NO.2

main90910-02091i1RZ,2RZE..RZH10#,11#198908-199508

sub90910-02187

11101CTUBE(FOR CYLINDER HEAD)

main90440-15003i2L..LH10#,11#198908-199508

11115GASKET, CYLINDER HEAD

main11115-54081-B0i2L..LH10#,11#198908-199111

MARK B

sub11115-54082

main11115-54081-D0i2L..LH10#,11#198908-199111

MARK D

sub11115-54082

main11115-54081-F0i2L..LH10#,11#198908-199111

MARK F

sub11115-54082

main11115-54082-B0i2L..LH10#,11#199111-199204

MARK B

sub11115-54083

main11115-54082-D0i2L..LH10#,11#199111-199204

MARK D

sub11115-54083

main11115-54082-F0i2L..LH10#,11#199111-199204

MARK F

sub11115-54083

main11115-54083-B0i2L..LH10#,11#199204-199508

MARK B

sub11115-54084

main11115-54083-D0i2L..LH10#,11#199204-199508

MARK D

sub11115-54084

main11115-54083-F0i2L..LH10#,11#199204-199508

MARK F

sub11115-54084

main11115-75010i1RZ..RZH102,112198908-199508

T=1.25

main11115-75020i2RZE..RZH103,109,113,115,119198908-199508

T=1.25

11116BPLUG, TIGHT, NO.2

main96411-42500i2L..LH10#,11#198908-199508

main96411-62500i2L..LH10#,11#199305-199501

11116CPLUG, TIGHT, NO.3

main96411-42800i1RZ,2RZE..RZH10#,11#198908-199508

main96411-43000i2L..LH10#,11#198908-199508

main96411-63000i2L..LH10#,11#199305-199501

11116DPLUG, TIGHT, NO.4

main96411-44500i2L..LH10#,11#198908-199508

main96411-64500i2L..LH10#,11#199305-199501

11122BUSH, INTAKE VALVE GUIDE

main11122-54020i2L..LH10#,11#198908-199508

STD

sub11122-17020

main11122-75010i1RZ,2RZE..RZH10#,11#198908-199508

STD

main11123-54020i2L..LH10#,11#198908-199508

O/S 0.05

sub11123-17020

main11123-75010i1RZ,2RZE..RZH10#,11#198908-199508

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-54020i2L..LH10#,11#198908-199508

STD

sub11122-17020

main11122-75010i1RZ,2RZE..RZH10#,11#198908-199508

STD

main11123-54020i2L..LH10#,11#198908-199508

O/S 0.05

sub11123-17020

main11123-75010i1RZ,2RZE..RZH10#,11#198908-199508

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11021i2L..LH10#,11#198908-199508

L=8,OD=11

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06089i2L..LH10#,11#198908-199505

S=9 & 9,L=26

main92122-80616i2L..LH10#,11#199505-199508

S=9 & 9,L=25

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i2L..LH10#,11#198908-199508

main90119-08772i1RZ,2RZE..RZH10#,11#198908-199508

11183PLUG, SEMICIRCULAR

main11183-54020i2L..LH10#,11#198908-199508

main11183-62010i1RZ,2RZE..RZH10#,11#198908-199508

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-75010i1RZ,2RZE..RZH10#,11#198908-199508

main11210-54040i2L..LH10#,11#198908-199203

sub11210-54041

main11210-54041i2L..LH10#,11#199203-199508

sub11210-54042

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90179-06171i2L..LH10#,11#198908-199505

main90179-06319i2L..LH10#,11#199505-199508

11213GASKET, CYLINDER HEAD COVER

main11213-54050i2L..LH10#,11#198908-199508

main11213-75020i1RZ,2RZE..RZH10#,11#198908-199508

12108CAP SUB-ASSY, OIL FILLER

main12180-70020i2L..LH10#,11#198908-199508

main12180-73011i1RZ,2RZE..RZH10#,11#199103-199508

main12180-75010i1RZ,2RZE..RZH10#,11#198908-199103

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i2L..LH10#,11#198908-199508

main12195-73010i1RZ,2RZE..RZH10#,11#199103-199508

2201

9011906787

main90119-06787

9038706045

main90387-06045

21 parts on this diagram · 2 diagrams in section
