HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

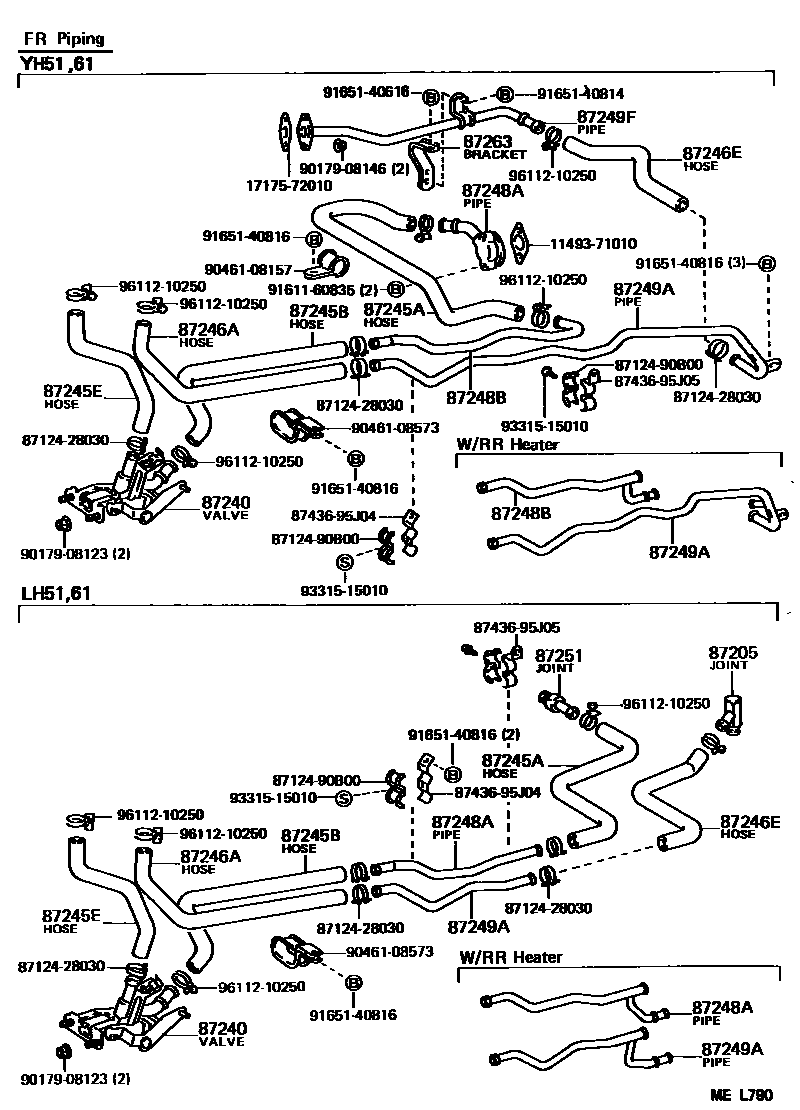

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30230iLH5#,6#198708-198908

main90404-54023iLH51..LHD..VSP..5H;LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

87240VALVE ASSY, HEATER WATER

main87240-95J02iLH51,61,YH51,61..RHD198708-198908

main87240-95J03iLH5#,6#,YH5#,6#..LHD198708-198908

87245AHOSE, HEATER WATER, INLET A

main87245-95J10iYH51,61198708-198908

main87245-95J33iYH56,66198708-198908

main87245-95J40iLH51,61198708-198908

main87245-95J41iLH56,66198708-198908

87245BHOSE, HEATER WATER, INLET B

main87245-95J09iLH51,61,YH51,61..LHD198708-198908

main87245-95J27iLH51,61,YH51,61..RHD198708-198908

main99556-30500iYH56,66198708-198908

L=500

87245EHOSE, HEATER WATER, INLET E

main87245-95J04iLH5#,6#,YH5#,6#..LHD198708-198908

main87245-95J42iLH51,61,YH51,61..RHD198708-198908

87246AHOSE, HEATER WATER, OUTLET A

main87245-95J07iLH51,61,YH51,61..LHD198708-198908

main87245-95J26iLH51,61,YH51,61..RHD198708-198908

main87245-95J30iLH56,66,YH56,66198708-198908

87246EHOSE, HEATER WATER, OUTLET E

main87245-95J12iYH51,61198708-198908

main87245-95J13iLH51,61198708-198908

main87245-95J31iLH56,66198708-198908

main87245-95J34iYH56,66198708-198908

87248APIPE, HEATER WATER INLET, A

main87208-28010iYH5#,6#198708-198908

main87248-95J14iLH51,61..LHD198708-198908

main87248-95J15iLH51,61..J,U198708-198908

W(RR HEATER)

main87248-95J62iLH51,61..RHD198708-198908

87248BPIPE, HEATER WATER INLET, B

main87248-14090iYH56,66198708-198908

main87248-95J12iYH51,61..LHD198708-198908

main87248-95J13iYH51,61..15S,J,U;YH61..V4D..5H..R198708-198908

W(RR HEATER)

main87248-95J60iYH51,61..RHD198708-198908

main87248-95J66iLH51,61..J,U198708-198908

87249APIPE, HEATER WATER OUTLET, A

main87248-95J08iYH51,61..LHD198708-198908

main87248-95J10iLH51,61..LHD198708-198908

main87248-95J11iLH51,61..J,U198708-198908

W(RR HEATER)

main87248-95J50iYH51,61..15S,J,U;YH61..V4D..5H..R198708-198908

W(RR HEATER)

main87248-95J59iYH51,61..RHD198708-198908

main87248-95J61iLH51,61..RHD198708-198908

87249FPIPE, HEATER WATER OUTLET, F

main87208-28021iYH5#,6#198708-198908

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30200iLH5#,6#198708-198908

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-28011iYH5#,6#198708-198908

1149371010GASKET, WATER SEAL PLATE

main11493-71010

1717572010GASKET, INTAKE MANIFOLD INLET

main17175-72010

8712428030CLAMP, HEATER

main87124-28030

8712490B00CLAMP, HEATER

main87124-90B00

8743695J04

main87436-95J04

8743695J05

main87436-95J05

9017908123

main90179-08123

9017908146

main90179-08146

9046108157

main90461-08157

9046108573

main90461-08573

9161160835

main91611-60835

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9331515010

main93315-15010

9611210250

main96112-10250

29 parts on this diagram · 7 diagrams in section
