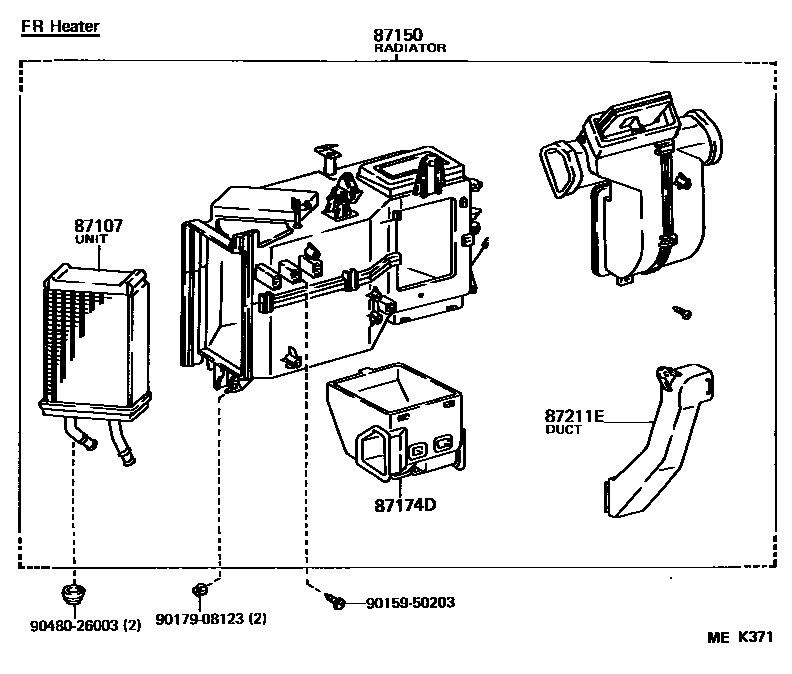

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1 0004 1

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95J03iLH5#,6#,YH5#,6#..LHD198708-198908

main87107-95J06iLH51,61,YH51,61..RHD198708-198908

87150RADIATOR ASSY, HEATER

main87150-95J03iLH5#,6#,YH5#,6#..LHD198708-198908

main87150-95J04iLH51,61,YH51,61..RHD198708-198908

87174DGUIDE, AIR

main87174-95J01iLH51,61,YH51,61..RHD198708-198908

main87174-95J03iLH5#,6#,YH5#,6#..LHD198708-198908

87211EDUCT, AIR

main87211-95J03iLH5#,6#,YH5#,6#..LHD198708-198908

main87211-95J10iLH51,61,YH51,61..RHD198708-198908

9015950203

main90159-50203

9017908123

main90179-08123

9048026003

main90480-26003

7 parts on this diagram · 4 diagrams in section
