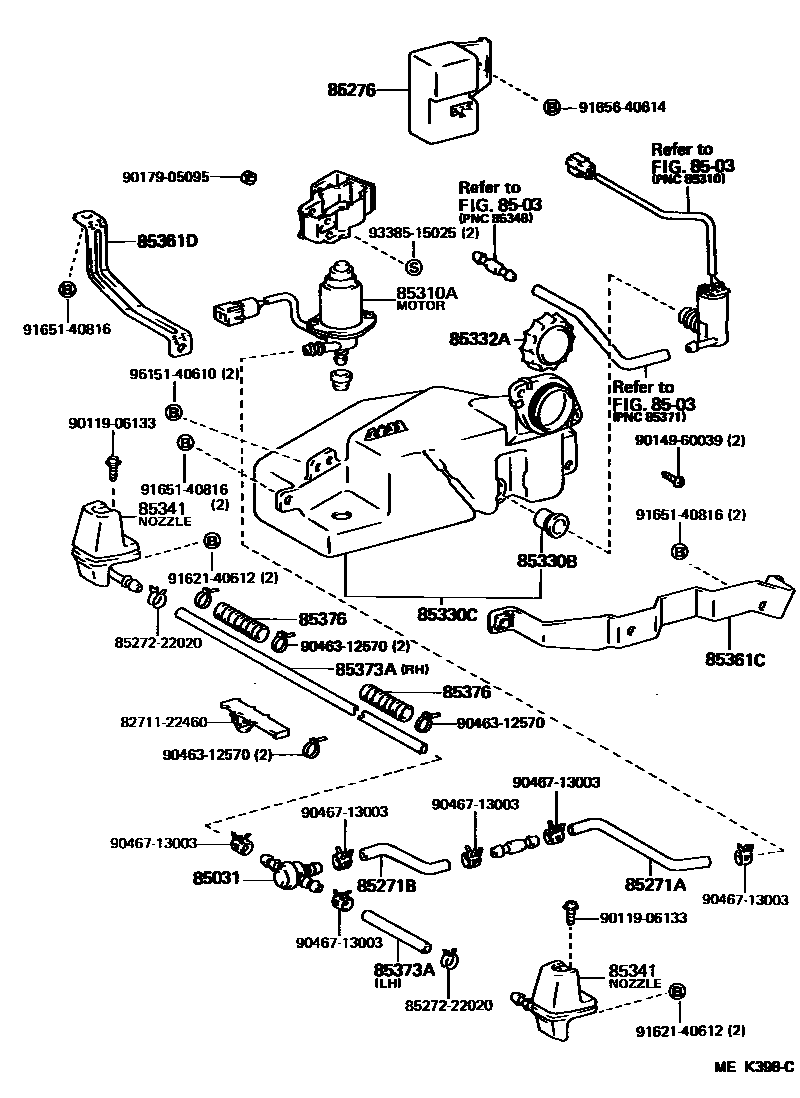

HEADLAMP CLEANER

8503

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-12010iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85271AHOSE, HEADLAMP CLEANER, NO.2

main90445-14060iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

L=115

85271BHOSE, HEADLAMP CLEANER, NO.3

main90445-14059iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

L=190

85276RELAY, CLEANER CONTROL

main85276-22020iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32029iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85331-95J01iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85332-95J01iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-95J02iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85361CBRACKET, WASHER

main85361-95J01iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85361DBRACKET, HEADLAMP CLEANER, NO.2

main85362-95J00iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14055iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

L=60

sub85375-50020

main90445-14072iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

L=1320

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-12090iYH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

8271122460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22460

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

9011906133

main90119-06133

9014960039

main90149-60039

9017905095

main90179-05095

9046312570

main90463-12570

9046713003

main90467-13003

9162140612

main91621-40612

9165140816

main91651-40816

9165640614

main91656-40614

9338515025

main93385-15025

9615140610

main96151-40610

26 parts on this diagram · 1 diagram in section
