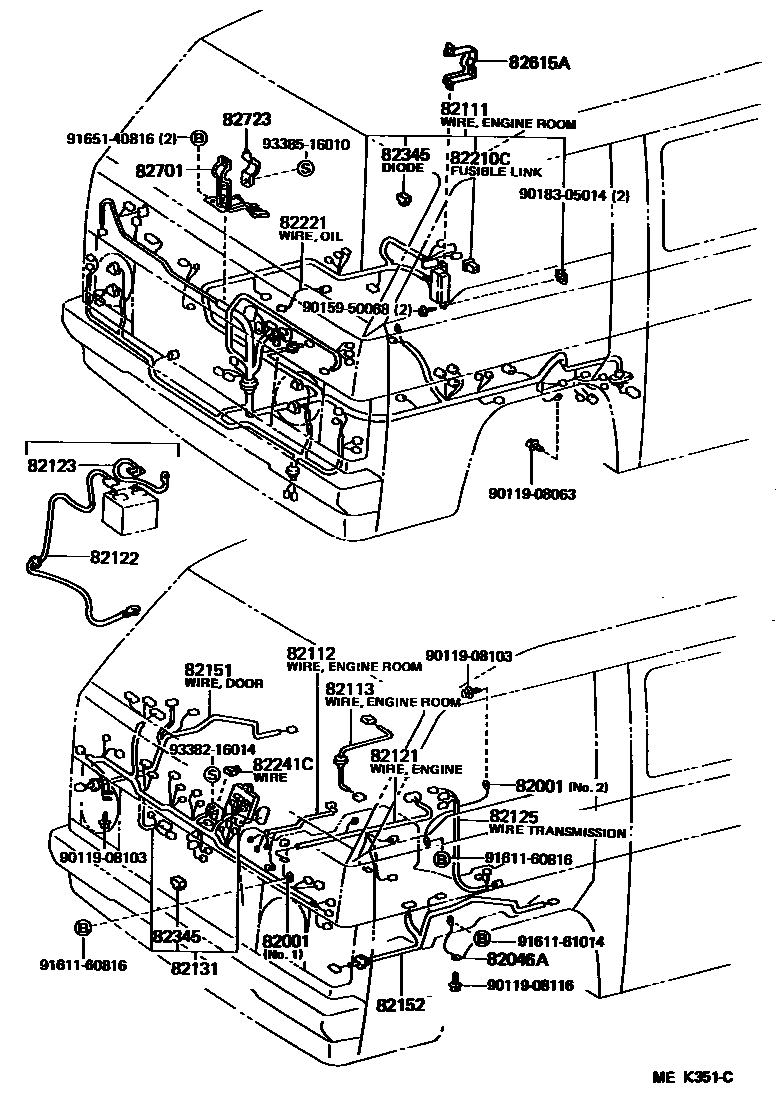

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

82001CABLE, BOND, NO.1

main90980-07164iYH56,66¥640198708-198908

NO.2

main90980-07215iYH51,61¥360198708-198908

NO.1

main90980-07274iYH51,61¥520198708-198908

NO.2

main90980-07281iYH56,66¥530198708-198908

NO.1

82046WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH

main82046-95701iYH61..V5D..(4HC,5H)..03S¥700198708-198908

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-95J00iLH5#,6#¥1,160198708-198908

main82046-95J01iYH5#,6#¥2,320198708-198908

82111WIRE, ENGINE ROOM MAIN

main82111-95P12iYH61..RHD¥97,300198808-198908

ENGLAND SPEC

main82111-95P16iYH51..V5D;YH61..V5D..(4HC,5H)..03S¥112,000198808-198908

NORWAY SPEC

main82111-95P17iYH66;YH56..R¥97,300198808-198908

main82111-95P18iLH61..RHD¥112,000198808-198908

ENGLAND SPEC

main82111-95P20iYH66..02S¥97,300198808-198908

NORWAY SPEC

main82111-95P23iLH66..02S¥126,000198808-198908

NORWAY SPEC

main82115-95N33iYH51,61..RHD¥97,300198708-198908

main82115-95N34iYH61..RHD¥97,300198708-198808

ENGLAND SPEC

main82115-95N36iYH51,61..LHD..MTM¥112,000198708-198908

main82115-95N37iYH51,61..4HC¥97,300198708-198908

main82115-95N39iYH61..U;YH51..LHD..V4D..4H;YH61..V5D..(4HC,5H)¥112,000198708-198908

SWEDEN SPEC

main82115-95N40iYH51..V5D;YH61..V5D..5H..03S¥112,000198708-198808

NORWAY SPEC

main82115-95N41iYH61..V5D..4HC..03S¥112,000198708-198808

NORWAY SPEC

main82115-95N42iYH51..V5D..5H;YH51..LHD..V4D..MTM..(03S,U)¥112,000198708-198908

*FRG

main82115-95N43iYH56,66..02S,J,R¥97,300198708-198808

main82115-95N44iYH66..VSG¥97,300198708-198908

SWEDEN SPEC

main82115-95N45iYH66..02S¥97,300198708-198808

NORWAY SPEC

main82115-95N46iYH56..U¥97,300198708-198908

*FRG

main82115-95N47iLH51,61..RHD¥97,300198708-198908

main82115-95N48iLH61..RHD¥112,000198708-198808

ENGLAND SPEC

main82115-95N49iLH51,61..LHD..5H¥141,000198708-198908

main82115-95N50iLH51,61..4HC¥141,000198708-198908

main82115-95N52iLH51,61..V5D..03S¥141,000198708-198908

NORWAY SPEC

main82115-95N53iLH51..U;LH51,61..LHD..VSP..5H¥126,000198708-198908

*FRG

main82115-95N54iLH56,66..02S,J¥141,000198708-198908

main82115-95N55iLH66..02S¥126,000198708-198808

NORWAY SPEC

main82115-95N56iLH56..02S¥141,000198708-198908

*FRG

main82115-95N69iYH56..02S¥97,300198808-198908

main82115-95N78iYH51..U¥112,000198709-198908

NORWAY SPEC

82112WIRE, ENGINE ROOM, NO.2

main82112-95J00iYH5#,6#¥2,020198708-198908

82113WIRE, ENGINE ROOM, NO.3

main82113-95J11iYH61..V5D..(4HC,5H)..03S¥8,200198708-198908

main82113-95J11iYH51..U;LH51,6#,YH51,66..V5D..VSP¥8,200198708-198908

NORWAY SPEC

main82113-95J15iLH5#..LHD..VSP;LH61..LHD..5H..(03S,U);YH51..V4D..(4HC,5H)..03S¥2,900198708-198908

DENMARK SPEC

82121WIRE, ENGINE

main82121-95J01iYH51,61¥2,870198708-198908

main82121-95J06iYH56,66¥4,700198708-198908

main82121-95J08iLH51,61¥5,300198708-198908

main82121-95J13iLH56,66¥6,000198708-198908

82122WIRE, ENGINE, NO.2

main82122-95J12iLH51,61..5H¥45,900198708-198908

COLD SPEC

main82122-95J13iLH51,61..5H¥45,900198708-198908

main82122-95J18iYH56,66¥16,300198708-198908

main82122-95J19iLH56,66¥45,900198708-198908

COLD SPEC

main82122-95J20iLH56,66¥45,900198708-198908

main82122-95J22iYH51,61¥16,500198708-198908

82123WIRE, ENGINE, NO.3

main82123-95J00iYH5#,6#¥3,220198708-198908

main82123-95J02iLH5#,6#¥4,140198708-198908

82125WIRE, TRANSMISSION

main82125-95J00iLH51,61,YH51,61..MTM¥2,650198708-198908

main82125-95J07iYH61..U;YH61..V5D..5H..R;YH51..LHD..V4D..4H¥2,770198808-198908

SWEDEN SPEC OR NORWAY SPEC

main82125-95J07iLH51,61..V5D..5H..03S¥2,770198708-198908

NORWAY SPEC

main82125-95J07iLH51,61..V5D..5H..03S¥2,770198708-198908

SWEDEN SPEC

82131WIRE, COWL

main82135-95J31iLH51,61,YH51,61..RHD¥52,900198708-198908

main82135-95J32iLH61,YH61..RHD¥52,600198708-198808

ENGLAND SPEC

main82135-95J36iLH56,66,YH56,66..02S,J,R;LH51,61,YH51,61..LHD..MTM¥52,900198708-198908

main82135-95J37iLH51,61,YH51,61..4HC¥52,900198708-198908

main82135-95J38iLH51,6#..J,U¥52,900198708-198908

W(RR WINDOW DEFOGGER)

main82135-95J38iLH51,6#..J,U¥52,900198708-198908

COLD SPEC & W(RR HEATER)

main82135-95J38iLH51,6#..J,U¥52,900198708-198908

W(BUILT-IN TYPE RR HEATER)

main82135-95J39iYH61..V5D..4HC¥52,900198708-198908

W(RR WINDOW DEFOGGER)

main82135-95J40iYH51,66..LHD..V4D..(4H,5F)..(03S,J)¥52,900198708-198908

SWEDEN SPEC

main82135-95J41iYH61..U¥52,900198708-198908

SWEDEN SPEC & W(BUILT-IN TYPE RR HEATER)

main82135-95J41iYH66..J¥52,900198708-198908

SWEDEN SPEC

main82135-95J42iYH61..V5D..4HC¥52,900198708-198908

SWEDEN SPEC

main82135-95J43iYH51..V5D..4H;LH51,6#..V5D..VSP..MTM¥52,600198708-198808

NORWAY SPEC

main82135-95J44iYH51,6#..V5D..VSP..(5F,5H)¥52,600198708-198808

NORWAY SPEC

main82135-95J45iLH61..4HC¥52,900198708-198908

NORWAY SPEC

main82135-95J46iYH61..V5D..4HC..03S¥52,900198708-198908

NORWAY SPEC

main82135-95J47iYH51..V5D..5H;YH51..LHD..V4D..MTM..03S;LH5#,61,YH56..LHD..VSP..MTM¥52,900198708-198908

*FRG

main82135-95J47iLH56..U¥52,900198708-198908

main82135-95J48iLH56..U¥52,900198708-198908

*FRG & COLD SPEC & W(RR HEATER)

main82135-95J48iLH56..U¥52,900198708-198908

COLD SPEC & W(RR HEATER)

main82135-95J48iYH51..V5D..5H¥52,900198802-198908

*FRG & W(RR WINDOW DEFOGGER)

main82135-95J49iYH56..U¥52,900198708-198908

*FRG

main82135-95J69iYH51..U¥59,200198709-198908

NORWAY SPEC

main82135-95J75iLH51,61..V5D..5H..03S¥59,100198710-198808

NORWAY SPEC

main82135-95J86iLH61,YH61..RHD¥59,200198808-198908

ENGLAND SPEC

main82135-95J87iYH51..V5D..4H;LH51,6#..V5D..VSP..MTM¥59,200198808-198908

NORWAY SPEC

main82135-95N04iYH51,6#..V5D..VSP..(5F,5H)¥59,200198808-198908

NORWAY SPEC

82151WIRE, FRONT DOOR, RH

main82151-95J22iYH51..U¥3,200198709-198908

HIGH GRADE PACKAGE

82152WIRE, FRONT DOOR, LH

main82151-95J20iYH51..U¥3,190198709-198908

HIGH GRADE PACKAGE

82210CFUSIBLE LINK

main90982-08189iLH5#,6#,YH5#,6#¥440198708-198908

40A,TERM.:FEMALE,GRN

main90982-08202iLH5#,6#,YH5#,6#¥700198708-198908

60A,TERM.:MALE,YEL

main90982-08253iLH5#,6#¥730198708-198908

80A,TERM.:MALE,BLK

sub90982-08203¥460

82221WIRE, OIL PRESSURE SWITCH

main82221-95J01iLH51,61¥520198708-198908

main82221-95J02iLH56,66¥9,400198708-198908

82241CWIRE, RELAY

main82241-95701iLH51,61,YH61..LHD..MTM;LH56,66,YH5#,66..LHD..(02S,03S,J,R)¥300198708-198908

main82241-95702iLH56,66..02S;LH51,61..LHD..V4D..5H..(03S,J)¥300198708-198908

FRANCE SPEC

82345DIODE

main82345-12050iYH51..U¥790198709-198908

NORWAY SPEC

main82345-12050iLH61,YH61..RHD¥790198708-198908

ENGLAND SPEC

main82345-22051iYH51..U¥980198709-198908

NORWAY SPEC

main82345-32020iLH5#,6#,YH5#,6#¥1,030198708-198908

main82345-32020iYH51..U¥1,030198709-198908

NORWAY SPEC

82615ABRACKET, FUSE

main82615-95J00iLH56,66¥950198708-198908

82701BRACKET SUB-ASSY, WIRE HARNESS

main82701-95J02iLH5#,6#,YH5#,6#¥540198708-198908

82723BRACKET, WIRE HARNESS, NO.3

9011908063

main90119-08063¥120

9011908103

main90119-08103¥90

9011908116

main90119-08116¥200

9015950068

main90159-50068¥70

9018305014

main90183-05014¥390

9161160816

main91611-60816¥230

9161161014

main91611-61014¥120

9165140816

main91651-40816¥80

9338216014

main93382-16014¥120

9338516010

main93385-16010¥110

30 parts on this diagram · 5 diagrams in section
