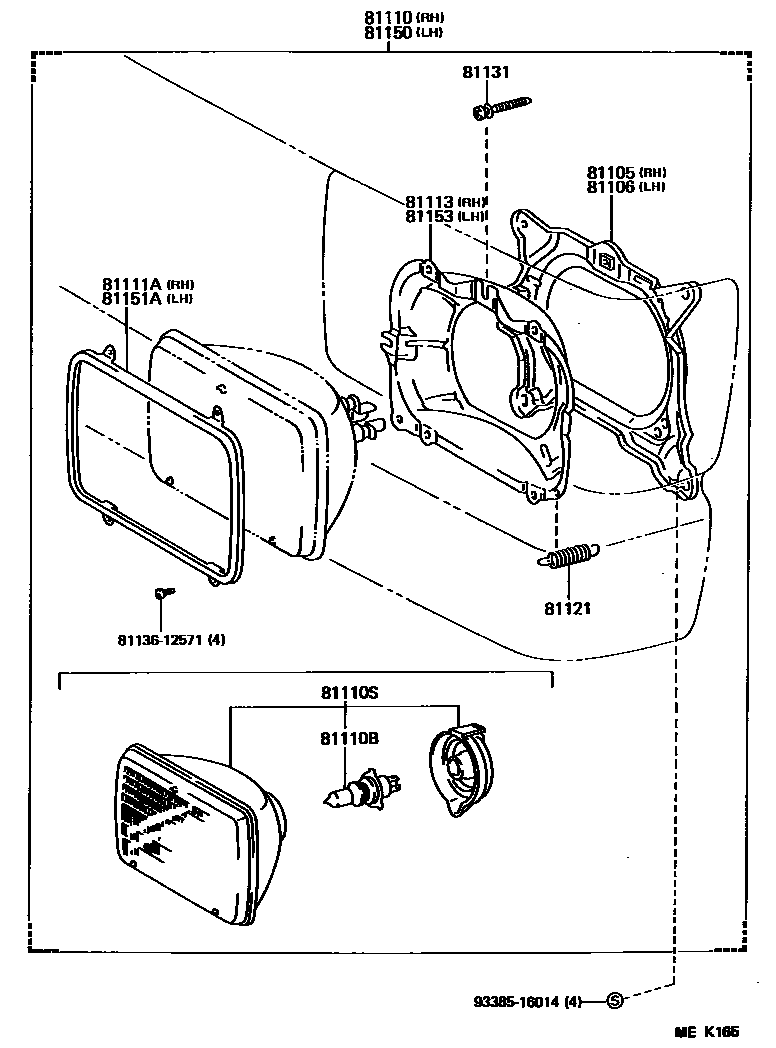

HEADLAMP

0001 1 0002 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-95J14iLH5#,6#,YH5#,6#198708-198908

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-95J14iLH5#,6#,YH5#,6#198708-198908

81110HEADLAMP ASSY, RH

main81110-95J17iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD198708-198908

sub81110-95J56

main81110-95J18iLH51,61,YH51,61..RHD198708-198908

sub81110-95J57

main81110-95J19iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD198708-198908

W(HALOGEN WHITE HEADLAMP)

sub81110-95J52

main81110-95J20iLH51,YH51..RHD198708-198908

W(HALOGEN WHITE HEADLAMP)

sub81110-95J53

main81110-95J21iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD198708-198908

W(HALOGEN YELLOW HEADLAMP)

sub81110-95J54

main81110-95J22iLH51..U;LH5#,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG

sub81110-95J58

main81110-95J22iLH56,YH56..U198708-198908

sub81110-95J58

main81110-95J23iLH51..U;LH51..LHD..V4D..VSP..5H;LH56,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG & W(HALOGEN WHITE HEADLAMP)

sub81110-95J55

main81110-95J23iLH56,YH56..U198708-198908

W(HALOGEN WHITE HEADLAMP)

sub81110-95J55

main81110-95J34iYH51..U198709-198908

HIGH GRADE PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iLH5#,6#,YH5#,6#198708-198908

12V 45/40W,WHITE

main90981-13015iLH56,YH56..U198708-198908

12V 60/55W,*HAL *WH

sub90981-13058

main90981-13016iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD198708-198908

12V 60/55W,*HAL *YE

sub90981-13H01

81110SSEALED BEAM UNIT, NO.1

main90981-04005iLH51,61,YH51,61..RHD198708-198908

12V 45/40W,*WSB

main90981-04006iLH5#,6#,YH5#,6#..LHD198708-198908

12V 45/40W,*WSB

main90981-04008iLH61..VSG;YH51..V5D;LH66,YH6#..LHD;LH51,61,YH51..4HC;LH51,YH5#..VSG..(03S,J,R)198708-198908

12V 60/55W,*HWS

main90981-04009iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD198708-198908

12V 60/55W,*HYS

main90981-04011iLH61,YH61..RHD198708-198908

12V 60/55W,*HWS

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-16020iLH51,6#,YH51,6#;LH56,YH56..02S,R198708-198908

main81111-95A28iLH51..U;LH51..LHD..V4D..VSP..5H;LH56,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG

main81111-95A28iLH56,YH56..U198708-198908

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81153-16220iLH51,6#,YH51,6#;LH56,YH56..02S,R198708-198908

main81153-95A28iLH51..U;LH51..LHD..V4D..VSP..5H;LH56,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG

main81153-95A28iLH56,YH56..U198708-198908

81121SPRING, HEADLAMP TENSION

main81121-16020iLH5#,6#,YH5#,6#198708-198908

81131SCREW, HEADLAMP ADJUSTING

main81131-10031iLH5#,6#,YH5#,6#198708-198908

81150HEADLAMP ASSY, LH

main81150-95J17iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD198708-198908

sub81150-95J56

main81150-95J18iLH51,61,YH51,61..RHD198708-198908

sub81150-95J57

main81150-95J19iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD198708-198908

W(HALOGEN WHITE HEADLAMP)

sub81150-95J52

main81150-95J20iLH61,YH61..RHD198708-198908

W(HALOGEN WHITE HEADLAMP)

sub81150-95J53

main81150-95J21iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD198708-198908

W(HALOGEN YELLOW HEADLAMP)

sub81150-95J54

main81150-95J22iLH51..U;LH5#,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG

sub81150-95J58

main81150-95J22iLH56,YH56..U198708-198908

sub81150-95J58

main81150-95J23iLH56,YH56..U198708-198908

W(HALOGEN WHITE HEADLAMP)

sub81150-95J55

main81150-95J23iLH51..U;LH51..LHD..V4D..VSP..5H;LH56,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG & W(HALOGEN WHITE HEADLAMP)

sub81150-95J55

main81150-95J34iYH51..U198709-198908

HIGH GRADE PACKAGE

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-16020iLH51,6#,YH51,6#;LH56,YH56..02S,R198708-198908

main81111-95A28iLH51..U;LH51..LHD..V4D..VSP..5H;LH56,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG

main81111-95A28iLH56,YH56..U198708-198908

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-16220iLH51,6#,YH51,6#;LH56,YH56..02S,R198708-198908

main81113-95A28iLH51..U;LH5#,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG

main81113-95A28iLH56,YH56..U198708-198908

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9338516014

main93385-16014

14 parts on this diagram · 2 diagrams in section
