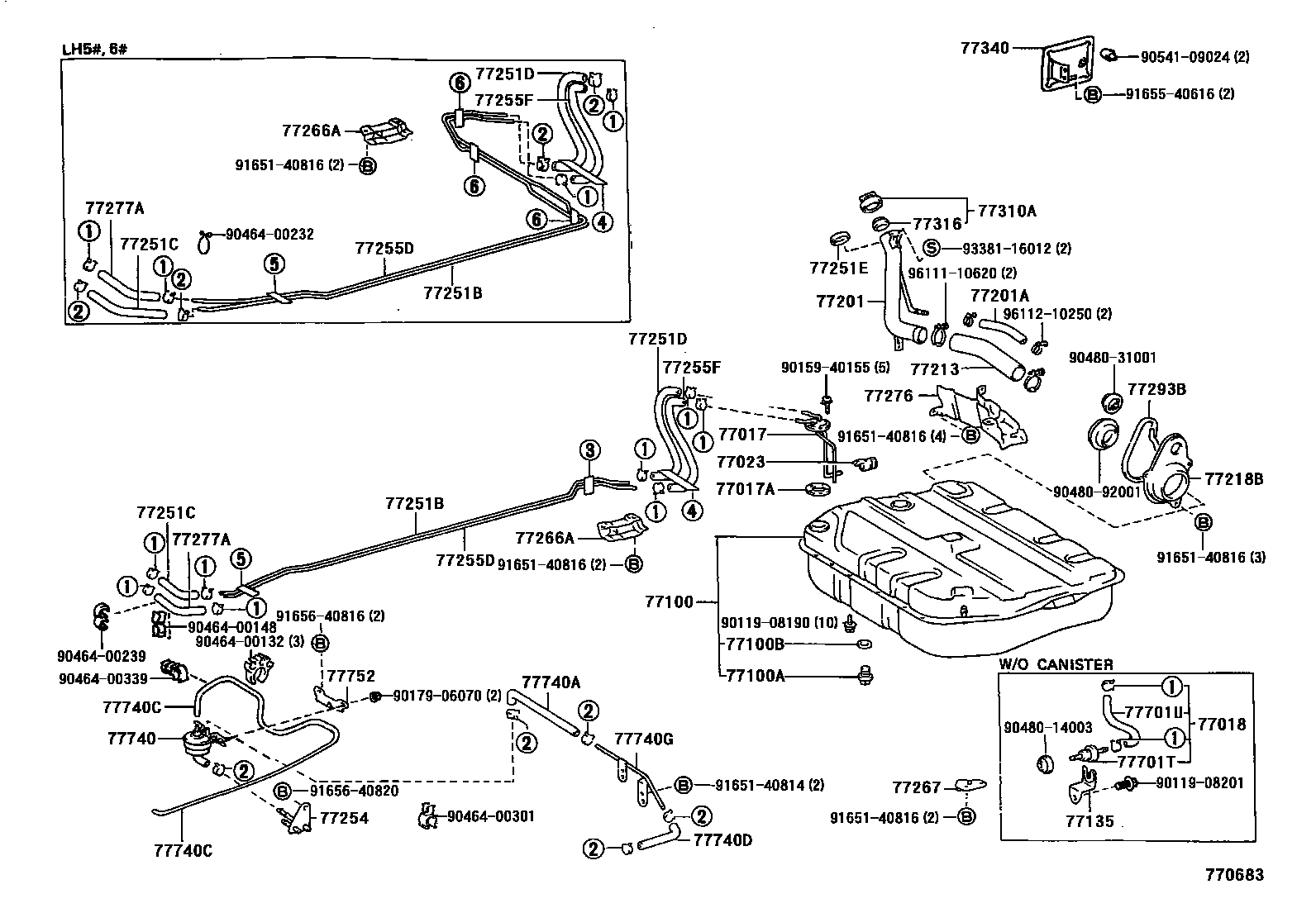

FUEL TANK & TUBE

0001 1 0002 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-26010iYH5#,6#198708-198908

main77017-26020iLH5#,6#198708-198908

77017AGASKET, FUEL TANK VENT

main77169-14020iLH5#,6#,YH5#,6#198708-198908

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-26150iLH5#,6#,YH5#,6#198708-198908

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYH5#,6#198708-198908

main77023-32010iLH5#,6#198708-198908

77100TANK ASSY, FUEL

main77100-26902iYH5#,6#198708-198908

main77100-26903iLH5#,6#198708-198908

77100APLUG(FOR FUEL TANK)

main90105-12116iLH5#,6#,YH5#,6#198708-198908

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH5#,6#,YH5#,6#198708-198908

77135BRACKET, CHECK VALVE

main77135-26010iLH5#,6#,YH5#,6#198708-198908

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26040iLH5#,6#,YH5#,6#198708-198908

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-24012iLH5#,6#,YH5#,6#198708-198908

L=340

77213HOSE, FUEL TANK SUB INLET

main77213-26040iLH5#,6#,YH5#,6#198708-198908

77218BPLATE, FUEL INLET PIPE LOWER SHIELD

main77218-95J00iLH5#,6#,YH5#,6#198708-198908

77251BTUBE, FUEL MAIN

main77251-26321iLH5#198708-198908

main77251-26331iLH6#198708-198908

main77251-26430iYH5#198708-198908

main77251-26450iYH6#198708-198908

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main95333-06040iYH5#,6#198708-198908

L=400

main95333-08030iLH5#,6#198708-198908

L=300

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-06030iYH5#,6#198708-198908

L=300

sub95338-06030

main95333-08030iLH5#,6#198708-198908

L=300

77251ESHIELD, FUEL TANK INLET PIPE

main77251-10010iLH5#,6#,YH5#,6#198708-198908

77254TUBE, FUEL EMISSION, NO.1

main77263-26070iYH5#,6#198708-198908

77255DTUBE, FUEL RETURN

main77255-26150iYH5#198708-198908

main77255-26160iYH6#198708-198908

main77255-26171iLH5#198708-198908

main77255-26181iLH6#198708-198908

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-06030iLH5#,6#198708-198908

L=300

sub95338-06030

77266APROTECTOR, FUEL TUBE, NO.1

main77266-26010iLH5#,6#,YH5#,6#198708-198908

77267COVER, FUEL EVAPORATIVE TUBE

main77267-26020iLH5#,6#,YH5#,6#198708-198908

77276PROTECTOR, FUEL HOSE

main77276-26050iLH5#,6#,YH5#,6#198708-198908

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-12071iLH51,61198708-198908

*H,L=520

main95333-06040iYH5#,6#198708-198908

L=400

77293BPACKING, FUEL INLET PIPE LOWER SHIELD PLATE

main77293-95J00iLH5#,6#,YH5#,6#198708-198908

77310ACAP ASSY, FUEL TANK

main77310-12100iYH5#,6#198708-198908

main77310-35061iLH5#,6#198708-198908

77316GASKET, FUEL TANK CAP

main77316-12050iLH5#,6#,YH5#,6#198708-198908

77340DOOR ASSY, FUEL INLET BOX

main77340-95J00iLH5#,6#,YH5#,6#198708-198908

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10067iLH5#,6#,YH5#,6#198708-198908

77701UHOSE, FUEL (FOR CHECK VALVE)

main90923-01274iLH5#,6#,YH5#,6#198708-198908

77740CANISTER ASSY, CHARCOAL

main77740-26050iYH5#,6#198708-198908

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main23829-73010iYH56,66198708-198908

main90445-14096iYH51,61198708-198908

L=490

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90445-08224iYH51,61198708-198908

L=1300

sub90999-92006

77740DHOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)

main90445-14095iYH51,61198708-198908

L=350

main90445-14158iYH56,66198708-198908

L=640

77740GTUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main23818-72010iYH51,61198708-198908

main23818-73010iYH56,66198708-198908

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-26010iYH5#,6#198708-198908

9011908190

main90119-08190

9011908201

main90119-08201

9015940155

main90159-40155

9017906070

main90179-06070

9046400132

main90464-00132

9046400148

main90464-00148

9046400232

main90464-00232

9046400239

main90464-00239

9046400301

main90464-00301

9046400339

main90464-00339

9048014003

main90480-14003

9048031001

main90480-31001

9048092001

main90480-92001

9054109024

main90541-09024

9165140814

main91651-40814

9165140816

main91651-40816

9165540616

main91655-40616

9165640816

main91656-40816

9165640820

main91656-40820

9338116012

main93381-16012

9611110620

main96111-10620

9611210250

main96112-10250

57 parts on this diagram · 2 diagrams in section
