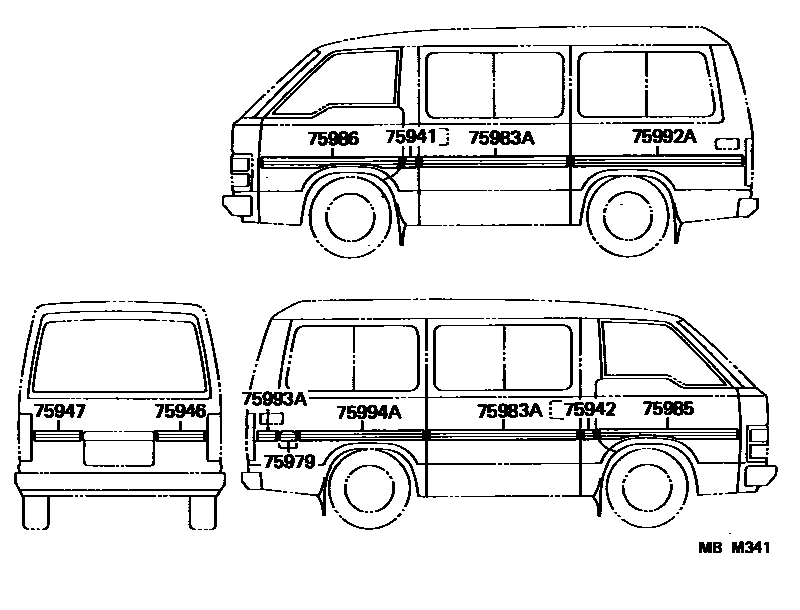

BODY STRIPE

75941STRIPE, CENTER PILLAR, RH

main75941-95J19-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main75941-95J19-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75942STRIPE, CENTER PILLAR, NO.2

main75942-95J01-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main75942-95J01-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75946STRIPE, BACK DOOR, RH

main75946-95J18-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main75946-95J18-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75947STRIPE, BACK DOOR, LH

main75947-95J18-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main75947-95J18-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75979STRIPE, FUEL FILLER OPENING LID

main76993-95J25-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main76993-95J25-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75983ASTRIPE, SLIDE DOOR

main75983-95J21-03×2iYH51..V5D198708-198908

GRAY,153 ,391 ,6A9 ,8B2

main75983-95J21-04×2iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75985STRIPE, FRONT DOOR, RH

main75985-95J21-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main75985-95J21-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75986STRIPE, FRONT DOOR, LH

main75986-95J21-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main75986-95J21-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75992ASTRIPE, QUARTER, LH

main75992-95J34-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main75992-95J34-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75993ASTRIPE, QUARTER, REAR RH

main75993-95J26-03iYH51..V5D198708-198908

GRAY,153 ,358 ,391 ,6A9 ,8B2

main75993-95J26-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

75994ASTRIPE, QUARTER EXTENSION

main75994-95J38-03iYH51..V5D198708-198908

GRAY,153 ,391 ,6A9 ,8B2

main75994-95J38-04iYH51..V5D198708-198908

BLUE,045 ,148 ,541 ,557 ,6H3

11 parts on this diagram · 1 diagram in section
