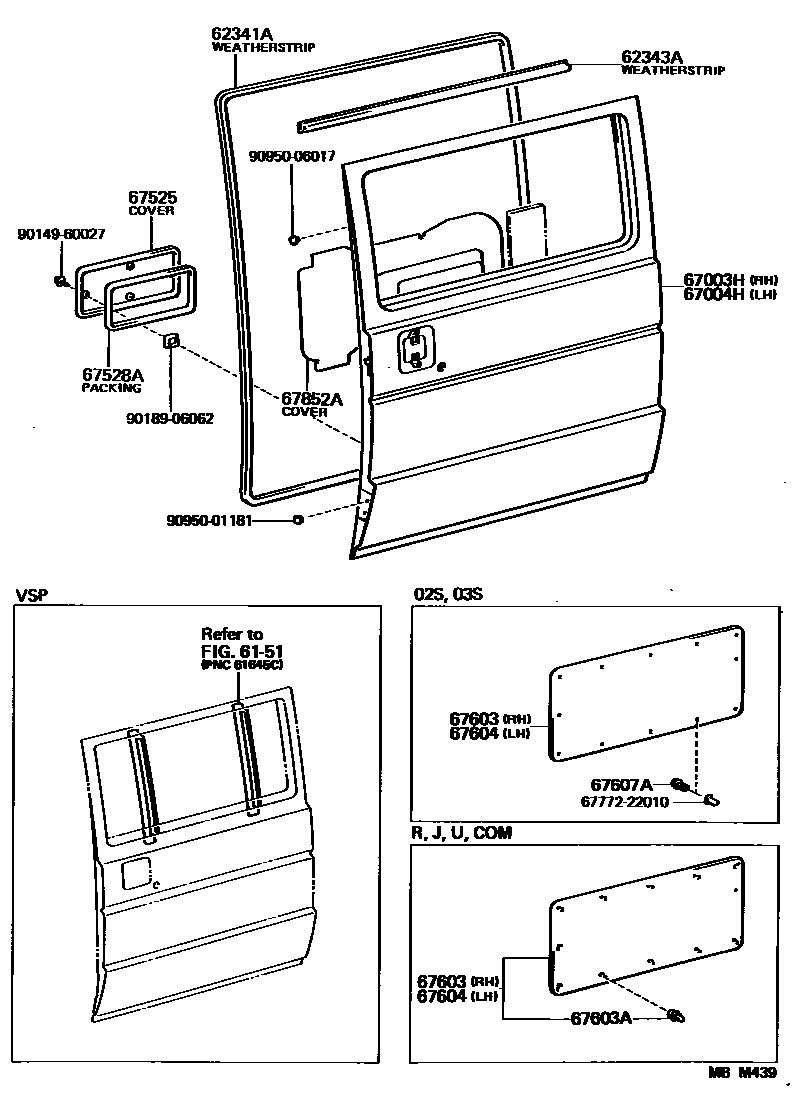

REAR DOOR PANEL & GLASS

6151

62341AWEATHERSTRIP, SLIDE DOOR, NO.1

main62341-95J02iYH61..15S;LH5#,6#,YH5#,6#..V4D198708-198908

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-95J00iYH61..15S;LH5#,6#,YH5#,6#..V4D198708-198908

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-95J15iLH51..VSG..03S198708-198908

W/O(RR SEAT)

main67003-95J15iLH51..VSG..03S198708-198908

W(WINDOW GLASS)

main67003-95J16iLH5#,6#,YH5#,6#..LHD..VSP198708-198908

main67003-95J17iYH66..R;LH5#,61,YH5#,61..15S,J,R,U198708-198908

main67003-95J20iLH66,YH66..J198708-198908

main67003-95J21iYH51..U198709-198908

HIGH GRADE PACKAGE

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-95J28iYH61..VSG..03S198708-198908

W/O(RR SEAT)

main67004-95J28iYH61..VSG..03S198708-198908

W(WINDOW GLASS)

main67004-95J29iLH5#,6#,YH5#,6#..V5D..VSP;LH51,61,YH51,61..RHD..VSP198708-198908

main67004-95J30iLH51,61,YH61..V5D..R198708-198908

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-95J00iYH61..15S;LH5#,6#,YH5#,6#..V4D198708-198908

main67525-95J01iLH51,YH51..U198709-198908

HIGH GRADE PACKAGE

67528APACKING, SLIDE DOOR LOWER COVER

main67528-95J00iYH61..15S;LH5#,6#,YH5#,6#..V4D198708-198908

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67613-95J01iLH5#,6#,YH5#,6#..LHD..(02S,03S)198708-198908

main67630-95J00-06iLH5#,6#,YH5#,6#..15S,J,R,U198708-198908

BROWN,TRIM4#

sub67630-95J00

main67630-95J03-04iYH51..U198710-198908

NORWAY SPEC,BLUE,TRIM8#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-95J02iLH5#,6#,YH5#,6#..15S,J,R,U198708-198908

NORWAY SPEC

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67614-95J01iYH61..V5D..5H..R198708-198908

main67640-95J00-06iLH51,61,YH61..V5D..R198708-198908

BROWN,TRIM4#

sub67640-95J00

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-09019-20iLH5#,YH5#..U198708-198908

BROWN,TRIM4#

sub90467-09019

main90467-09019-24iYH51..U198710-198908

BLUE,TRIM8#

sub90467-09019

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-95J00iYH61..15S;LH5#,6#,YH5#,6#..V4D198708-198908

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9014960027

main90149-60027

9018906062

main90189-06062

9095001181

main90950-01181

9095006017

main90950-06017

17 parts on this diagram · 1 diagram in section
