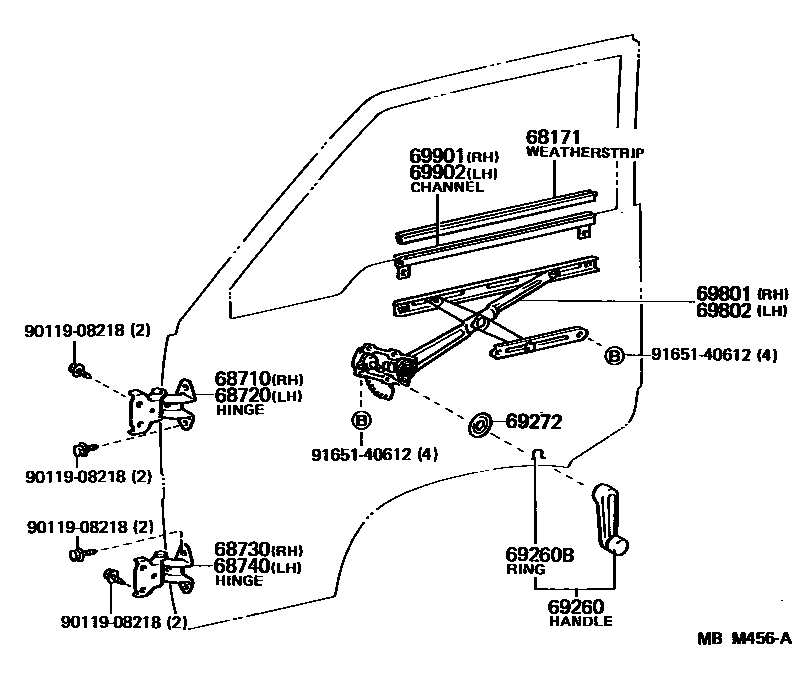

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iLH5#,6#,YH5#,6#198708-198908

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95J00iLH5#,6#,YH5#,6#198708-198908

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-95J00iLH5#,6#,YH5#,6#198708-198908

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-95J00iLH5#,6#,YH5#,6#198708-198908

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95J00iLH5#,6#,YH5#,6#198708-198908

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-95J00-04iYH51..U198710-198908

BLUE,TRIM8#

sub69260-95J00

sub69260-14030

main69260-95J00-06iLH5#,6#,YH5#,6#..V198708-198908

BROWN,TRIM4#

sub69260-95J00

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLH5#,6#,YH5#,6#198708-198908

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iLH5#,6#,YH5#,6#198708-198908

NATURAL WHITE,TRIM4#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95J00iLH5#,6#,YH5#,6#198708-198908

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95J00iLH5#,6#,YH5#,6#198708-198908

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002iLH5#,6#,YH5#,6#198708-198908

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002iLH5#,6#,YH5#,6#198708-198908

9011908218

main90119-08218

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
