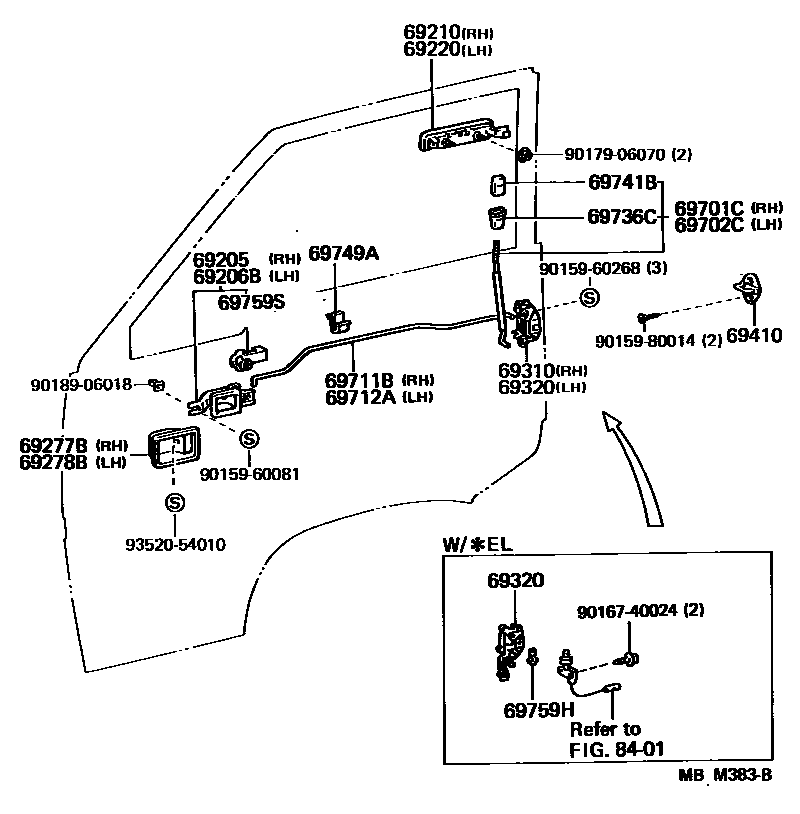

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
HIGH GRADE PACKAGE
69320LOCK ASSY, FRONT DOOR, LH
HIGH GRADE PACKAGE
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
sub69410-20070
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
HIGH GRADE PACKAGE,BLUE,TRIM8#
69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
HIGH GRADE PACKAGE
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
8401
9015960081
main90159-60081
9015960268
main90159-60268
9015980014
main90159-80014
9016740024
main90167-40024
9017906070
main90179-06070
9018906018
main90189-06018
9352054010
main93520-54010
26 parts on this diagram · 1 diagram in section
