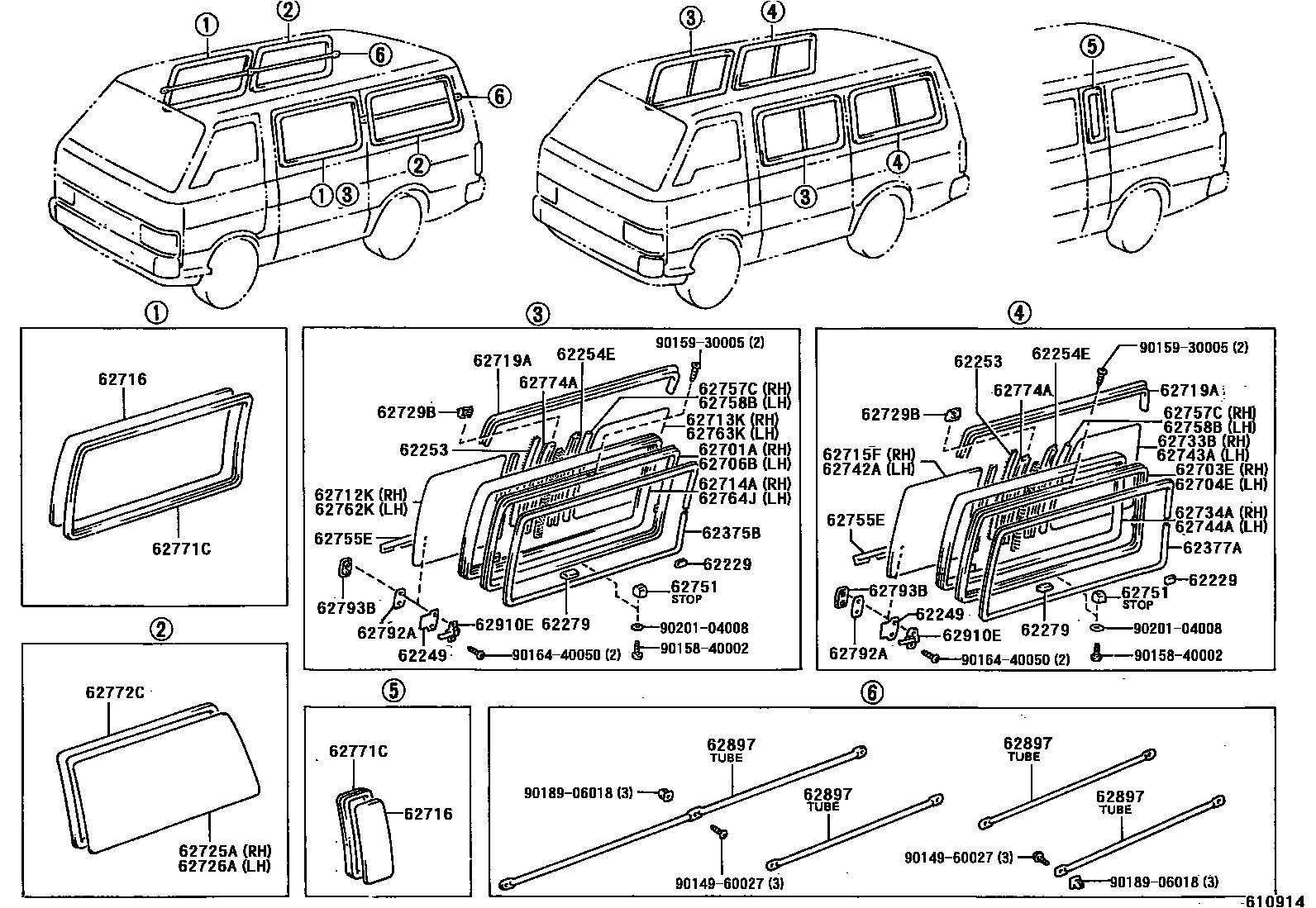

SIDE WINDOW
62229PACKING, SIDE WINDOW
SIDE WINDOW(RR LH)
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
62249PLATE, SIDE WINDOW, RH
SIDE WINDOW(RR LH)
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
62253WEATHERSTRIP, SIDE WINDOW, CENTER
SIDE WINDOW(RR LH)
SIDE WINDOW(RR RH)
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(LH
SLIDE DOOR WINDOW(RH
SIDE WINDOW(FR LH)
*FRG,SIDE WINDOW(FR LH),SIDE WINDOW(RR LH)
CANARY ISLANDS SPEC,SIDE WINDOW(FR LH)
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR WINDOW(LH
sub62781-95J00
62254EWEATHERSTRIP, SIDE WINDOW, CENTER NO.2
SIDE WINDOW(RR LH)
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
62279SPACER, SIDE WINDOW FRAME, UPPER
SIDE WINDOW(RR LH)
SLIDE DOOR(LH),T=6.2
SLIDE DOOR(RH),T=6.2
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
HIGH GRADE PACKAGE,SIDE WINDOW(FR LH)
SLIDE DOOR(RH),T=7.7
*FRG,SLIDE DOOR(LH),T=7.7
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR(LH),T=7.7
SLIDE DOOR(LH),T=7.7
62375BCLIP, SIDE WINDOW, NO.1
BLACK,TRIM4#,SIDE WINDOW(FR RH)
62377ACLIP, SIDE WINDOW, NO.3
62701AFRAME SUB-ASSY, SIDE WINDOW, RH
W/O(RR SEAT)
W(05S,06S) OR W/O(RR SEAT)
HIGH GRADE PACKAGE OR W(05S,06S) OR W/O(RR SEAT)
W(08S,09S)
62703EFRAME SUB-ASSY, SIDE REAR WINDOW, RH
62704EFRAME SUB-ASSY, SIDE REAR WINDOW, LH
62706BFRAME SUB-ASSY, SIDE DOOR WINDOW, LH
W/O(RR SEAT)
HIGH GRADE PACKAGE OR W(05S,06S) OR W/O(RR SEAT)
W(05S,06S) OR W/O(RR SEAT)
W(08S,09S)
62712KGLASS, SIDE WINDOW, FRONT RH
*TT,T=4.0,HIGH GRADE PACKAGE
62713KGLASS, SIDE WINDOW, REAR RH
*TT,T=4.0,HIGH GRADE PACKAGE
*TEM,T=4.0,CANARY ISLANDS SPEC
*TEM,T=4.0,*FRG
*TEM,T=4.0,W/O(RR SEAT)
*TEM,T=4.0,CANARY ISLANDS SPEC OR *FRG
*TEM,T=4.0,*FRG & W(05S,06S) OR *FRG & W/O(RR SEAT)
*TEM,T=4.0,CANARY ISLANDS SPEC
*TEM,T=4.0
*TEM,T=4.0,*FRG
62714ARUN, SIDE WINDOW, RH
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
W/O(RR SEAT),SLIDE DOOR WINDOW(RH
W(05S,06S) OR W/O(RR SEAT),SLIDE DOOR WINDOW(RH
HIGH GRADE PACKAGE OR W(05S,06S) OR W/O(RR SEAT),SLIDE DOOR WINDOW(RH
SLIDE DOOR WINDOW(RH
W(08S,09S),SLIDE DOOR WINDOW(RH
62715FGLASS, SIDE REAR WINDOW, RH
62716GLASS, SIDE FRONT WINDOW FIXED
SIDE WINDOW(FR RH)
SIDE WINDOW(FR LH)
62719APACKING, SIDE FRONT WINDOW, UPPER
HIGH GRADE PACKAGE,SIDE WINDOW(FR LH)
62726AGLASS, SIDE REAR WINDOW FIXED, LH
HIGH GRADE PACKAGE
62729BPAD, WINDOW CENTER SASH
SIDE WINDOW(RR LH)
SIDE WINDOW(FR LH)
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
*FRG,SLIDE DOOR WINDOW(LH
CANARY ISLANDS SPEC
CANARY ISLANDS SPEC & *FRG,SLIDE DOOR WINDOW(LH
62733BGLASS, SIDE REAR WINDOW, REAR RH
*TEM,T=4.0
*TEM,T=4.0,*FRG
*TEM,T=4.0,CANARY ISLANDS SPEC
62734ARUN, SIDE REAR WINDOW GLASS, RH
SIDE WINDOW(RR RH)
SIDE WINDOW(RR RH)
62742AGLASS, SIDE REAR WINDOW, FRONT LH
62743AGLASS, SIDE REAR WINDOW, REAR LH
*TEM,T=4.0
*TEM,T=4.0,*FRG
*TEM,T=4.0,CANARY ISLANDS SPEC
62744ARUN, SIDE REAR WINDOW GLASS, LH
62751STOP, SIDE WINDOW FIX GLASS
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
SIDE WINDOW(RR LH)
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR LH)
*FRG,SLIDE DOOR WINDOW(LH
CANARY ISLANDS SPEC & *FRG,SLIDE DOOR WINDOW(LH
SIDE WINDOW(RR RH)
62755EPACKING, SIDE FRONT WINDOW, LOWER
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
*FRG,SLIDE DOOR WINDOW(LH
CANARY ISLANDS SPEC & *FRG,SLIDE DOOR WINDOW(LH
SIDE WINDOW(RR LH)
62757CPROTECTOR, SIDE WINDOW GLASS, RH
*FRG,SLIDE DOOR WINDOW(RH,SIDE WINDOW(RR RH)
*FRG,SLIDE DOOR WINDOW(RH
CANARY ISLANDS SPEC,SIDE WINDOW(RR RH)
CANARY ISLANDS SPEC,SLIDE DOOR WINDOW(RH
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR WINDOW(RH
SIDE WINDOW(RR RH)
62758BPROTECTOR, SIDE WINDOW GLASS, LH
CANARY ISLANDS SPEC
*FRG
CANARY ISLANDS SPEC & *FRG
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR WINDOW(LH
sub62757-95J00
62762KGLASS, SIDE DOOR WINDOW, FRONT LH
*TT,T=4.0,HIGH GRADE PACKAGE
62763KGLASS, SIDE DOOR WINDOW, REAR LH
sub62723-95J00
*FRG
CANARY ISLANDS SPEC
CANARY ISLANDS SPEC OR *FRG
HIGH GRADE PACKAGE
W(05S,06S) OR W/O(RR SEAT)
*FRG
CANARY ISLANDS SPEC
*FRG & W(05S,06S) OR *FRG & W/O(RR SEAT)
W/O(RR SEAT)
62764JRUN, SIDE DOOR WINDOW, LH
SLIDE DOOR WINDOW(LH
*FRG,SLIDE DOOR WINDOW(LH
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR WINDOW(LH
HIGH GRADE PACKAGE OR W(05S,06S) OR W/O(RR SEAT) OR *FRG,SIDE WINDOW(FR LH)
SIDE WINDOW(FR LH)
W/O(RR SEAT),SIDE WINDOW(FR LH)
W(05S,06S) OR W/O(RR SEAT) OR *FRG,SIDE WINDOW(FR LH)
W(08S,09S),SIDE WINDOW(FR LH)
SIDE WINDOW(FR LH)
62771CWEATHERSTRIP, SIDE WINDOW
SIDE WINDOW(FR,LH)
SIDE WINDOW(FR,RH)
SLIDE DOOR WINDOW(RH
SLIDE DOOR WINDOW(LH
62772CWEATHERSTRIP, SIDE REAR WINDOW
HIGH GRADE PACKAGE OR W/O(RR SEAT) OR W(0.5S,06S)
62774ASASH, SIDE DOOR WINDOW, CENTER
*FRG,SLIDE DOOR WINDOW(LH
SLIDE DOOR WINDOW(LH
SLIDE DOOR WINDOW(RH
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR WINDOW(LH
SIDE WINDOW(RR LH)
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
SIDE WINDOW(RR RH)
*FRG
62792APACKING, SIDE WINDOW LOCK, RH
SIDE WINDOW(FR LH)
SIDE WINDOW(RR LH)
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
*FRG,SLIDE DOOR WINDOW(LH
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR WINDOW(LH
62793BRETAINER, SIDE WINDOW LOCK, RH
SIDE WINDOW(RR LH)
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
*FRG,SLIDE DOOR WINDOW(LH
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR WINDOW(LH
62897TUBE, SIDE WINDOW GUARD
LH,L=1230
RH,L=2480
LH,L=1530
RH,L=2780
62910ELOCK ASSY, SIDE WINDOW
SIDE WINDOW(RR LH)
SLIDE DOOR WINDOW(LH
SIDE WINDOW(FR LH)
SIDE WINDOW(FR RH)
SLIDE DOOR WINDOW(RH
*FRG,SLIDE DOOR WINDOW(LH
CANARY ISLANDS SPEC OR *FRG,SLIDE DOOR WINDOW(LH
9014960027
main90149-60027
9015840002
main90158-40002
9015930005
main90159-30005
9016440050
main90164-40050
9018906018
main90189-06018
9020104008
main90201-04008
45 parts on this diagram · 1 diagram in section
