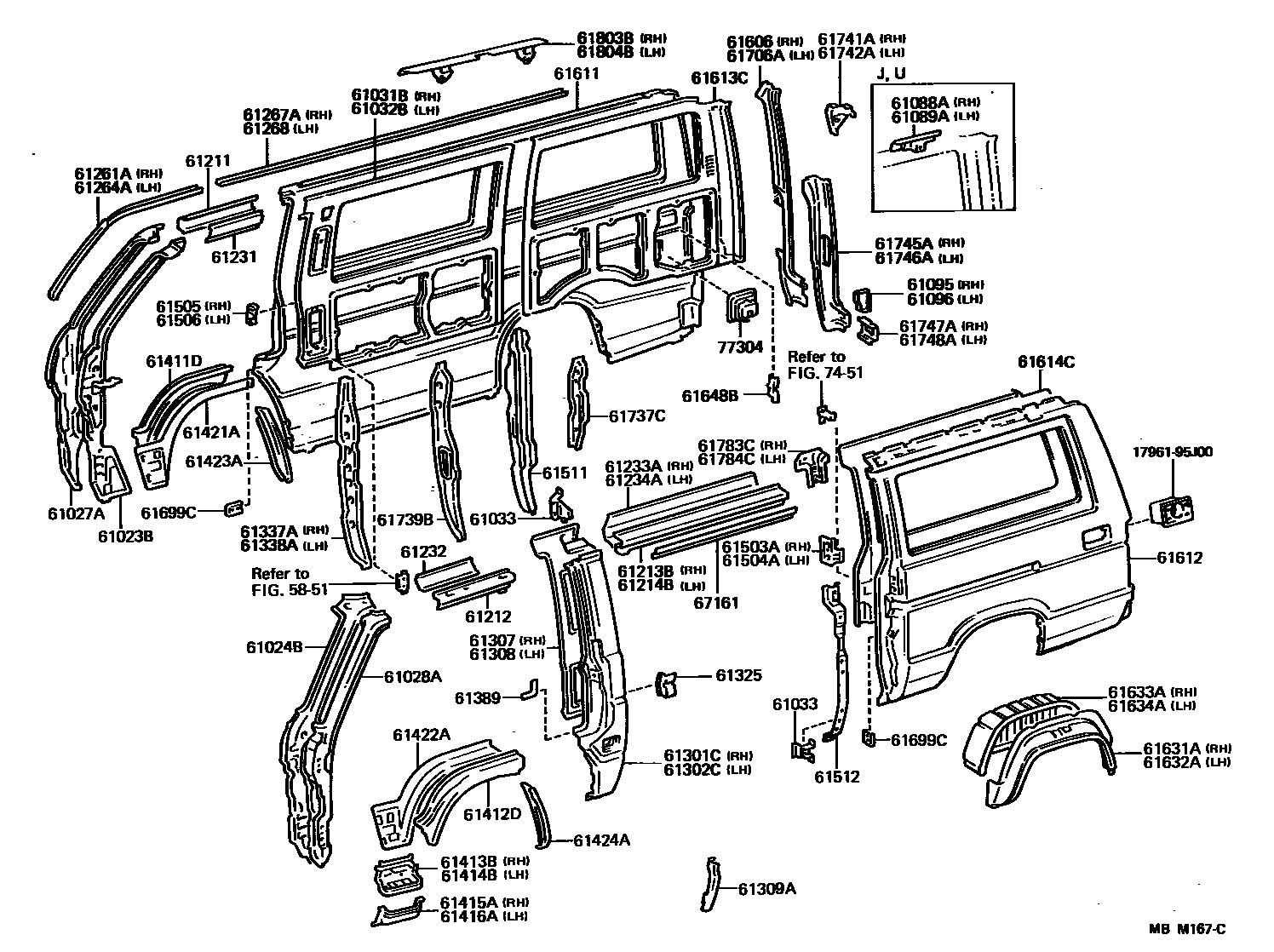

SIDE MEMBER
5851
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
W(RADIO)
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
W(RADIO)
61031BEXTENSION SUB-ASSY, QUARTER PANEL, RH
61032BEXTENSION SUB-ASSY, QUARTER PANEL, LH
W(08S,09S)
W(SEPARATOR=BOARD)
W(SEPARATOR=BOARD)
W(SEPARATOR=DETACHBLE BAR TYPE)
W(SEPARATOR=FIXED BAR TYPE)
HIGH GRADE PACKAGE
61033EXTENSION SUB-ASSY, QUARTER LOCK PILLAR
61088AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 RH
61089AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 LH
61095PLATE SUB-ASSY, BACK DOOR OPENING, LOWER RH
61096PLATE SUB-ASSY, BACK DOOR OPENING, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61231RAIL, ROOF SIDE, INNER RH
HIGH GRADE PACKAGE
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
HIGH GRADE PACKAGE
W/O(RR SEAT)
61234ARAIL, ROOF SIDE, INNER NO.2 LH
W/O(RR SEAT)
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
W/O(RR SEAT)
sub61301-95J12
W(MUDGUARD)
W(ELECTROMAGNETIC LOCK) & W(MUD GUARD)
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
W/O(RR SEAT)
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
W/O(RR SEAT)
W(08S,09S)
W(SEPARATOR=BOARD TYPE)
main61307-95J24iYH51..V4D..5H..03S;YH61..LHD..(4HC,5H)..03S;LH61,YH56,66..LHD..VSP..MTM198708-198808
W(SEPARATOR=FIXED BAR TYPE)
W(SEPARATOR=DETACHBLE BAR TYPE)
W(SEPARATOR=DETACHBLE BAR TYPE)
HIGH GRADE PACKAGE
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
W(SEPARATOR=BOARD TYPE)
W(SEPARATOR=DETACHBLE BAR TYPE)
61309ASEAL SUB-ASSY, CENTER BODY PILLAR
61325REINFORCEMENT, CENTER BODY PILLER, CENTER
61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH
61389PATCH, CENTER BODY PILLAR, OUTER
61411DPANEL, FENDER, OUTER RH
61412DPANEL, FENDER, OUTER LH
61413BPANEL, FRONT STEP, RH
61414BPANEL, FRONT STEP, LH
61415APANEL, FRONT STEP, UNDER, RH
61416APANEL, FRONT STEP UNDER, LH
61421APANEL, FENDER, INNER RH
61422APANEL, FENDER, INNER LH
61423APANEL, FENDER, INNER LOWER RH
61424APANEL, FENDER, INNER LOWER LH
61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH
61504AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
HIGH GRADE PACKAGE
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61613CPANEL SUB-ASSY, QUARTER, INNER REAR RH
W(SEPARATOR=DETACHBLE BAR TYPE)
W(SEPARATOR=DETACHBLE BAR TYPE)
HIGH GRADE PACKAGE
61614CPANEL SUB-ASSY, QUARTER, INNER REAR LH
W(SEPARATOR=DETACHBLE BAR TYPE)
W(SEPARATOR=DETACHBLE BAR TYPE)
HIGH GRADE PACKAGE
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61648BBRACKET, QUARTER PANEL PAD
61699CRETAINER, COURTESY SWITCH
61706AFRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
HIGH GRADE PACKAGE
61737CREINFORCEMENT, QUARTER, INNER
61739BREINFORCEMENT, EXTENSION QUARTER INNER PANEL
61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH
61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61747AEXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH
61748AEXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH
61783CBRACE, QUARTER PANEL, INNER RH
61784CBRACE, QUARTER PANEL, INNER LH
61803BREINFORCE SUB-ASSY, ROOF SIDE, OUTER RH
HIGH GRADE PACKAGE
61804BREINFORCE SUB-ASSY, ROOF SIDE, OUTER LH
HIGH GRADE PACKAGE
67161RETAINER, SLIDE DOOR W/STRIP SET, RH
7451
77304BOX SUB-ASSY, FUEL INLET
1796195J00INLET, COOL AIR
main17961-95J00
77 parts on this diagram · 3 diagrams in section
