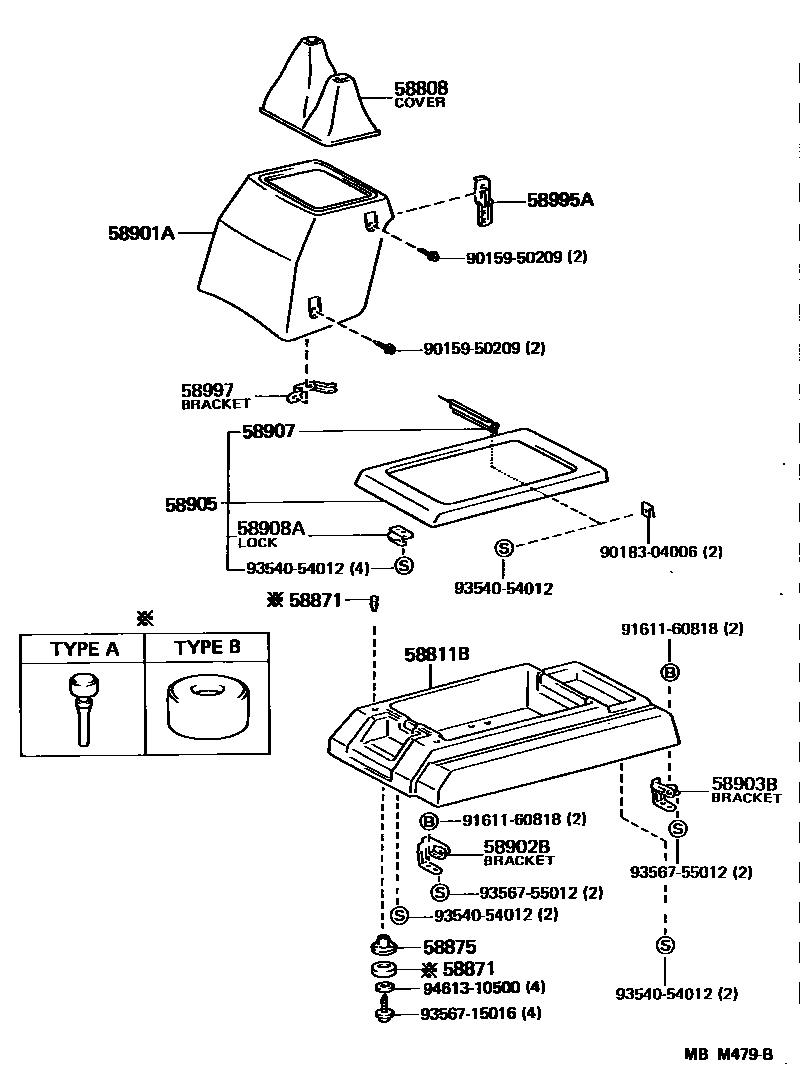

CONSOLE BOX & BRACKET
58808COVER SUB-ASSY, SHIFTING HOLE
58811BBOX, CONSOLE
HIGH GRADE PACKAGE,BLUE,TRIM8#
HIGH GRADE PACKAGE,BROWN,TRIM4#
58871CUSHION, CONSOLE BOX
HIGH GRADE PACKAGE,TYPE B
TYPE A
58875SPACER, CONSOLE BOX
HIGH GRADE PACKAGE
58901ABOX SUB-ASSY, CONSOLE, REAR
BROWN,TRIM4#
58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
HIGH GRADE PACKAGE
58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2
HIGH GRADE PACKAGE
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
HIGH GRADE PACKAGE,BLUE,TRIM8#
HIGH GRADE PACKAGE,BROWN,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
HIGH GRADE PACKAGE
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9015950209
main90159-50209
9018304006
main90183-04006
9161160818
main91611-60818
9354054012
main93540-54012
9356715016
main93567-15016
9356755012
main93567-55012
9461310500
main94613-10500
19 parts on this diagram · 2 diagrams in section
