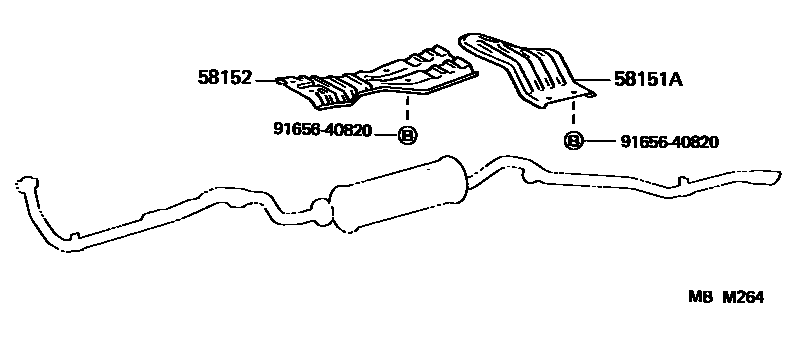

FLOOR INSULATOR

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-95J00iLH5#,6#,YH5#,6#198708-198908

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-95J00iLH51,61,YH51,61198708-198908

main58152-95J02iLH66,YH66198708-198908

main58152-95J03iLH56,YH56198708-198908

9165640820

main91656-40820

3 parts on this diagram · 1 diagram in section
