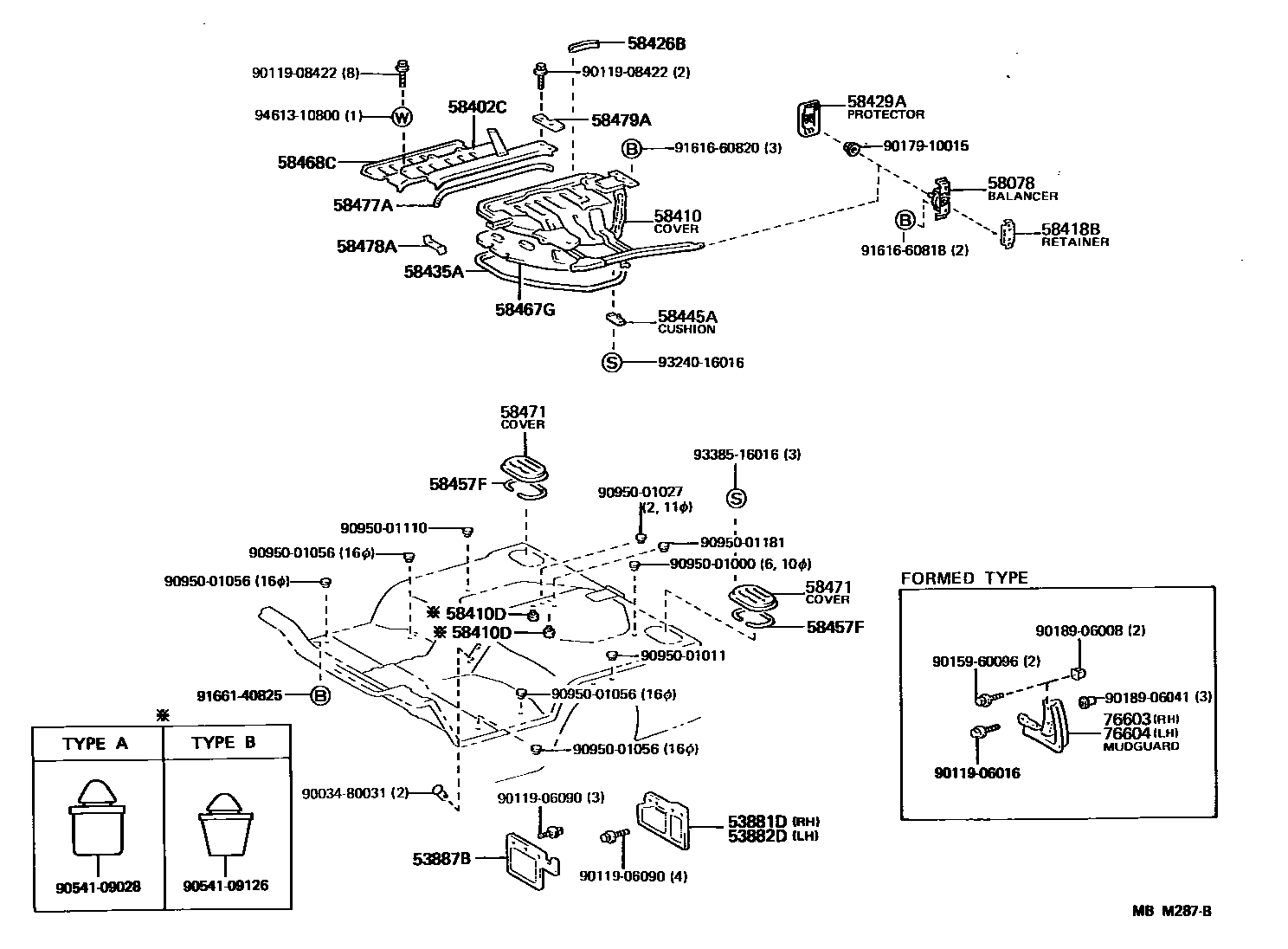

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

53881DMUDGUARD, FRONT RH

main53881-95J00iLH5#,6#,YH5#,6#198708-198908

53882DMUDGUARD, FRONT LH

main53882-95J00iLH5#,6#,YH5#,6#198708-198908

53887BMUDGUARD, FRONT NO.2

main53887-95J00iLH5#,6#,YH5#,6#198708-198908

58078BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER

main58078-95J00iLH5#,6#,YH5#,6#198708-198908

sub58078-95J01

main58078-95J02iYH51..U198709-198908

HIGH GRADE PACKAGE

58402CCOVER SUB-ASSY, ENGINE SERVICE HOLE SUB

main58402-95J07iLH51,61198708-198908

main58402-95J08iYH51,61198708-198908

main58407-95J04iYH56,66198708-198908

main58407-95J05iLH56,66198708-198908

58410COVER, ENGINE SERVICE HOLE

main59208-95J01iLH51,61,YH51,61198708-198908

main59208-95J07iLH56,66,YH56,66198708-198908

main59208-95J15iYH51..U198709-198908

HIGH GRADE PACKAGE

58410DCUSHION, NO.1

main90541-09028iLH5#,6#,YH5#,6#198708-198908

TYPE A

main90541-09126iLH5#,6#,YH5#,6#198708-198908

TYPE B

58418BRETAINER, ENGINE COVER HINGE, SIDE

main58418-95J01iYH61..15S;LH5#,6#,YH5#,6#..LHD..V4D198708-198908

58426BPROTECTOR, ENGINE SUB COVER

main58426-95700iLH5#,6#,YH51,61..4HC,5F198708-198908

58429APROTECTOR, ENGINE MAIN COVER HINGE

main58429-95J01-14iYH51..U198710-198908

BLUE,TRIM8#

sub58429-95J01

main58429-95J01-16iLH5#,6#,YH5#,6#198708-198908

BROWN,TRIM4#

sub58429-95J01

58435APACKING, ENGINE MAIN COVER

main58435-95J01iLH5#,6#,YH5#,6#198708-198908

58445ACUSHION, ENGINE SERVICE HOLE COVER

main58445-95400iLH5#,6#,YH5#,6#198708-198908

58457FPACKING, SEAT FLOOR SERVICE HOLE

main58457-95J00iLH5#,6#,YH5#,6#198708-198908

58467GSILENCER, ENGINE MAIN COVER

main58471-95J06iLH56,66,YH56,66198708-198908

main58471-95J07iLH51,61,YH51,61198708-198908

58468CSILENCER, ENGINE SUB COVER

main58468-95J03iLH51,61198708-198908

main58472-95J01iLH56,66,YH56,66198708-198908

main58472-95J02iYH51,61198708-198908

58471COVER, SEAT FLOOR SERVICE HOLE

main58407-95J01iLH5#,6#,YH5#,6#198708-198908

RH

main58471-95J03iLH5#,6#,YH5#,6#198708-198908

LH

58477APACKING, ENGINE SUB COVER, NO.1

main58477-95J00iLH5#,6#,YH5#,6#198708-198908

sub58444-95J01

58478APACKING, ENGINE SUB COVER, NO.2

main58478-95J00iLH5#,6#,YH5#,6#198708-198908

58479APACKING, ENGINE SUB COVER, NO.3

main58479-95J01iLH5#,6#,YH5#,6#198708-198908

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-95J01iLH5#,6#,YH5#,6#198708-198908

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-95J01iLH5#,6#,YH5#,6#198708-198908

9003480031

main90034-80031

9011906016

main90119-06016

9011906090

main90119-06090

9011908422

main90119-08422

9015960096

main90159-60096

9017910015

main90179-10015

9018906008

main90189-06008

9018906041

main90189-06041

9054109028

main90541-09028

9054109126

main90541-09126

9095001000

main90950-01000

9095001011

main90950-01011

9095001027

main90950-01027

9095001056

main90950-01056

9095001110

main90950-01110

9095001181

main90950-01181

9161660818

main91616-60818

9161660820

main91616-60820

9166140825

main91661-40825

9324016016

main93240-16016

9338516016

main93385-16016

9461310800

main94613-10800

43 parts on this diagram · 2 diagrams in section
