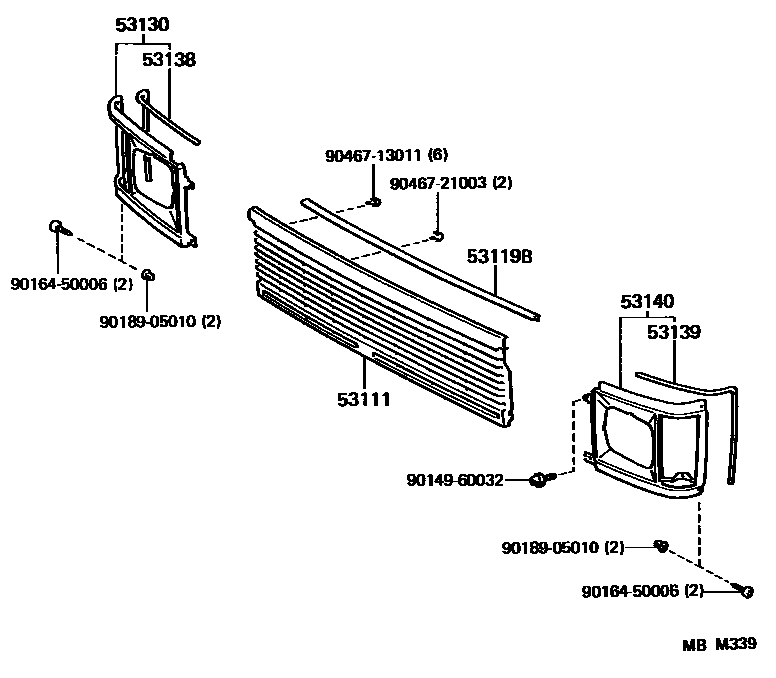

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-95J09iLH5#,6#,YH5#,6#198708-198908

main53111-95J14iYH51..U198709-198908

HIGH GRADE PACKAGE

53119BPROTECTOR, RADIATOR GRILLE

main53119-95J02iLH5#,6#,YH5#,6#198708-198908

53130ORNAMENT ASSY, HEADLAMP, RH

main53130-95J05iLH5#,6#,YH5#,6#198708-198908

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-95J03iLH5#,6#,YH5#,6#198708-198908

53139PROTECTOR, HEADLAMP DOOR, LH

main53138-95J03iLH5#,6#,YH5#,6#198708-198908

53140ORNAMENT ASSY, HEADLAMP, LH

main53140-95J05iLH5#,6#,YH5#,6#198708-198908

9014960032

main90149-60032

9016450006

main90164-50006

9018905010

main90189-05010

9046713011

main90467-13011

9046721003

main90467-21003

11 parts on this diagram · 2 diagrams in section
