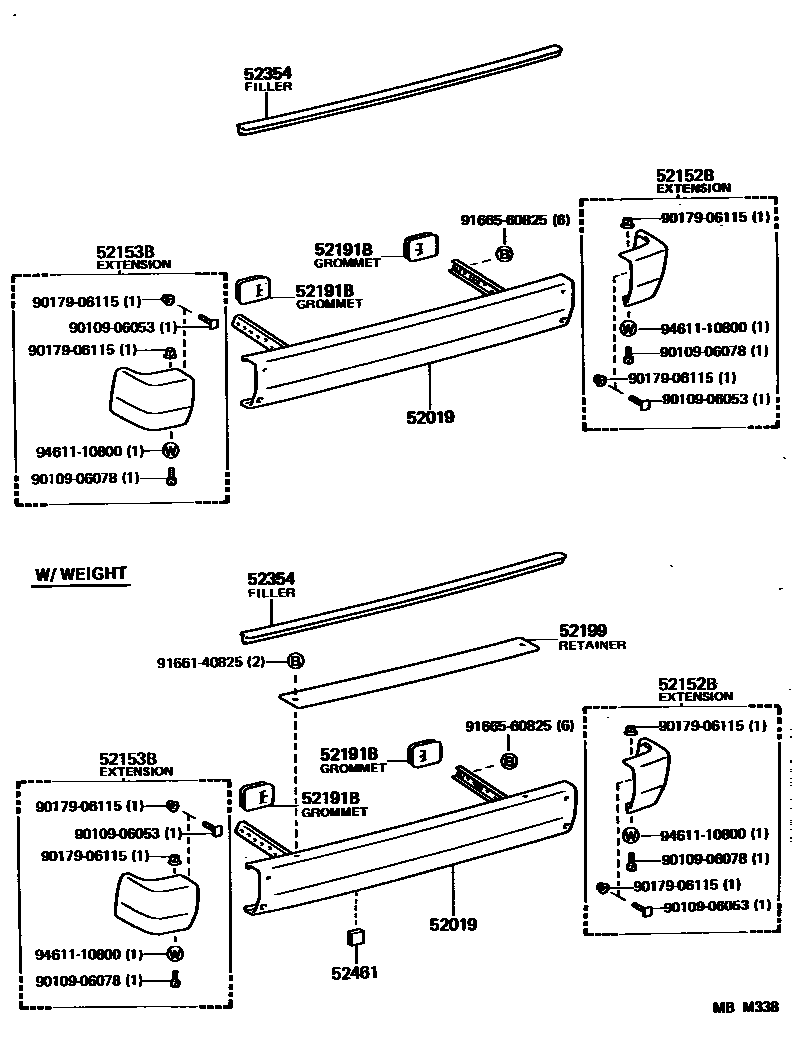

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52019BAR SUB-ASSY, REAR BUMPER

main52019-95J17iYH61;YH51..V5D;LH51,YH51..VSG;LH56,6#,YH56,66..02S,03S,R,U¥35,100198708-198908

sub52019-95J21¥38,700

main52019-95J21iLH51..VSP;LH6#,YH66..J;YH51..V4D..03S¥38,700198708-198908

SWEDEN SPEC

main52019-95J21iLH51..VSP;LH6#,YH66..J;YH51..V4D..03S¥38,700198708-198908

BELGIUM SPEC & W(0.8S,0.9S)

52152BEXTENSION, REAR BUMPER, RH

main52165-29015iLH5#,6#,YH5#,6#¥9,100198708-198908

52153BEXTENSION, REAR BUMPER, LH

main52166-29015iLH5#,6#,YH5#,6#¥9,100198708-198908

52191BGROMMET, REAR BUMPER STAY

main52191-95A00iLH5#,6#,YH5#,6#¥440198708-198908

52199WEIGHT, REAR BUMPER

main52199-95J01iLH51..VSP;LH6#,YH66..J;YH51..V4D..03S¥22,600198708-198908

SWEDEN SPEC

main52199-95J01iLH51..VSP;LH6#,YH66..J;YH51..V4D..03S¥22,600198708-198908

BELGIUM SPEC

52354SHUTTER, REAR CROSS TO BUMPER

main52354-95J00iLH5#,6#,YH5#,6#¥4,600198708-198908

main52354-95J01iYH51..U¥2,030198709-198908

HIGH GRADE PACKAGE

52461PAD, REAR BUMPER, CENTER

main52461-95J01iLH51..VSP;LH6#,YH66..J;YH51..V4D..03S¥510198708-198908

SWEDEN SPEC

main52461-95J01iLH51..VSP;LH6#,YH66..J;YH51..V4D..03S¥510198708-198908

BELGIUM SPEC

9010906053

main90109-06053¥200

9010906078

main90109-06078¥160

9017906115

main90179-06115¥120

9166140825

main91661-40825¥120

9166560825

main91665-60825¥170

9461110800

main94611-10800¥80

13 parts on this diagram · 2 diagrams in section
