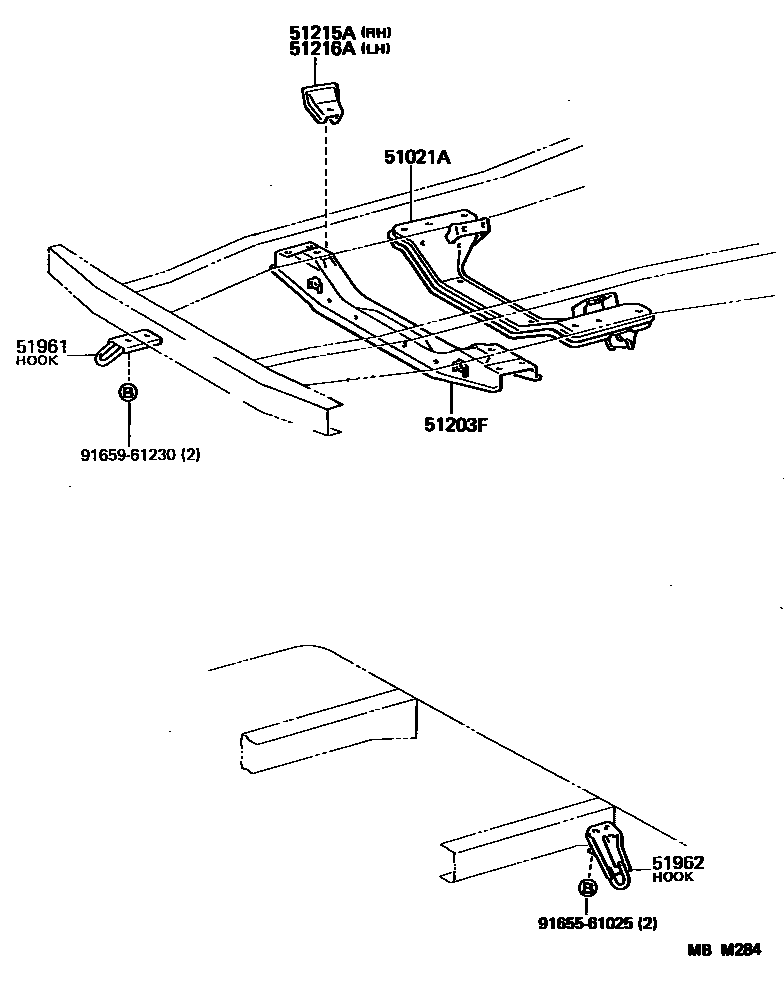

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-95J04iYH51,61198708-198908

main51021-95J05iLH51,61198708-198908

main51021-95J06iLH56,66198708-198908

main51021-95J07iYH56,66198708-198908

51203FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-95J01iLH51,61,YH51,61198708-198908

main51203-95J05iLH56,66,YH56,66198708-198908

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-95J00iLH51,61,YH51,61198708-198908

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51216-95J00iLH51,61,YH51,61198708-198908

51961HOOK, NO.1

main51961-26091iYH51..U198708-198908

NORWAY SPEC,LH

main51961-26110iLH5#,6#,YH5#,6#198708-198908

main51970-95J00iLH56,66,YH56,66198708-198908

RH

51962HOOK, NO.2

main51965-26010iLH51..U;LH51..LHD..V4D..VSP..5H;LH56,61,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

9165561025

main91655-61025

9165961230

main91659-61230

8 parts on this diagram · 2 diagrams in section
