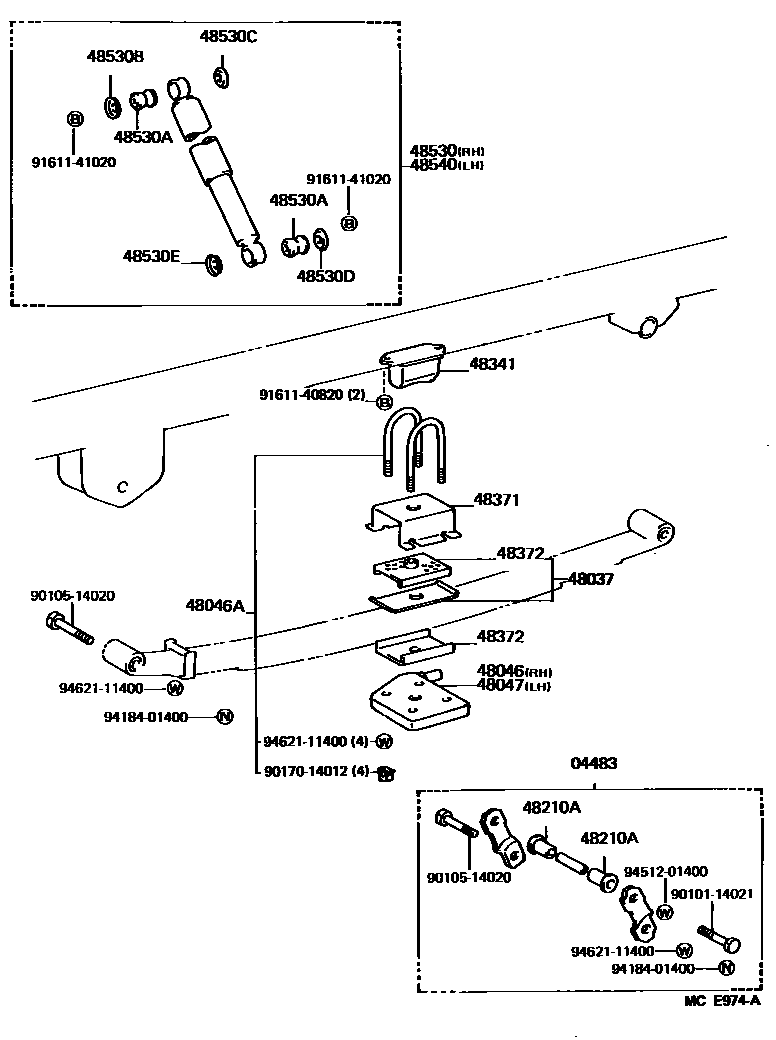

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1

04483SHACKLE KIT, REAR SPRING

main04483-26021iLH56,66,YH56,66198708-198908

main04483-26061iLH51,61,YH51,61198708-198908

48037SPACER SUB-ASSY, REAR SPRING

main48037-26030iLH66,YH66;LH5#,61,YH5#,61..02S,03S,15S,R,U198708-198908

main48037-26050iLH61,YH51,61..J198708-198908

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26090iLH5#,6#,YH5#,6#198708-198908

48046ABOLT, U(FOR REAR SPRING)

main90117-14027iLH51,61,YH51,61..03S,15S,R,U198708-198908

L=160

main90117-14050iLH56,66,YH56,66198708-198908

L=172

sub90117-14029

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-26080iLH5#,6#,YH5#,6#198708-198908

48210SPRING ASSY, REAR RH

main48210-26250iLH51,YH51..03S,R,U198708-198908

main48210-26260iLH61,YH61..03S,15S,R,U198708-198908

main48210-26320iLH61,YH51,61..J198708-198908

main48210-26460iYH66..J198708-198808

SWITZERLAND SPEC

main48210-26460iLH56,66,YH56,66..02S,R,U198708-198908

main48210-26470iLH66,YH66..J198708-198908

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18008iLH51,61,YH51,61198708-198908

main90385-18046iLH56,66,YH56,66198708-198908

48341BUMPER, REAR SPRING

main48341-26010iLH51,61,YH51,61198708-198908

main48341-26020iLH56,66,YH56,66198708-198908

48371RETAINER, REAR SPRING PAD

main48371-26050iLH51,61,YH51,61..03S,15S,R,U198708-198908

main48371-26060iLH61,YH51,61..J198708-198908

main48371-26110iLH56,66,YH56,66198708-198908

48372PAD, REAR SPRING

main48372-26030iLH66,YH66;LH5#,61,YH5#,61..02S,03S,15S,R,U198708-198908

main48372-26040iLH61,YH51,61..J198708-198908

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80043iLH61,YH51,61..J198708-198908

sub48531-80479

main48531-80044iLH51,61,YH51,61..03S,15S,R,U198708-198908

sub48531-80480

main48531-80135iLH56,66,YH56,66198708-198908

sub48531-80483

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16009iLH5#,6#,YH5#,6#198708-198908

UPR

main90385-19006iLH5#,6#,YH5#,6#198708-198908

LWR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03012iLH5#,6#,YH5#,6#198708-198908

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLH5#,6#,YH5#,6#198708-198908

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03015iLH5#,6#,YH5#,6#198708-198908

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03011iLH5#,6#,YH5#,6#198708-198908

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80043iLH61,YH51,61..J198708-198908

sub48531-80479

main48531-80044iLH51,61,YH51,61..03S,15S,R,U198708-198908

sub48531-80480

main48531-80135iLH56,66,YH56,66198708-198908

sub48531-80483

9010114021

main90101-14021

9010514020

main90105-14020

9017014012

main90170-14012

9161140820

main91611-40820

9161141020

main91611-41020

9418401400

main94184-01400

9451201400

main94512-01400

9462111400

main94621-11400

25 parts on this diagram · 5 diagrams in section
