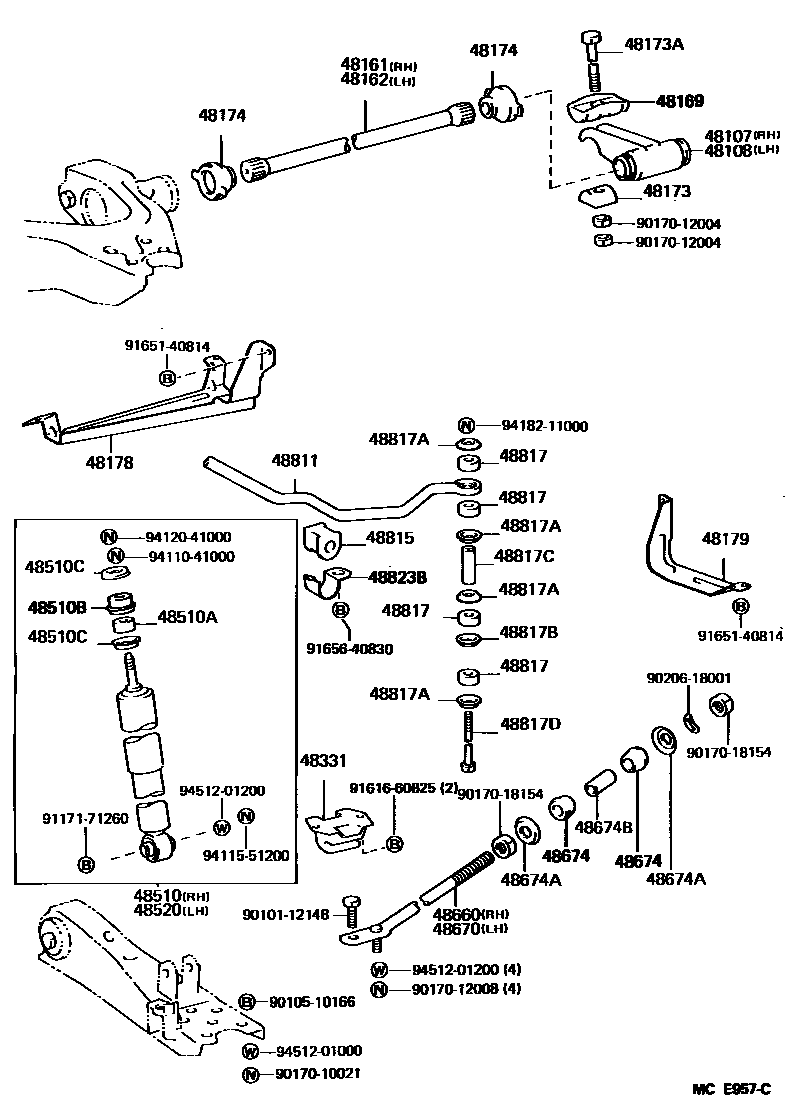

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-26010iLH51,61,YH51,61198708-198908

main48107-26030iLH56,66,YH56,66198708-198908

48108ARM SUB-ASSY, ANCHOR, LH

main48108-26010iLH51,61,YH51,61198708-198908

main48108-26030iLH56,66,YH56,66198708-198908

48161SPRING, TORSION BAR, RH

main48161-26020iYH51198708-198908

main48161-26040iLH51,61,YH61198708-198908

main48161-26090iLH66..J;YH56,66198708-198908

main48161-26100iLH56,66..02S,U198708-198908

48162SPRING, TORSION BAR, LH

main48162-26020iYH51198708-198908

main48162-26040iLH51,61,YH61198708-198908

main48162-26090iLH66..J;YH56,66198708-198908

main48162-26100iLH56,66..02S,U198708-198908

48169SWIVEL, ANCHOR ARM

main48169-26010iLH51,61,YH51,61198708-198908

main48169-26030iLH56,66,YH56,66198708-198908

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iLH5#,6#,YH5#,6#198708-198908

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12091iLH5#,6#,YH5#,6#198708-198908

48174COVER, TORSION BAR DUST

main48174-26010iLH51,61,YH51,61198708-198908

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-26010iLH51,61..4HC198708-198908

48179PROTECTOR, TORSION BAR DUST COVER, LH

main48179-26010iYH51,61198708-198908

main48179-26030iYH56,66198708-198908

48331BUMPER, FRONT SPRING, NO.1

main48331-26010iLH51,61,YH51,61198708-198908

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29425iLH51,61,YH51,61198708-198908

sub48511-29415

main48511-29445iLH56,66,YH56,66198708-198908

sub48511-29446

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iLH5#,6#,YH5#,6#198708-198908

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-01035iLH5#,6#,YH5#,6#198708-198908

sub90948-01031

sub90948-02017

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLH5#,6#,YH5#,6#198708-198908

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29425iLH51,61,YH51,61198708-198908

sub48511-29415

main48511-29445iLH56,66,YH56,66198708-198908

sub48511-29446

48660BAR ASSY, STRUT, RH

main48660-26011iLH51,61,YH51,61198708-198908

48670BAR ASSY, STRUT, LH

main48670-26011iLH51,61,YH51,61198708-198908

48674CUSHION, STRUT BAR

main48674-26010iLH51,61,YH51,61198708-198712

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02062iLH51,61,YH51,61198708-198908

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18005iLH51,61,YH51,61198708-198908

48811BAR, STABILIZER, FRONT

main48811-26040iLH51,61,YH51,61198708-198908

main48811-26070iLH56,66,YH56,66198708-198908

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-26020iLH51,61,YH51,61198708-198908

main48815-26050iLH56,66,YH56,66198708-198908

48817CUSHION, FRONT STABILIZER

main90948-01002iLH51,61,YH51,61198708-198908

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iLH5#,6#,YH5#,6#198708-198908

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iLH51,61,YH51,61198708-198908

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14004iLH51,61,YH51,61198708-198908

48817DBOLT(FOR FRONT STABILIZER)

main90101-10090iLH51,61,YH51,61198708-198908

main91121-51080iLH56,66,YH56,66198708-198908

48823BCOVER, FRONT STABILIZER BRACKET

main48823-26040iLH56,66,YH56,66198708-198908

main48823-26060iLH51,61,YH51,61198708-198908

9010112148

main90101-12148

9010510166

main90105-10166

9017010021

main90170-10021

9017012004

main90170-12004

9017012008

main90170-12008

9017018154

main90170-18154

9020618001

main90206-18001

9117171260

main91171-71260

9161660825

main91616-60825

9165140814

main91651-40814

9165640830

main91656-40830

9411041000

main94110-41000

9411551200

main94115-51200

9412041000

main94120-41000

9418211000

main94182-11000

9451201000

main94512-01000

9451201200

main94512-01200

46 parts on this diagram · 2 diagrams in section
