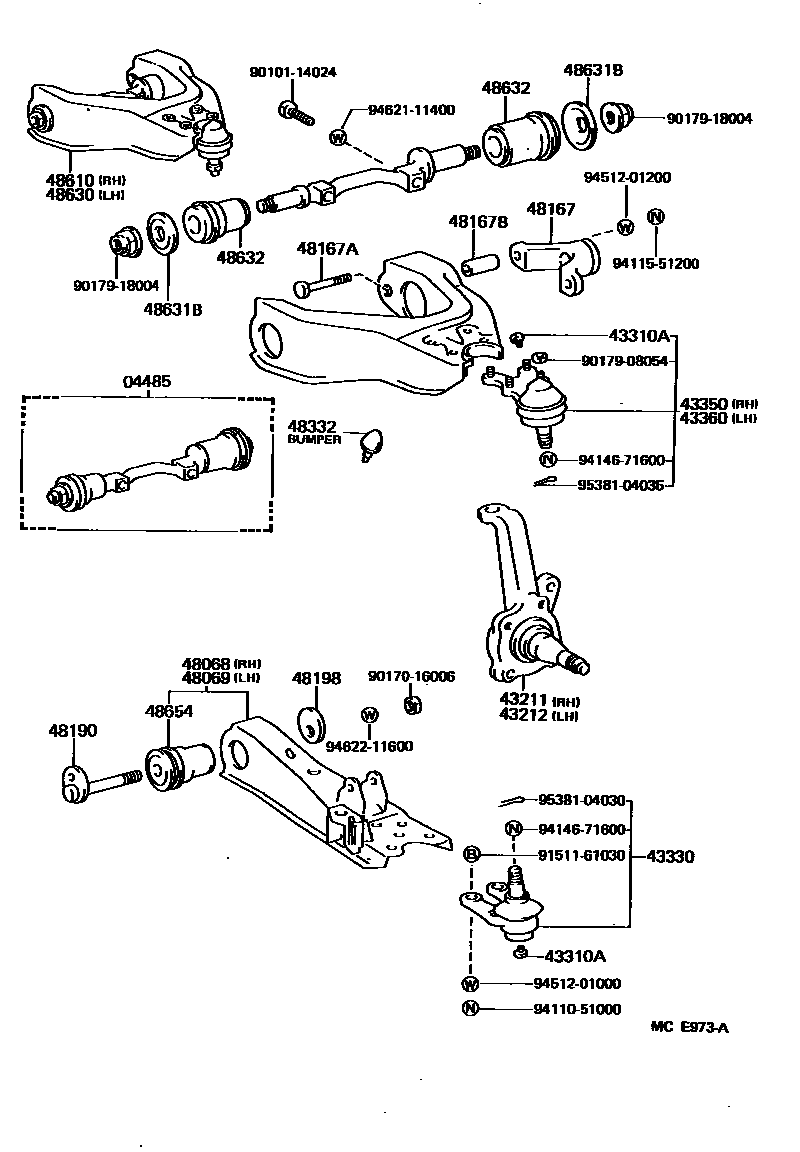

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-26040iLH51,61,YH51,61198708-198908

sub04485-26050

43211KNUCKLE, STEERING, RH

main43201-26010iLH56..02S198708-198908

sub43201-26030

main43211-26051iYH61..U198708-198908

43212KNUCKLE, STEERING, LH

main43202-26010iLH56..02S198708-198908

sub43202-26030

main43212-26021iYH61..U198708-198908

43310APLUG (FOR BALL JOINT)

main90345-06014iLH5#,6#,YH5#,6#198708-198908

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29155iYH51..LHD;LH51,61,YH61198708-198908

sub43330-29535

main43330-29215iLH56,66,YH56,66198808-198908

main43330-39195iLH56,66,YH56,66198708-198808

RH

main43340-39175iLH56,66,YH56,66198708-198808

LH

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29056iLH51,61,YH51,61198708-198908

43360JOINT ASSY, FRONT UPPER BALL, LH

main43360-29076iLH51,61,YH51,61198708-198908

sub43350-29056

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26022iLH51,61,YH51,61198708-198908

main48068-26030iLH56,66,YH56,66198708-198908

sub48068-26060

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26022iLH51,61,YH51,61198708-198908

main48069-26030iLH56,66,YH56,66198708-198908

sub48069-26060

48167ARM, TORQUE

main48106-26011iLH51,61,YH51,61198708-198908

main48106-26020iLH56,66,YH56,66198708-198908

sub48106-25020

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-12131iLH51,61,YH51,61198708-198908

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-20010iLH51,61,YH51,61198708-198908

48190CAM ASSY, CAMBER ADJUST

main48190-26010iLH51,61,YH51,61198708-198908

sub48190-26020

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iLH51,61,YH51,61198708-198908

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iLH5#,6#,YH5#,6#198708-198908

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-26031iLH51,61,YH51,61198708-198908

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-26031iLH51,61,YH51,61198708-198908

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02065iLH51,61,YH51,61198708-198908

RR

main90948-02066iLH51,61,YH51,61198708-198908

FR

sub90948-02142

48632BUSH, UPPER ARM

main48632-26010iLH51,61,YH51,61198708-198908

FR

main48635-26010iLH51,61,YH51,61198708-198908

RR

48654BUSH, LOWER ARM

main48061-26010iLH51,61,YH51,61198708-198908

main48061-35011iLH56,66,YH56,66198708-198908

9010114024

main90101-14024

9017016006

main90170-16006

9017908054

main90179-08054

9017918004

main90179-18004

9151161030

main91511-61030

9411051000

main94110-51000

9411551200

main94115-51200

9414671600

main94146-71600

9451201000

main94512-01000

9451201200

main94512-01200

9462111400

main94621-11400

9462211600

main94622-11600

9538104030

main95381-04030

9538104035

main95381-04035

34 parts on this diagram · 2 diagrams in section
