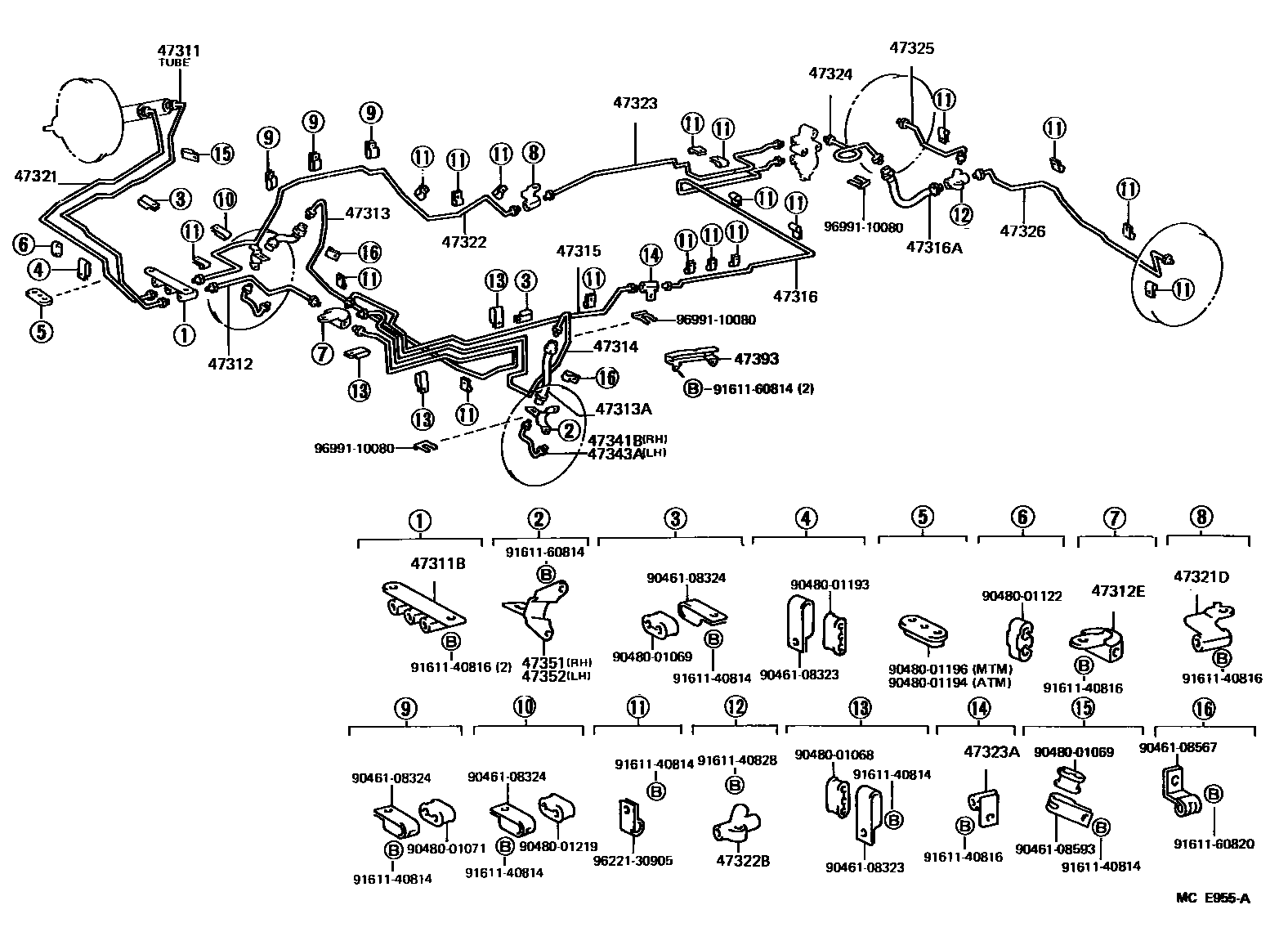

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26280iLH51,61,YH51,61..RHD198708-198908

main47311-26290iLH5#,6#,YH5#,6#..LHD198708-198908

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10100iLH51,61,YH51,61..4HC198708-198908

main90412-10105iLH5#,6#,YH5#,6#..MTM198708-198908

47312TUBE, FRONT BRAKE, NO.2

main47312-26171iLH51,61,YH51,61198708-198908

main47312-26230iLH56,66,YH56,66198708-198908

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90414-10012iLH5#,6#,YH5#,6#198708-198908

47313TUBE, FRONT BRAKE, NO.3

main47313-26091iLH51,61,YH51,61198708-198908

main47313-26120iLH56,66,YH56,66198708-198908

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02477iLH51,61,YH51,61198708-198908

main90947-02502iLH56,66198708-198908

main90947-02534iYH56,66198708-198908

sub90947-02928

47314TUBE, FRONT BRAKE, NO.4

main47314-26081iLH51,61,YH51,61198708-198908

main47314-26120iLH56,66,YH56,66198708-198908

47315TUBE, FRONT BRAKE, NO.5

main47315-26072iLH51,61,YH51,61198708-198908

main47315-26100iLH56,66,YH56,66198708-198908

47316TUBE, FRONT BRAKE, NO.6

main47316-26091iLH5#,YH5#198708-198908

main47316-26101iLH6#,YH6#198708-198908

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02535iYH56,66198708-198908

sub90947-02927

main96940-33205iLH51,61,YH51,61198708-198908

main96940-33505iLH56,66198708-198908

47321TUBE, REAR BRAKE, NO.1

main47321-26190iLH51,61,YH51,61..RHD198708-198908

main47321-26200iLH5#,6#,YH5#,6#..LHD198708-198908

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10103iLH5#,6#,YH5#,6#198708-198908

47322TUBE, REAR BRAKE, NO.2

main47322-26092iLH51,61,YH51,61198708-198908

main47322-26150iLH56,66,YH56,66198708-198908

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10147iLH5#,6#,YH5#,6#198708-198908

47323TUBE, REAR BRAKE, NO.3

main47323-26171iLH5#,YH5#198708-198908

main47323-26211iLH6#,YH6#198708-198908

47323AWAY, NO.3(FOR REAR BRAKE TUBE)

main90412-10006iLH5#,6#,YH5#,6#198708-198908

47324TUBE, REAR BRAKE, NO.4

main47324-26101iLH5#,6#,YH5#,6#198708-198908

47325TUBE, REAR BRAKE, NO.5

main47325-26151iLH51,61,YH51,61198708-198908

main47325-26220iLH56,66,YH56,66198708-198908

47326TUBE, REAR BRAKE, NO.6

main47326-26131iLH51,61,YH51,61198708-198908

main47326-26210iLH56,66,YH56,66198708-198908

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26060iLH51,61,YH51,61198708-198908

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26060iLH51,61,YH51,61198708-198908

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26070iLH51,61,YH51,61198708-198908

main47351-26090iLH56,66,YH56,66198708-198908

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26070iLH51,61,YH51,61198708-198908

main47352-26090iLH56,66,YH56,66198708-198908

47393INSULATOR, BRAKE TUBE HEAT

9046108323

main90461-08323

9046108324

main90461-08324

9046108567

main90461-08567

9046108593

main90461-08593

9048001068

main90480-01068

9048001069

main90480-01069

9048001071

main90480-01071

9048001122

main90480-01122

9048001193

main90480-01193

9048001194

main90480-01194

9048001196

main90480-01196

9048001219

main90480-01219

9161140814

main91611-40814

9161140816

main91611-40816

9161140828

main91611-40828

9161160814

main91611-60814

9161160820

main91611-60820

9622130905

main96221-30905

9699110080

main96991-10080

43 parts on this diagram · 3 diagrams in section
