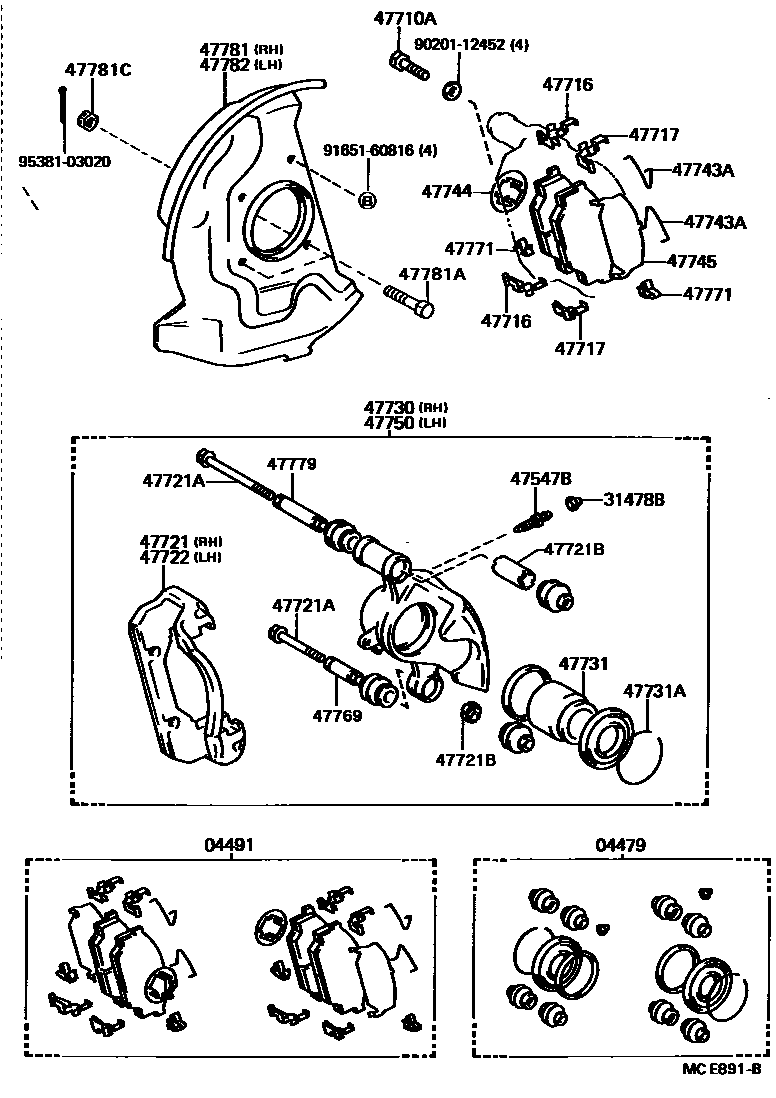

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26030iLH56,66,YH56,66198708-198908

main04479-40010iLH51,61,YH51,61198708-198908

sub04479-35050

04491PAD KIT, DISC BRAKE, FRONT

main04491-26151iLH51,61,YH51,61..15S,U198708-198808

sub04465-26210

main04491-26170iLH56,66,YH56,66198708-198808

sub04465-26250

main04491-26191iLH51,61..LHD..VSP..5H198801-198808

DENMARK SPEC

sub04465-26100

main04491-26191iYH61..U198708-198808

SWEDEN SPEC

sub04465-26100

main04491-26191iLH51,61,YH51,61..03S,J,R198806-198908

sub04465-26100

main04491-26210iLH56..02S198801-198806

DENMARK SPEC

sub04465-26170

main04491-26210iLH56,66,YH56,66..02S,J,R198806-198908

sub04465-26170

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLH5#,6#,YH5#,6#198708-198908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iLH5#,6#,YH5#,6#198708-198908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132iLH51,61,YH51,61..03S,J,R198708-198908

*12-1.25P-31X20

main90101-12149iLH56,66,YH56,66..02S,J,R198708-198908

*12-1.25P-41X20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26030iLH56,66,YH56,66198708-198908

sub47716-26050

main47716-40010iLH51,61,YH51,61..03S,J,R198708-198908

sub47716-26040

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26030iLH56,66,YH56,66198708-198908

main47717-40010iLH61..U198708-198908

sub47717-26010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iLH61..U198708-198908

main47721-26070iLH56,66,YH56,66198708-198908

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iYH61..U198708-198908

*10-1.25PX65.5-30

main90119-10249iLH61..U198708-198908

*10-1.25PX95.5-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iYH61..U198708-198908

main90387-16005iLH51,61,YH51,61..03S,J,R198708-198908

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iYH61..U198708-198908

main47721-26070iLH56,66,YH56,66198708-198908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26080iLH61..U198708-198908

main47730-26100iLH56,66,YH56,66..02S,J,R198708-198908

47731PISTON, FRONT DISC BRAKE

main47731-25010iLH56,66,YH56,66..02S,J,R198708-198908

main47731-40010iLH51,61,YH51,61198708-198908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-70001iLH51,61,YH51,61198708-198908

main90522-76001iLH56,66,YH56,66198708-198908

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-26030iLH56,66,YH56,66..02S,J,R198708-198908

main47743-40020iYH61..U198708-198908

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26020iYH61..U198708-198908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-26030iLH56,66,YH56,66..02S,J,R198708-198908

main47745-40020iLH61..U198708-198908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26080iLH51,61,YH51,61198708-198908

main47750-26100iLH56,66,YH56,66198708-198908

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iLH5#,6#,YH5#,6#..02S,03S,J,R198708-198908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26030iLH56,66,YH56,66..02S,J,R198708-198908

main47771-35010iYH61..U198708-198908

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iLH61..U198708-198908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-26040iLH51,61,YH51,61198708-198908

main47781-26050iLH56,66,YH56,66198708-198908

sub47781-26051

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12005iLH51,61,YH51,61198708-198908

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12004iLH51,61,YH51,61198708-198908

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-26040iLH51,61,YH51,61198708-198908

main47782-26050iLH56,66,YH56,66198708-198908

sub47782-26051

9020112452

main90201-12452

9165160816

main91651-60816

9538103020

main95381-03020

28 parts on this diagram · 3 diagrams in section
