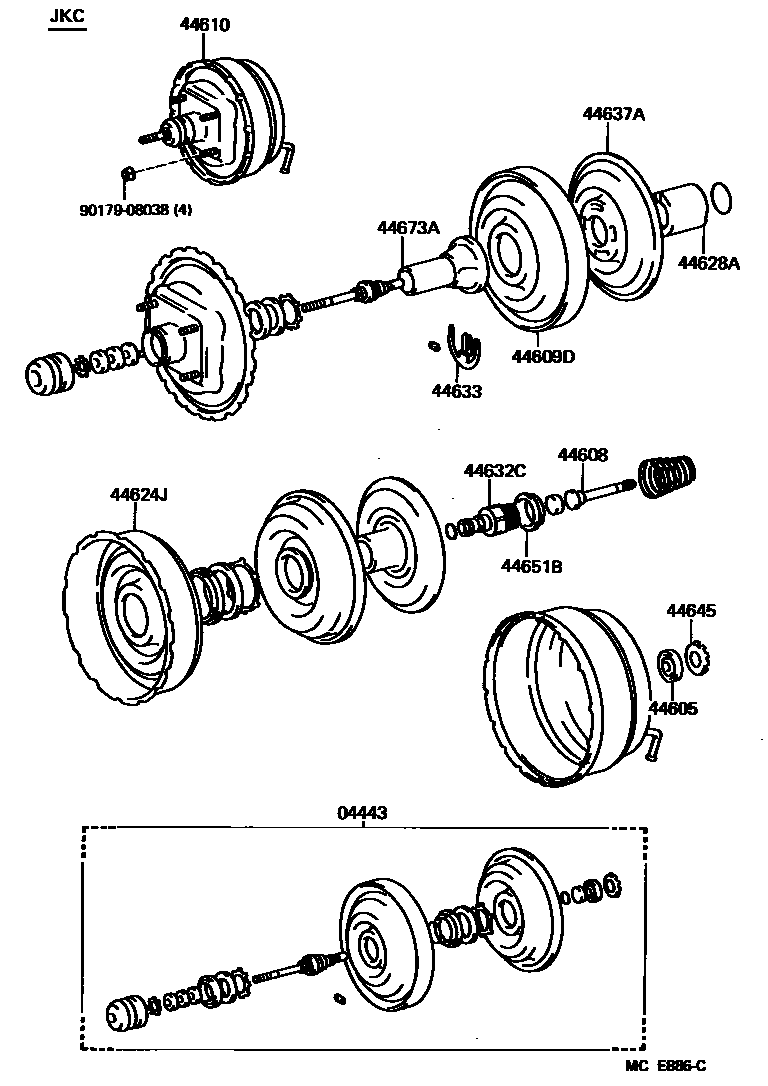

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04443BOOSTER KIT, BRAKE

main04443-26330iLH56,66..02S,J198708-198908

main04443-26340iYH56,66..02S,J,R198708-198908

main04443-26370iYH51,61..V198708-198908

main04443-26380iLH51,61198708-198908

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-30350iLH51,61,YH51,61198708-198908

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-17090iLH51,61,YH51,61198708-198908

44609DPLATE & RETAINER SUB-ASSY, BOOSTER

main44609-17090iLH51,61,YH51,61198708-198908

44610BOOSTER ASSY, BRAKE

main44610-26350iLH56,66198708-198908

main44610-26360iYH56,66198708-198908

main44610-26370iLH51,61,YH51,61198708-198908

44624JPLATE, BOOSTER CENTER

main44624-20810iLH51,61,YH51,61198708-198908

44628ABODY, BOOSTER CENTER

main44628-20810iLH51,61,YH51,61198708-198908

44632CPLATE, REACTION

main44632-22620iLH51,61,YH51,61198708-198908

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iLH51,61,YH51,61198708-198908

44637APLATE, BOOSTER DIAPHRAGM

main44637-20810iLH51,61,YH51,61198708-198908

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iLH51,61,YH51,61198708-198908

44651BNUT, BOOSTER

main44651-20810iLH51,61,YH51,61198708-198908

44673ABODY, BOOSTER VALVE

main44673-20810iLH51,61,YH51,61198708-198908

9017908038

main90179-08038

14 parts on this diagram · 7 diagrams in section
