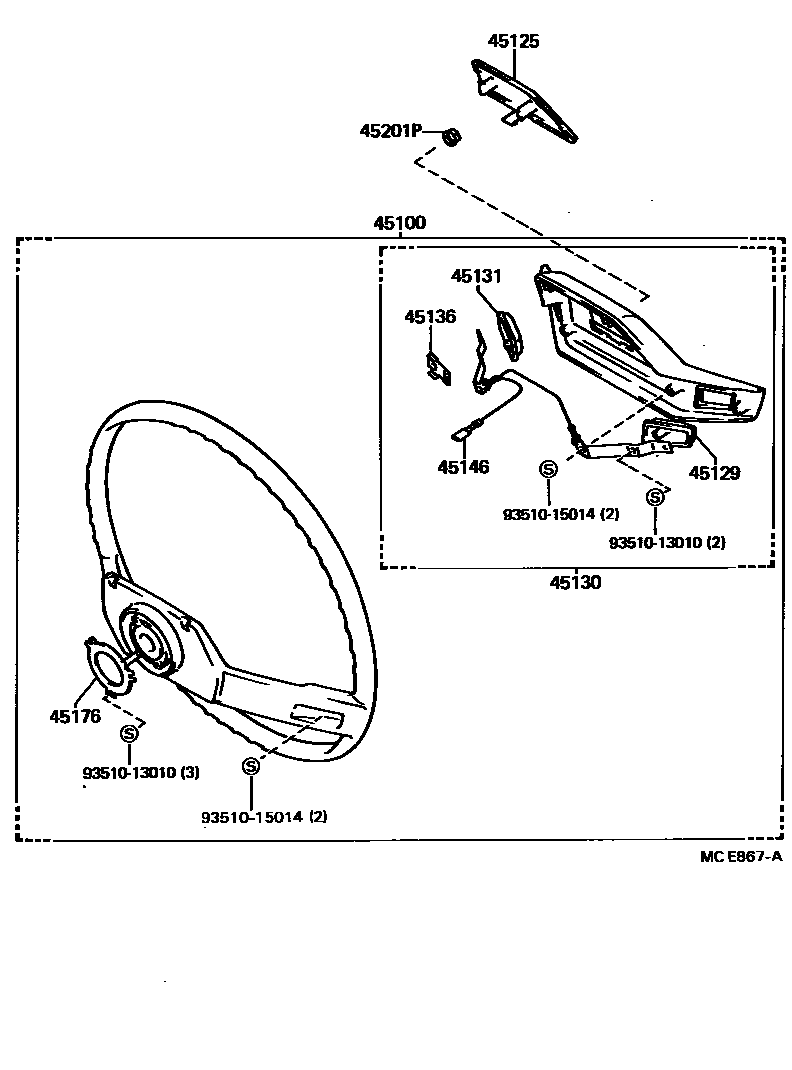

STEERING WHEEL

0001 1 0002 1 0003 1W(POWER STEERING)

45100WHEEL ASSY, STEERING

main45100-22150-06iLH51,61,YH51,61198708-198908

2-SPOKE,URETHANE,W(POWER STEERING),BROWN,TRIM4#

sub45100-22151

sub45100-22150

main45100-26090-16iLH5#,6#,YH5#,6#198708-198908

2-SPOKE,URETHANE,URETHANE,OD=410,BROWN,TRIM4#

sub45100-26090

main45100-26121-06iLH5#,6#,YH5#,6#198708-198908

2SPOKE,POLYPROPYLENE,BROWN,TRIM4#

sub45100-26121

45125MARK, STEERING WHEEL PAD

main45125-26060-06iLH5#,6#,YH5#,6#198708-198908

BROWN,TRIM4#

sub45125-26060

main45125-26090-04iYH51..U198710-198908

BLUE,TRIM8#

sub45125-26090

main45125-26090-06iLH51,61,YH51,61198708-198908

W(POWER STEERING),BROWN,TRIM4#

sub45125-26090

45129BUTTON, HORN, NO.2

main45131-26050iLH5#,6#,YH5#,6#198708-198908

45130BUTTON ASSY, HORN

main45130-26070-16iLH5#,6#,YH5#,6#198708-198908

URETHANE,OD=410,BROWN,TRIM4#

sub45130-26070

main45130-26110-06iLH5#,6#,YH5#,6#198708-198908

BROWN,TRIM4#

sub45130-26110

main45130-26120-04iYH51..U198710-198908

BLUE,TRIM8#

sub45130-26120

main45130-26120-06iLH51,61,YH51,61198708-198908

W(POWER STEERING),BROWN,TRIM4#

sub45130-26120

45131BUTTON, HORN, NO.1

main45131-26050iLH5#,6#,YH5#,6#198708-198908

45136PLATE, HORN BUTTON CONTACT

main45136-26020iLH5#,6#,YH5#,6#198708-198908

45146SPRING, HORN BUTTON CONTACT

main45146-26030iLH5#,6#,YH5#,6#198708-198908

45176RING, HORN CONTACT

main45176-14050iLH51,61,YH51,61198708-198908

W(POWER STEERING)

main45176-20030iLH5#,6#,YH5#,6#198708-198908

URETHANE,OD=410

main45176-30070iLH5#,6#,YH5#,6#198708-198908

45201PNUT, STEERING WHEEL SET

main90179-12086iLH5#,6#,YH5#,6#198708-198908

9351013010

main93510-13010

9351015014

main93510-15014

11 parts on this diagram · 3 diagrams in section
