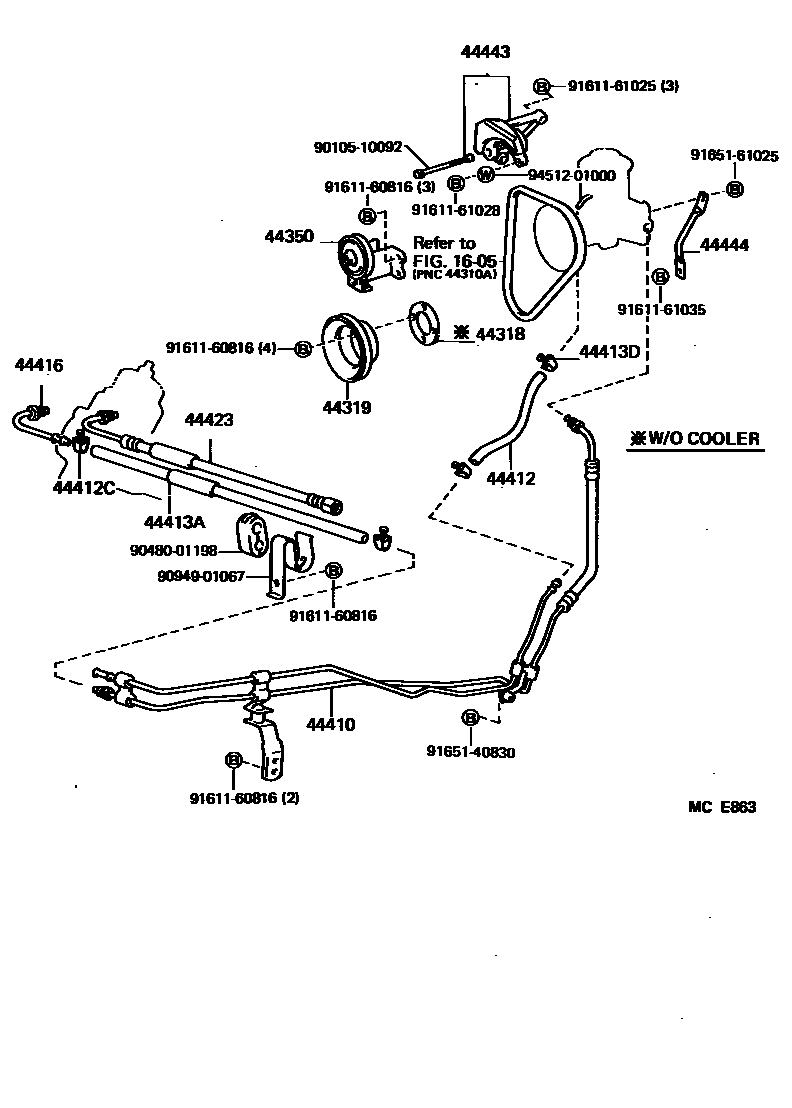

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYH56,66198708-198908

44319PULLEY, VANE PUMP DRIVE

main44319-28013iYH56,66198708-198908

main44319-30030iLH51,61198708-198908

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYH56,66198708-198908

44410TUBE ASSY, PRESSURE FEED

main44410-26090iYH56,66198708-198908

main44410-26100iLH56,66198708-198908

main44410-26110iLH51,61..LHD198708-198908

main44410-26130iYH51,61..LHD198708-198908

main44410-26150iYH51,61..RHD198708-198908

main44410-26160iLH51,61..RHD198708-198908

44412HOSE, RETURN

main44412-26010iYH51,61198708-198908

main90445-18079iLH51,61198708-198908

sub90445-18137

44412CCLAMP(FOR RETURN HOSE)

main90460-01001iLH56,66,YH56,66198708-198908

44413TUBE, PRESSURE FEED, NO.1

main44413-26040iLH56,66198708-198908

main44413-26050iYH56,66198708-198908

44413AHOSE(FOR RETURN TUBE OUTLET)

main90447-18010iYH51,61..RHD198708-198908

main90447-18011iLH51,61..RHD198708-198908

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001iLH51,61,YH51,61..RHD198708-198908

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26011iLH51,61,YH51,61..RHD198708-198908

main44416-26020iLH51,61,YH51,61..LHD198708-198908

main44416-26060iLH56,66,YH56,66198708-198908

44423TUBE, OIL PUMP TO GEAR BOX

main44423-26010iYH51,61..RHD198708-198908

main44423-26020iLH51,61..RHD198708-198908

main44423-26030iLH51,61,YH51,61..LHD198708-198908

44443BRACKET, PUMP

main44443-26010iLH51,61198708-198908

main44443-26020iLH56,66198708-198908

main44443-28021iYH56,66198708-198908

44444STAY, PUMP, REAR

main44444-27010iYH56,66198708-198908

9010510092

main90105-10092

9048001198

main90480-01198

9094901067

main90949-01067

9161160816

main91611-60816

9161161025

main91611-61025

9161161028

main91611-61028

9161161035

main91611-61035

9165140830

main91651-40830

9165161025

main91651-61025

9451201000

main94512-01000

24 parts on this diagram · 6 diagrams in section
