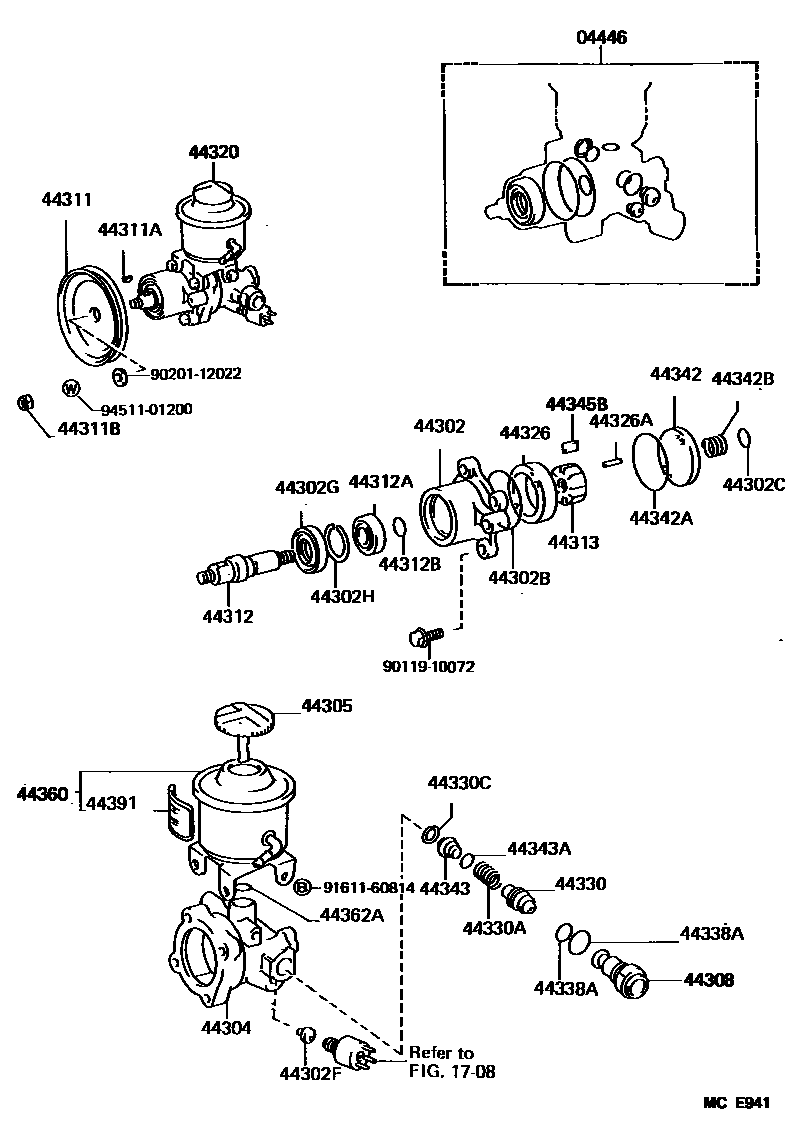

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-14010iYH56,66¥4,160198708-198908

sub04446-14040¥4,190

main04446-30030iLH51,61¥3,580198708-198908

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYH56,66¥15,500198708-198908

main44302-22020iLH51,61¥15,500198708-198908

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iLH56,66,YH56,66¥350198708-198908

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iLH56,66,YH56,66¥300198708-198908

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iYH56,66¥230198708-198908

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iLH56,66,YH56,66¥220198708-198908

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iLH56,66,YH56,66¥580198708-198908

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28012iYH56,66¥35,200198708-198908

main44304-30051iLH51,61¥35,200198708-198908

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iLH56,66,YH56,66¥1,950198708-198908

sub44305-22040¥1,940

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26011iLH56,66,YH56,66¥9,200198708-198908

44311PULLEY, VANE PUMP

main44311-12010iYH56,66¥7,600198708-198908

main44311-30040iLH51,61¥6,100198708-198908

44311AKEY, VANE PUMP PULLEY

main90280-05008iLH56,66,YH56,66¥220198708-198908

44311BNUT(FOR VANE PUMP PULLEY)

main90170-12011iLH56,66,YH56,66¥200198708-198908

44312SHAFT, VANE PUMP

main44312-12010iLH56,66,YH56,66¥3,340198708-198908

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iLH56,66,YH56,66¥1,240198708-198908

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iLH56,66,YH56,66¥240198708-198908

sub90520-15005¥80

44313ROTOR, VANE PUMP

main44313-12010iLH56,66,YH56,66¥7,900198708-198810

NO MARK

sub44313-22040¥7,700

main44313-12020iLH56,66,YH56,66¥7,900198708-198810

MARK 1

sub44313-22050¥7,700

main44313-12030iLH56,66,YH56,66¥7,900198708-198810

MARK 2

sub44313-22060¥7,700

main44313-12040iLH56,66,YH56,66¥7,900198708-198810

MARK 3

sub44313-22070¥7,700

main44313-12050iLH56,66,YH56,66¥7,900198708-198810

MARK 4

sub44313-22080¥7,700

main44313-22040iLH56,66,YH56,66¥7,700198810-198908

NO MARK

main44313-22050iLH56,66,YH56,66¥7,700198810-198908

MARK 1

main44313-22060iLH56,66,YH56,66¥7,700198810-198908

MARK 2

main44313-22070iLH56,66,YH56,66¥7,700198810-198908

MARK 3

main44313-22080iLH56,66,YH56,66¥7,700198810-198908

MARK 4

44320PUMP ASSY, VANE

main44320-26011iYH56,66¥82,300198708-198908

main44320-26040iLH51,61¥82,700198708-198908

main44320-26050iLH56,66¥82,400198708-198908

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLH56,66,YH56,66¥8,700198708-198908

NO MARK

main44325-12020iLH56,66,YH56,66¥8,700198708-198908

MARK 1

main44325-12030iLH56,66,YH56,66¥8,700198708-198908

MARK 2

main44325-12040iLH56,66,YH56,66¥8,700198708-198908

MARK 3

main44325-12050iLH56,66,YH56,66¥8,700198708-198908

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iLH56,66,YH56,66¥240198708-198908

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-12130iLH51,61¥8,100198708-198908

MARK A

sub44330-12131¥8,600

main44330-12140iLH51,61¥8,100198708-198908

MARK B

sub44330-12141¥8,600

main44330-12150iLH51,61¥8,100198708-198908

MARK C

sub44330-12151¥8,600

main44330-12160iLH51,61¥8,100198708-198908

MARK D

sub44330-12161¥8,600

main44330-12170iLH51,61¥8,100198708-198908

MARK E

sub44330-12171¥8,600

main44330-12180iLH51,61¥8,100198708-198908

MARK F

sub44330-12181¥8,600

main44330-14010iYH56,66¥7,900198708-198908

MARK A

sub44330-20010¥8,600

main44330-14020iYH56,66¥7,900198708-198908

MARK B

sub44330-20020¥8,600

main44330-14030iYH56,66¥7,900198708-198908

MARK C

sub44330-20030¥8,600

main44330-14040iYH56,66¥7,900198708-198908

MARK D

sub44330-20040¥8,600

main44330-14050iYH56,66¥7,900198708-198908

MARK E

sub44330-20050¥8,600

main44330-14060iYH56,66¥7,900198708-198908

MARK F

sub44330-20060¥8,600

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iLH56,66,YH56,66¥160198708-198908

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLH56,66,YH56,66¥260198708-198908

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iLH56,66,YH56,66¥590198708-198908

OD=25.5,ID=22.5,OD=25.5,ID=22.5

main96711-19014iLH56,66,YH56,66¥210198708-198908

OD=17.0,ID=13.0,OD=17.6,ID=13.8

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLH56,66,YH56,66¥6,800198708-198908

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iLH56,66,YH56,66¥300198708-198908

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iLH56,66,YH56,66¥350198708-198908

44343SEAT, FLOW CONTROL SPRING

main44343-12010iLH51,61¥1,240198708-198908

main44343-12040iYH56,66¥670198708-198908

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iLH56,66,YH56,66¥210198708-198908

44345BPLATE, VANE PUMP

main44345-12010iLH56,66,YH56,66¥660198708-198908

L=14.997

main44345-12020iLH56,66,YH56,66¥660198708-198908

L=14.995

main44345-12030iLH56,66,YH56,66¥660198708-198908

L=14.993

main44345-12040iLH56,66,YH56,66¥660198708-198908

L=14.991

main44345-12050iLH56,66,YH56,66¥660198708-198908

L=14.989

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-26010iYH56,66¥10,100198708-198908

main44360-26011iLH51,61¥10,500198708-198908

W(POWER STEERING)

main44360-26040iLH56,66¥10,100198708-198908

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96711-19013iLH56,66,YH56,66¥240198708-198908

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-12010iLH51,61¥200198708-198908

main44391-14010iYH56,66¥240198708-198908

9011910072

main90119-10072¥160

9020112022

main90201-12022¥110

9161160814

main91611-60814¥100

9451101200

main94511-01200¥200
