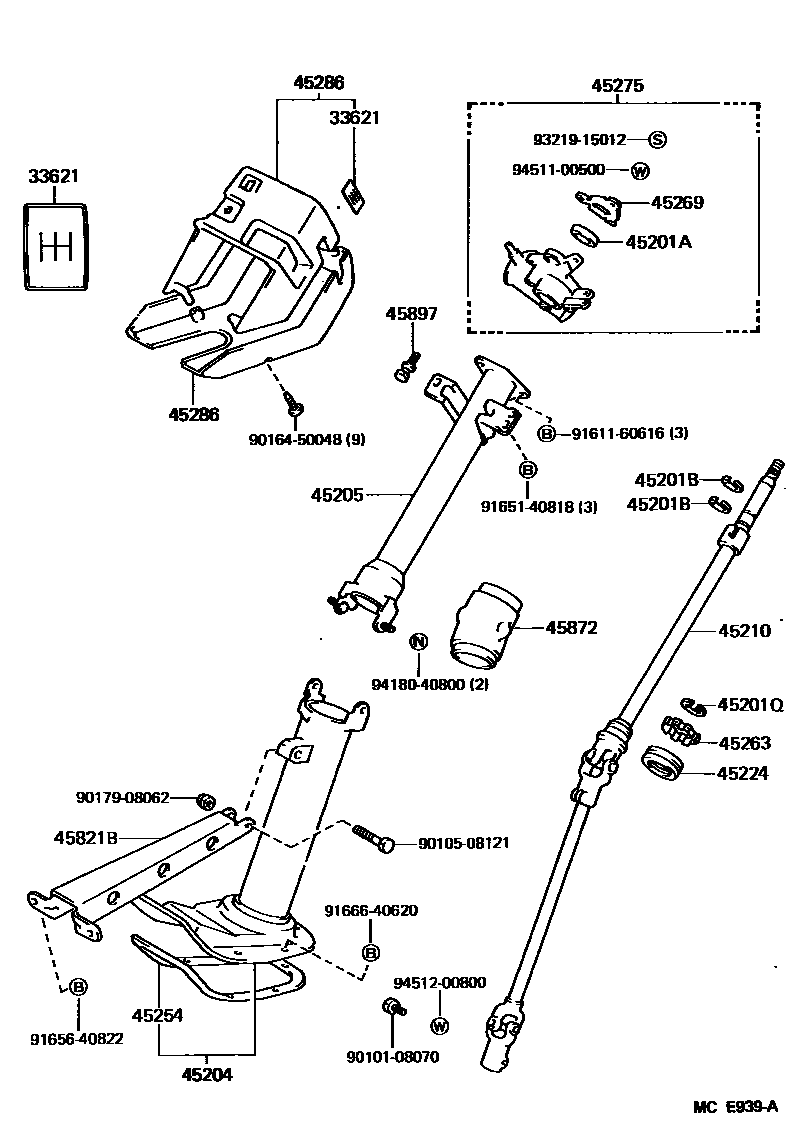

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iYH51,61..LHD..4H198708-198908

main33621-36020iLH51,61,YH61..RHD198708-198908

main33621-36030iLH51,61,YH51,61..LHD..5H198708-198908

main33621-36040iYH51..RHD198708-198908

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iLH5#,6#,YH5#,6#198708-198908

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLH5#,6#,YH5#,6#198708-198908

T=1.20

main90520-17269iLH5#,6#,YH5#,6#198708-198908

T=1.20

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iLH5#,6#,YH5#,6#198708-198908

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-26050iLH51,61,YH51,61..RHD198708-198908

main45204-26060iLH51,61,YH51,61..LHD198708-198908

main45204-26070iLH56,66,YH56,66198708-198908

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-26081iLH51,61,YH51,61..RHD198708-198908

main45205-26091iLH5#,6#,YH5#,6#..LHD198708-198908

45210SHAFT ASSY, STEERING MAIN

main45210-26010iLH51,61,YH51,61198708-198908

main45210-26020iLH51,61,YH51,61198708-198908

W(POWER STEERING)

main45210-26040iLH56,66,YH56,66198708-198908

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iLH5#,6#,YH5#,6#198708-198908

L=16

45254SHIELD, STEERING COLUMN HOLE

main45254-26050iLH5#,6#,YH5#,6#198708-198908

45263RING, STEERING COLUMN, NO.1

main45263-32010iLH5#,6#,YH5#,6#198708-198908

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iLH5#,6#,YH5#,6#198708-198908

45275BRACKET, STEERING COLUMN, UPPER

main45307-26081iLH51,61,YH51,61..RHD198708-198908

main45307-26091iLH5#,6#,YH5#,6#..LHD198708-198908

45286COVER, STEERING COLUMN

main45023-26161-06iYH51,61..LHD..4H198708-198908

BROWN,TRIM4#,UPR

main45023-26171-06iLH51,61,YH51,61..LHD..5H198708-198908

BROWN,TRIM4#,UPR

sub45023-26171

main45023-26202-06iYH51..RHD198708-198908

BROWN,TRIM4#,UPR

main45023-26212-06iLH51,61,YH61..RHD198708-198908

BROWN,TRIM4#,UPR

sub45023-26212

main45286-26171-06iLH51,61,YH51,61..4HC198708-198908

BROWN,TRIM4#,UPR

main45286-26201-06iLH56,66,YH56,66198708-198908

BROWN,TRIM4#,UPR

main45287-26091-16iLH51,61,YH51,61..RHD198708-198908

BROWN,TRIM4#,LWR

sub45287-26091

main45287-26100-04iYH51..U198710-198908

BLUE,TRIM8#,LWR

sub45287-26100

main45287-26100-06iLH5#,6#,YH5#,6#..LHD..V..(4HC,5F,5H)198708-198908

BR0WN,TRIM4#,LWR

sub45287-26100

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-26011iLH51,61,YH51,61..RHD198708-198908

main45821-26020iLH51,61,YH51,61..LHD198708-198908

45872COVER, STEERING COLUMN TUBE

main45872-26010iLH5#,6#,YH5#,6#198708-198908

45897BOLT, STEERING LOCK SET

main45897-12030iLH5#,6#,YH5#,6#198708-198908

9010108070

main90101-08070

9010508121

main90105-08121

9016450048

main90164-50048

9017908062

main90179-08062

9161160616

main91611-60616

9165140818

main91651-40818

9165640822

main91656-40822

9166640620

main91666-40620

9321915012

main93219-15012

9418040800

main94180-40800

9451100500

main94511-00500

9451200800

main94512-00800

28 parts on this diagram · 3 diagrams in section
