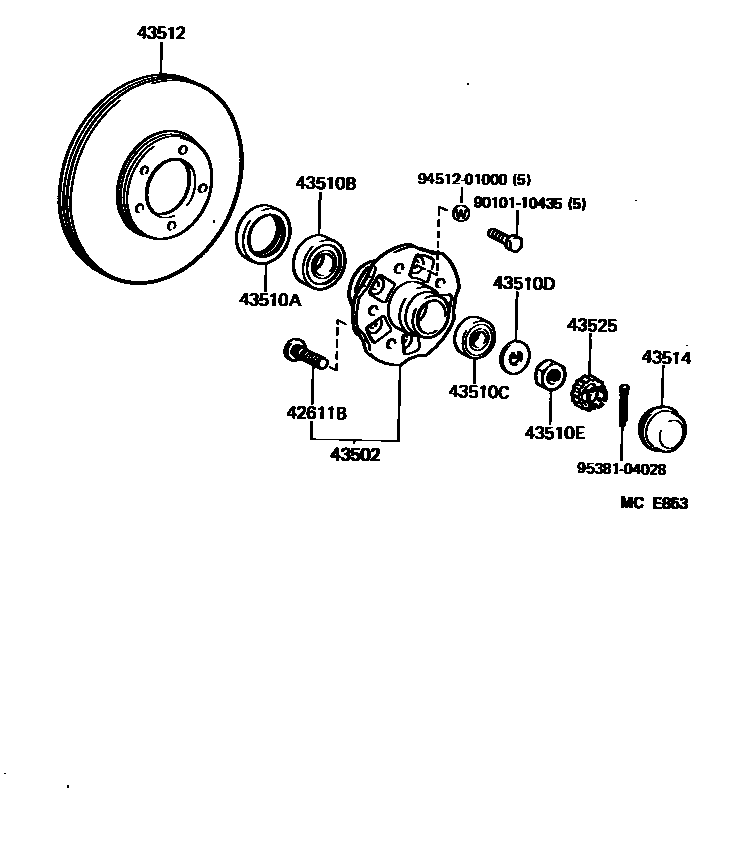

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iLH51,61,YH51,61198708-198908

main90942-02049iLH56,66,YH56,66198708-198908

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050iLH51..LHD..VSP;LH61..LHD..5H..03S;YH51..V4D..(4HC,5H)..03S198708-198908

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iYH61..U198708-198908

main90311-66001iLH56..02S198708-198908

sub90311-66003

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iYH51..LHD;LH51,61,YH61198708-198908

main90368-49084iLH56,66,YH56,66198708-198908

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iYH51..LHD;LH51,61,YH61198708-198908

main90368-45087iLH56,66,YH56,66198708-198908

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iYH51..LHD;LH51,61,YH61198708-198908

main90214-42030iLH56,66,YH56,66198708-198908

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLH51,61,YH51,61198708-198908

43512DISC, FRONT

main43512-26040iLH51,61,YH51,61198708-198803

sub43512-26070

main43512-26070iLH51,61,YH51,61198803-198908

sub43512-35180

main43512-26081iLH56,66,YH56,66198708-198908

main43512-26081iLH56..02S198806-198808

DENMARK SPEC

43514CAP, FRONT HUB GREASE

main43514-35010iYH51..LHD;LH51,61,YH61198708-198908

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iYH51..LHD;LH51,61,YH61198708-198908

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

13 parts on this diagram · 2 diagrams in section
