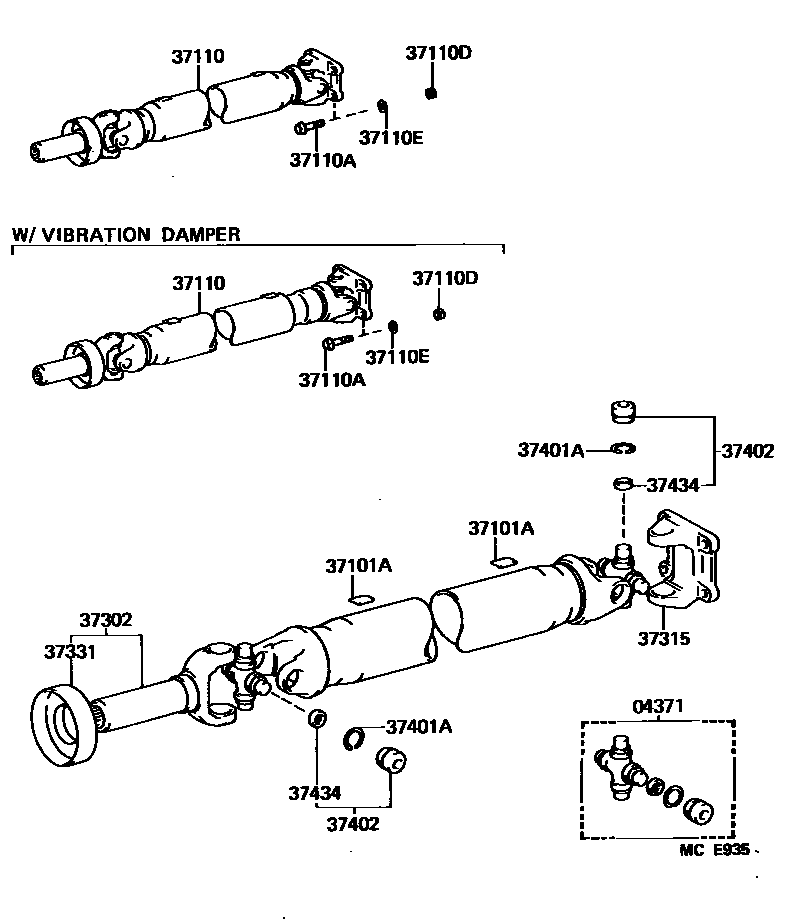

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7,RR
2G,T=2.0,RR
4G,T=2.0,RR
6G,L=12.4,RR
8G,L=16.6,RR
12G,L=24.9,RR
14G,L=29.0,RR
4G,T=1.6,RR,SLEEVE YOKE
8G,T=1.6,RR,SLEEVE YOKE
12G,T=4.5,RR,SLEEVE YOKE
16G,T=4.5,RR,SLEEVE YOKE
20G,T=4.5,RR,SLEEVE YOKE
2G,FR
4G,FR
6G,FR
8G,FR
10G,FR
12G,FR
24G,T=2.0,FR
26G,T=2.0,FR
28G,T=2.0,FR
30G,T=2.0,FR
37110SHAFT ASSY, PROPELLER
W(VIBRATION DAMPER)
W(VIBRATION DAMPER)
W(VIBRATION DAMPER)
W(VIBRATION DAMPER)
37110ABOLT (FOR PROPELLER SHAFT)
*10-1.00PX27-13
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
sub90560-10H00
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
RR
FR
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.125,MARK 1
T=2.175,MARK 2
T=2.225,MARK 3
T=2.275,MARK 4
T=2.325,MARK 5
T=2.375,MARK 6
T=2.425,MARK 7
T=2.475,MARK 8
T=1.50,OD=32.4
T=1.55
T=1.60
T=2.375-2.425
T=2.425-2.475
T=2.475-2.525
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37434SEAL, UNIVERSAL JOINT SPIDER BEARING
12 parts on this diagram · 2 diagrams in section
