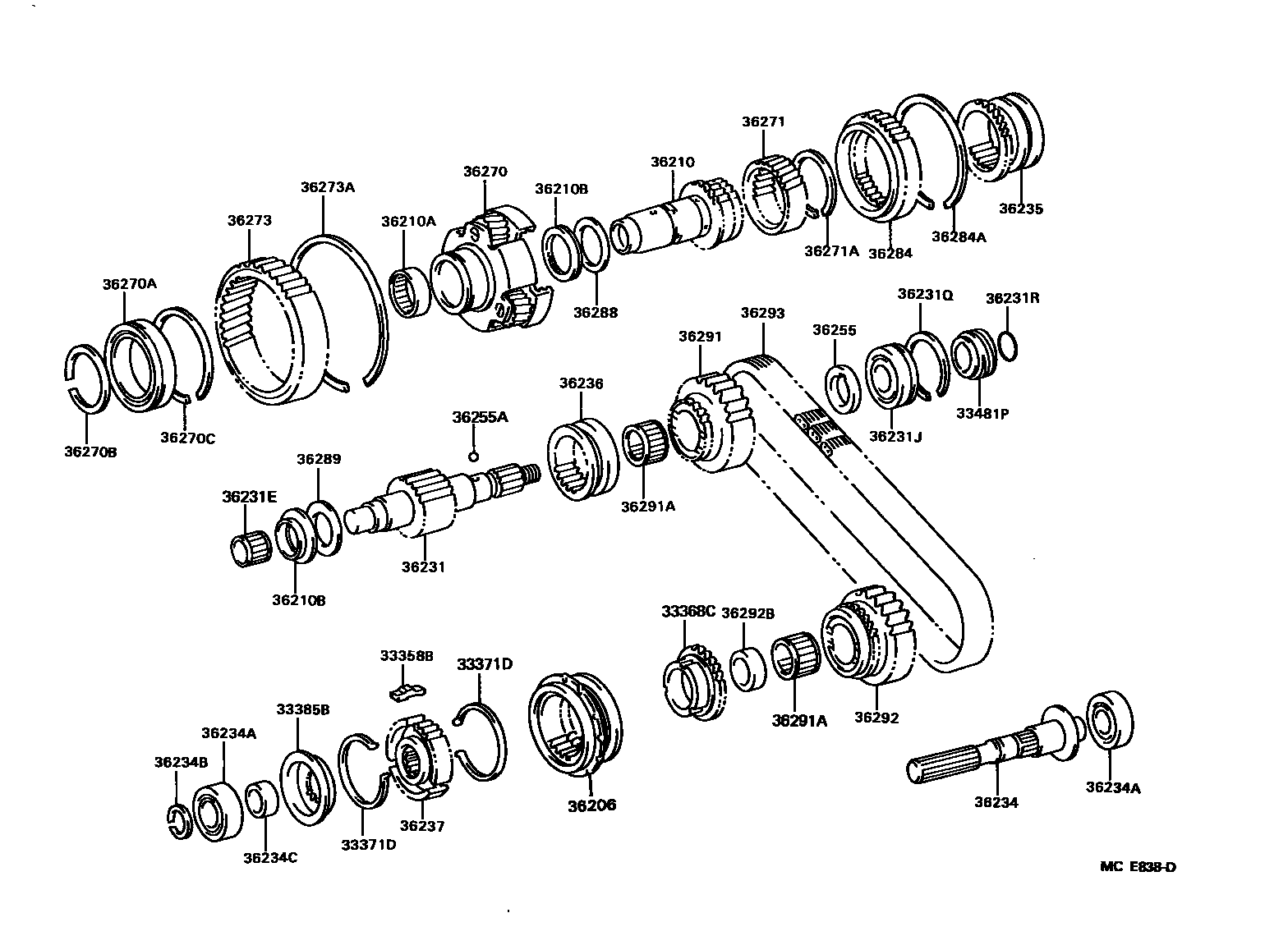

TRANSFER GEAR
33358BKEY, SYNCHROMESH SHIFTING (FOR TRANSFER FR DRIVE CLUTCH)
33368CRING, SYNCHRONIZER, NO.2 (FOR TRANSFER)
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
33385BRETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=6,MARK 1
N=6,MARK 2
N=6,MARK 1
N=6,MARK 2
36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH
sub36238-28010
36210SHAFT ASSY, TRANSFER INPUT
36210ABEARING (FOR TRANSFER INPUT SHAFT)
sub90364-47013
36210BBEARING, THRUST (FOR TRANSFER INPUT SHAFT)
RR
FR
36231SHAFT, TRANSFER OUTPUT, REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231QRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR BEARING)
36231RRING, O (FOR TRANSFER OUTPUT SHAFT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
RR
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK 10
T=2.45,MARK 11
T=2.50,MARK 12
36234CSPACER (FOR TRANSFER OUTPUT FRONT SHAFT)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
sub36255-35020
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
T=1.45,MARK 1
T=1.50,MARK 2
T=1.55,MARK 3
T=1.60,MARK 4
T=1.65,MARK 5
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36271GEAR, TRANSFER LOW PLANETARY SUN
36271ARING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY SUN GEAR)
36273GEAR, TRANSFER LOW PLANETARY RING
sub36273-35030
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
sub90520-99078
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36288RACE, TRANSFER THRUST BEARING, NO.1
36289RACE, TRANSFER THRUST BEARING, NO.2
36291SPROCKET, TRANSFER DRIVE
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36292BSPACER (FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
40 parts on this diagram · 1 diagram in section
