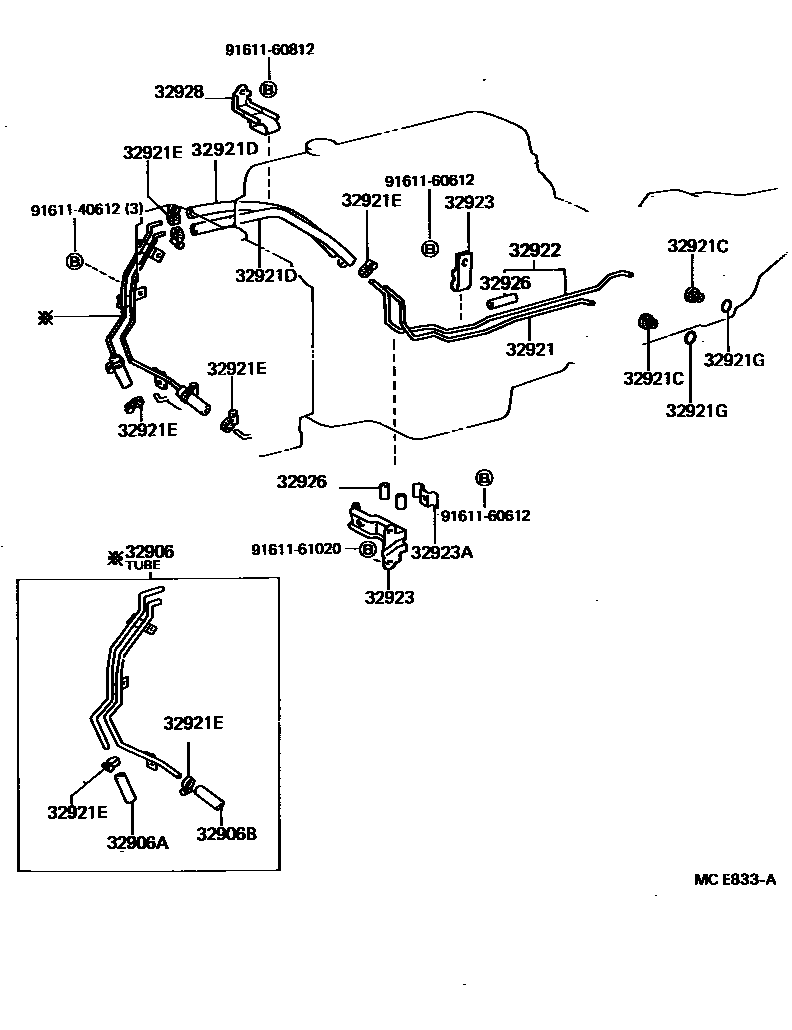

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32906TUBE SUB-ASSY, OIL COOLER

main32906-26030iLH51,61,YH51,61..4HC198708-198908

32906AHOSE, OIL COOLER TUBE(FOR INLET)

main90445-16029iLH51,61,YH51,61..4HC198708-198908

32906BHOSE, OIL COOLER TUBE(FOR OUTLET)

main90445-16029iLH51,61,YH51,61..4HC198708-198908

32921TUBE, OIL COOLER INLET, NO.1

main32921-26040iYH51,61..4HC198708-198710

sub32921-26041

main32921-26041iYH51,61..4HC198710-198908

main32921-26070iLH51,61..4HC198708-198908

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iLH51,61..4HC198708-198908

FR

main90407-16010iYH51,61..4HC198708-198908

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-26030iYH51,61..4HC198708-198908

main90445-16035iLH51,61..4HC198708-198908

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iLH51,61,YH51,61..4HC198708-198908

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iLH51,61,YH51,61..4HC198708-198908

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-26040iYH51,61..4HC198708-198710

sub32922-26041

main32922-26041iYH51,61..4HC198710-198908

main32922-26070iLH51,61..4HC198708-198908

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-26020iYH51,61..4HC198708-198908

ENGINE SIDE

main32923-26040iLH51,61..4HC198708-198908

main90461-08628iYH51,61..4HC198708-198908

HOUSING SIDE

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12044iYH51,61..4HC198708-198908

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iYH51,61..4HC198708-198908

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-26010iLH51,61..4HC198708-198908

main90949-01215iYH51,61..4HC198708-198908

9161140612

main91611-40612

9161160612

main91611-60612

9161160812

main91611-60812

9161161020

main91611-61020

17 parts on this diagram · 2 diagrams in section
