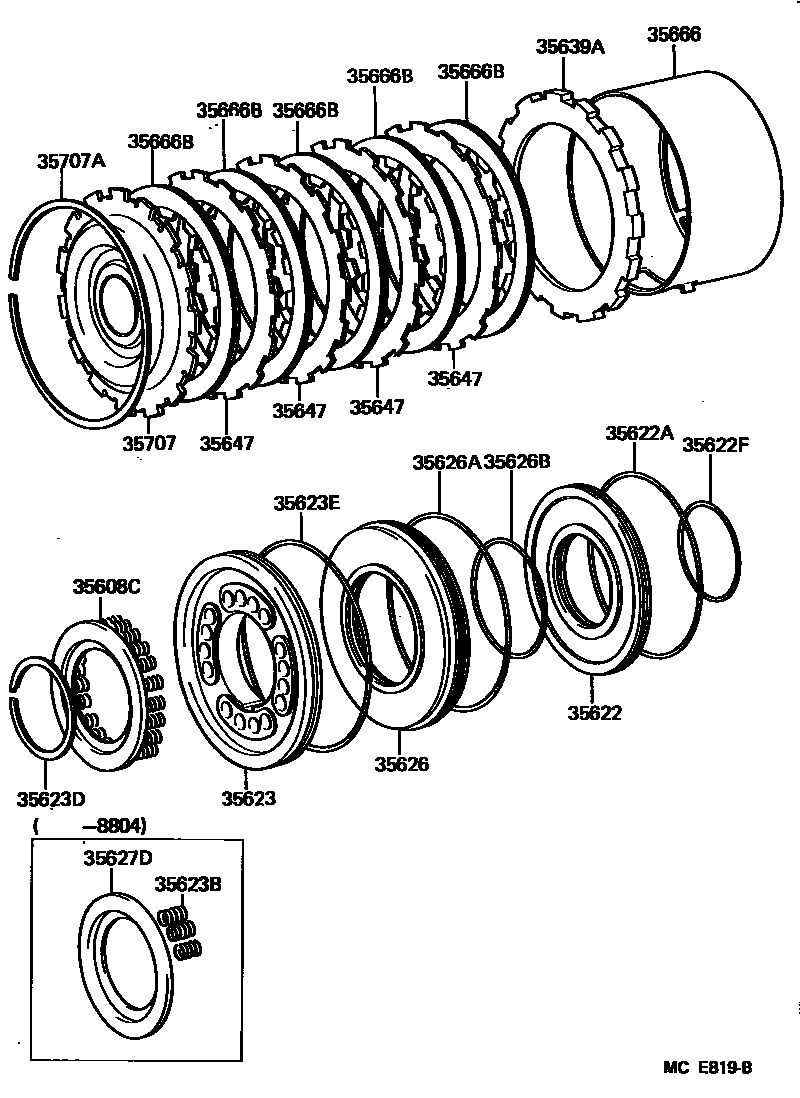

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iLH51,61,YH51,61..4HC198804-198908

35622PISTON, BRAKE, NO.2

main35622-22010iLH51,61,YH51,61..4HC198708-198908

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iLH51,61,YH51,61..4HC198708-198908

35622FRING (FOR BRAKE PISTON INNER)

main90301-57188iLH51,61,YH51,61..4HC198708-198908

35623PISTON, BRAKE, NO.3

main35623-22010iLH51,61,YH51,61..4HC198708-198908

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iLH51,61,YH51,61..4HC198708-198804

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iLH51,61,YH51,61..4HC198708-198908

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99192iLH51,61,YH51,61..4HC198708-198908

35626SLEEVE, BRAKE REACTION

main35626-22010iLH51,61,YH51,61..4HC198708-198908

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iLH51,61,YH51,61..4HC198708-198908

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iLH51,61,YH51,61..4HC198708-198908

sub90301-67005

35627DSEAT, BRAKE RETURN SPRING

main35627-22010iLH51,61,YH51,61..4HC198708-198804

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iLH51,61,YH51,61..4HC198708-198908

35647PLATE, CLUTCH, NO.2

main35647-22010iLH51,61,YH51,61..4HC198708-198908

35666TUBE, BRAKE APPLY

main35666-30010iLH51,61,YH51,61..4HC198708-198908

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050iLH51,61,YH51,61..4HC198708-198908

sub35633-30060

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30040iLH51,61,YH51,61..4HC198708-198908

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iLH51,61,YH51,61..4HC198708-198908

18 parts on this diagram · 1 diagram in section
