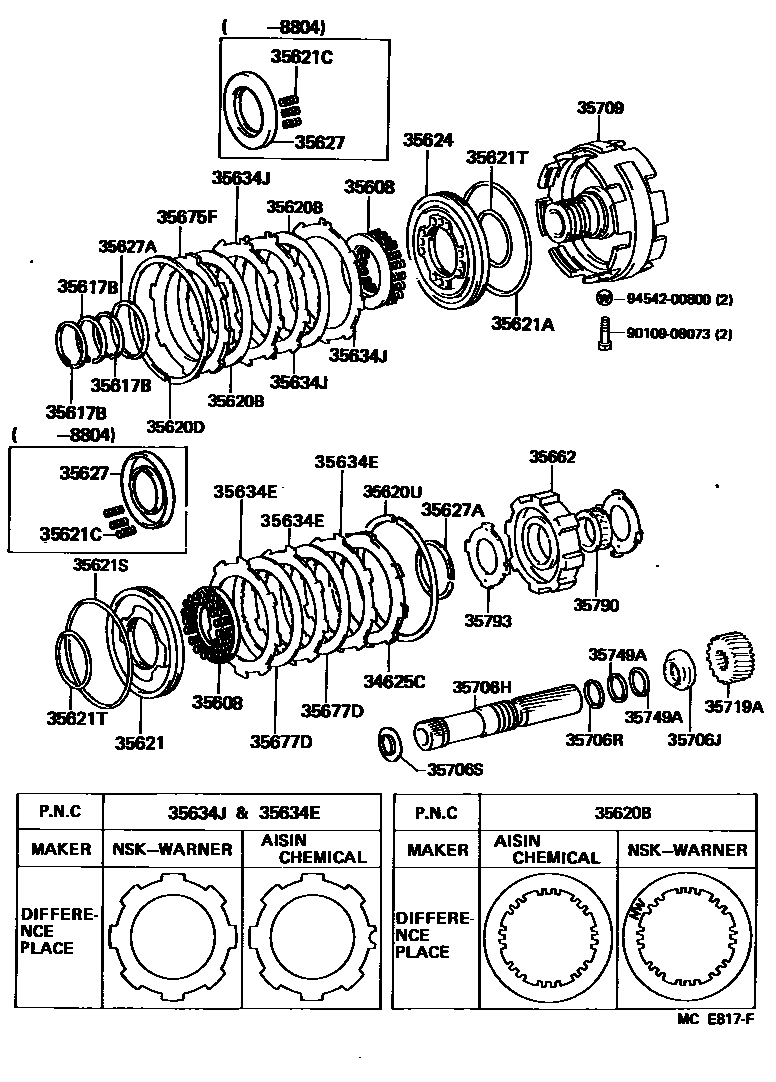

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
34625CFLANGE, OVERDRIVE BRAKE
sub35676-22030
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
FR
RR
35617BRING, CLUTCH DRUM OIL SEAL
35620BDISC, CLUTCH (FOR BRAKE)
35620DRING (FOR BRAKE)
35620URING (FOR REAR BRAKE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621CSPRING (FOR BRAKE PISTON RETURN)
35621SRING (FOR REAR BRAKE PISTON OUTER)
sub90301-99107
35621TRING (FOR REAR BRAKE PISTON INNER)
35624PISTON, 2ND BRAKE
35627SEAT, BRAKE RETURN SPRING
35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
35634EPLATE, CLUTCH (FOR BRAKE)
35634JPLATE, CLUTCH, NO.3
35662HUB, BRAKE
35675FFLANGE, CLUTCH (FOR BRAKE)
sub35675-22140
35677DDISC, CLUTCH (FOR REAR BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35709SUPPORT SUB-ASSY, CENTER
35719AGEAR, REAR PLANETARY SUN
35749ARING, SUN GEAR SHAFT OIL SEAL
35790CLUTCH ASSY, 1 WAY
35793RETAINER, 1 WAY CLUTCH
9010908073
main90109-08073
9454200800
main94542-00800
30 parts on this diagram · 1 diagram in section
