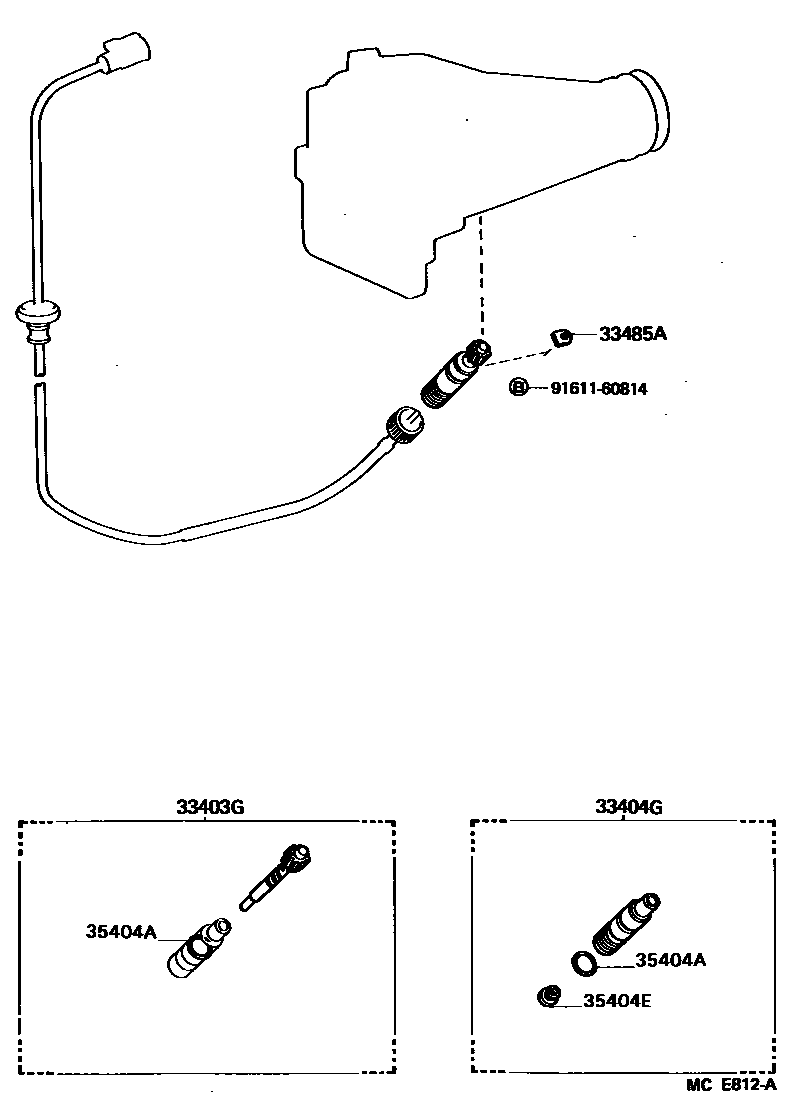

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29245iYH51,61..4HC198708-198908

N=19,MARK 19:5

main33403-39045iLH51,61..4HC198708-198908

N=17,MARK 17:4

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLH51,61,YH51,61..4HC198708-198908

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLH51,61,YH51,61..4HC198708-198908

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLH51,61,YH51,61..4HC198708-198908

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH51,61,YH51,61..4HC198708-198908

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
