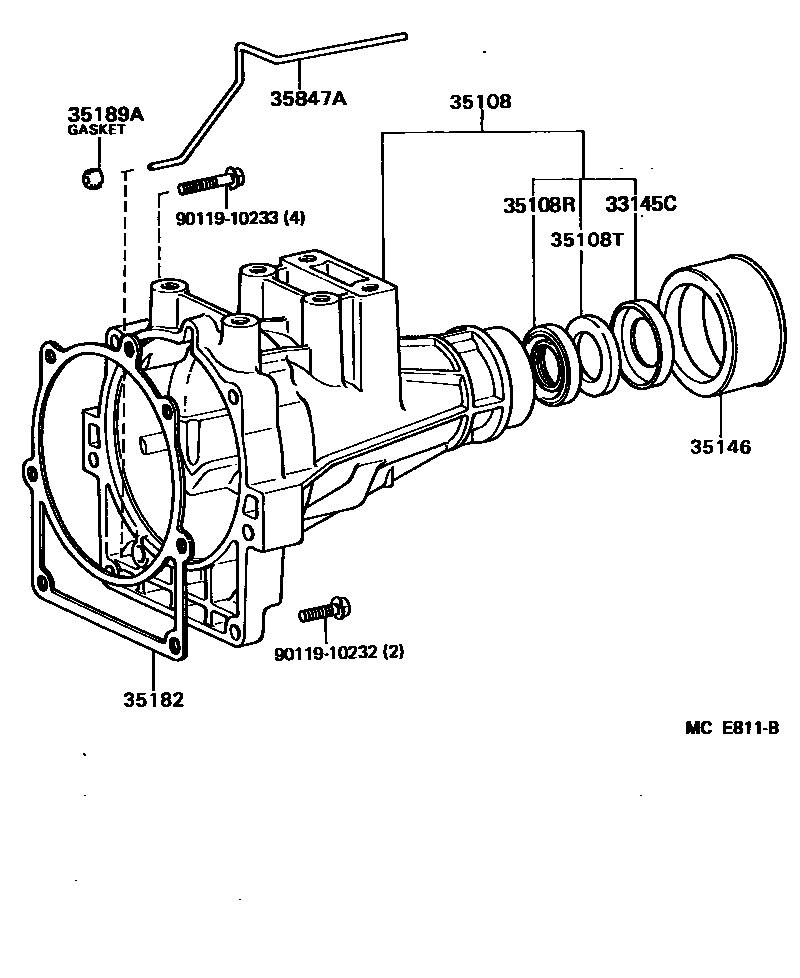

EXTENSION HOUSING (ATM)

33145CRETAINER,EXTENSION HOUSING DUST SEAL

main33145-30010iLH51,61,YH51,61..4HC198708-198908

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-26013iLH51,61,YH51,61..4HC198708-198807

main35108-26014iLH51,61,YH51,61..4HC198807-198908

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iLH51,61,YH51,61..4HC198804-198908

sub90311-38032

main90311-38040iLH51,61,YH51,61..4HC198708-198804

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iLH51,61,YH51,61..4HC198708-198908

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iLH51,61,YH51,61..4HC198708-198908

sub33146-30020

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iLH51,61,YH51,61..4HC198708-198908

sub35182-28010

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iLH51,61,YH51,61..4HC198708-198908

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iLH51,61,YH51,61..4HC198708-198908

9011910232

main90119-10232

9011910233

main90119-10233

10 parts on this diagram · 1 diagram in section
