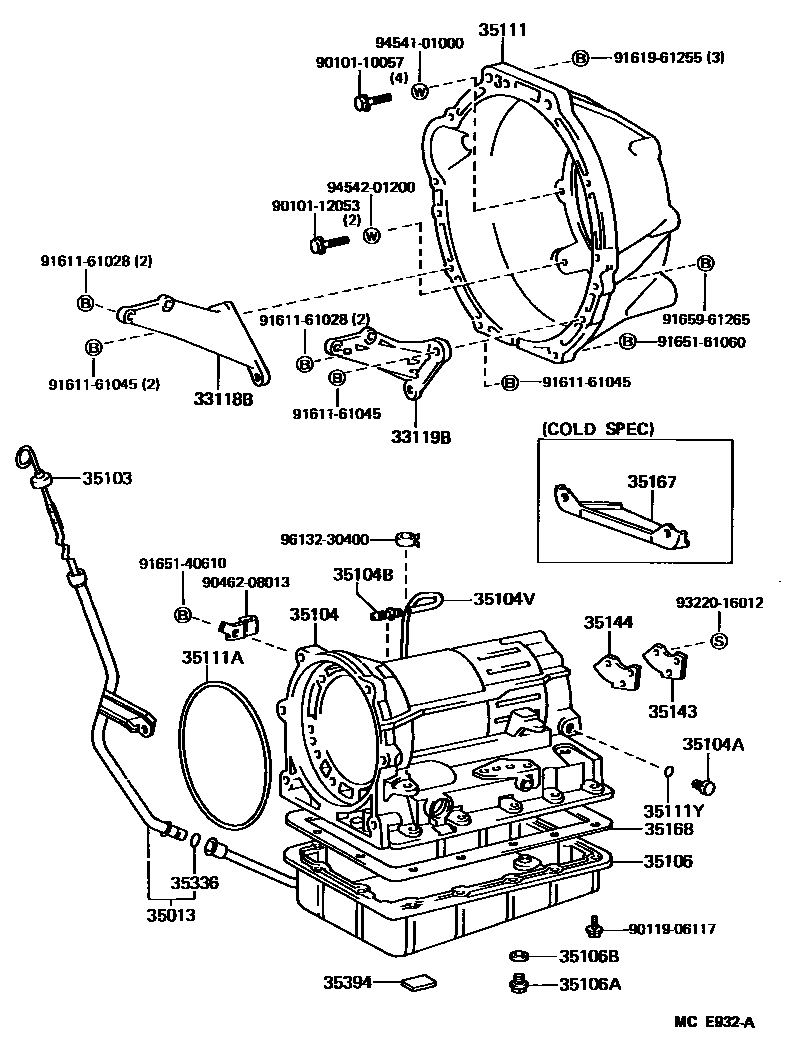

TRANSMISSION CASE & OIL PAN (ATM)
33118BPLATE, STIFFENER, RH(ATM)
33119BPLATE, STIFFENER, LH(ATM)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104APLUG, AUTOMATIC TRANSMISSION CASE
35104BPLUG, BREATHER, NO.1 (ATM)
T/M CASE SIDE
BODY SIDE
35104VHOSE (FOR BREATHER PLUG)
sub90445-11090
35106APLUG SUB-ASSY, DRAIN (ATM)
sub90341-10011
35106BGASKET, DRAIN PLUG (ATM)
35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35143COVER, TRANSMISSION CASE, REAR
35144GASKET, TRANSMISSION CASE REAR COVER
sub35144-28010
35167PROTECTOR, TRANSMISSION OIL PAL
COLD SPEC
35168GASKET, AUTOMATIC TRANSMISSION OIL PAN
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
9010110057
main90101-10057
9010112053
main90101-12053
9011906117
main90119-06117
9046208013
main90462-08013
9161161028
main91611-61028
9161161045
main91611-61045
9161961255
main91619-61255
9165140610
main91651-40610
9165161060
main91651-61060
9165961265
main91659-61265
9322016012
main93220-16012
9454101000
main94541-01000
9454201200
main94542-01200
9613230400
main96132-30400
34 parts on this diagram · 2 diagrams in section
